APPLENT AT4610 multi-channel temperature Recorder, simultaneously displaying temperature, Voltage, and resistance

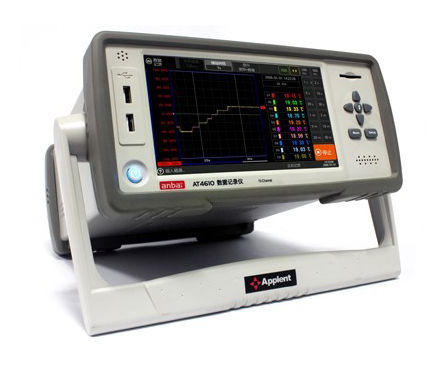

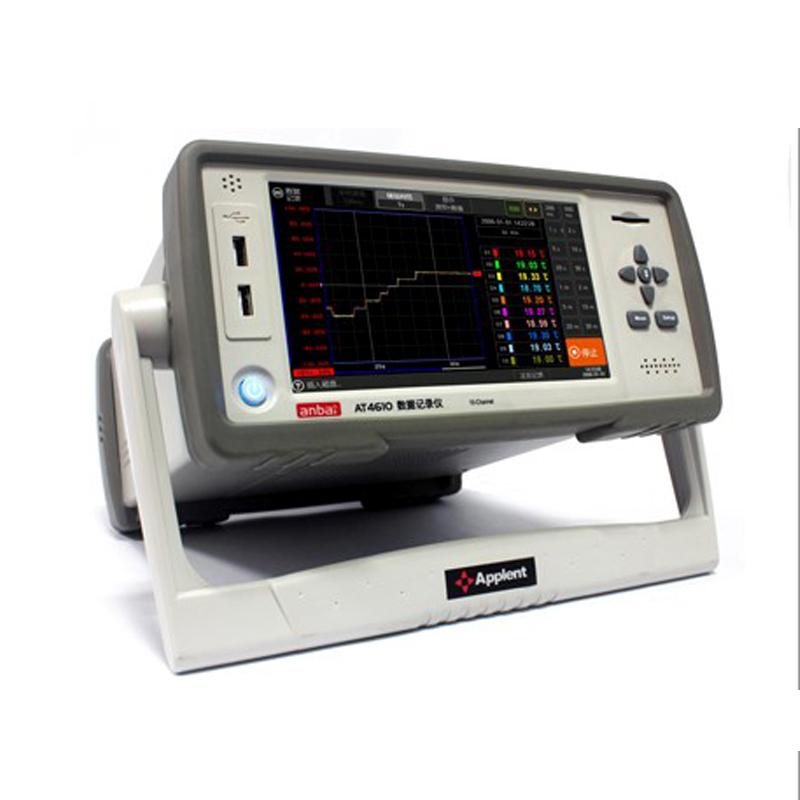

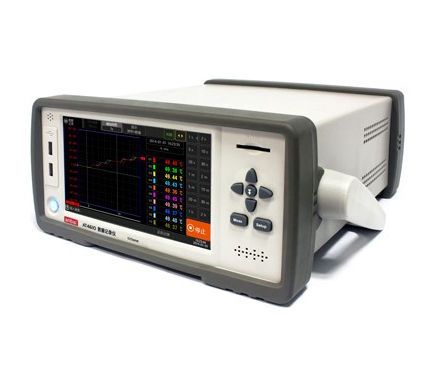

Introducing the AT4610 Multiplex Temperature Tester

The AMMG AT4610 multi-channel temperature logger is a miniature desktop instrument with high-performance ARM microprocessor and FPGA control for real-time high-speed data acquisition. The instrument adopts a 7-inch high-brightness true-color LCD screen, full touch with auxiliary function key operation, and uses the 7th version of the ATOS operating system, which is easier to use and smarter. Full Chinese operation interface and operating instructions, real-time display of measurement data and curve graphs, giving you a new instrument experience. The newly designed AT46 series data logger uses real-time FPGA circuitry, breaks through the sampling rate limit, and cooperates with effective and high-precision analog circuits to achieve high-precision and ultra-high-speed sampling, the test temperature resolution is increased to 0.01°C, the single-channel sampling rate is <1ms, and it only takes 10ms to complete the 10-channel test.

The AT4610 multi-channel data logger can test multi-channel signals at the same time, including temperature (-270°C~+2000°C), DC Voltage (0.0005mV~100V), resistance (1mΩ~200Ω), etc. The AT46X supports a wide range of temperature sensors, including thermocouple models: K, J, E, T, N, S, B, and R types, as well as RTD: 3-wire and 4-wire PT100.

At the same time, in order to be used in live occasions, the instrument adopts a high-Voltage isolation circuit, the main control unit and the interface unit can withstand 300VAC, and the maximum Voltage between the channels can be 300VDC.

AT4610 multiplex temperature loggerThere is a large 80MB data buffer for real-time data recording, which can store data for 5.5 hours at a rate of 10ms. The instrument supports 4 USB 2.0 host interfaces and 1 SD card interface, which can store real-time data or cached data into external memory.

AT4610 multiplex temperature loggerIt has a comparator function and can be equipped with an optional Handler (PLC) interface, which can output 10 channels of unqualified signals, and can directly drive power relays and signal relays.

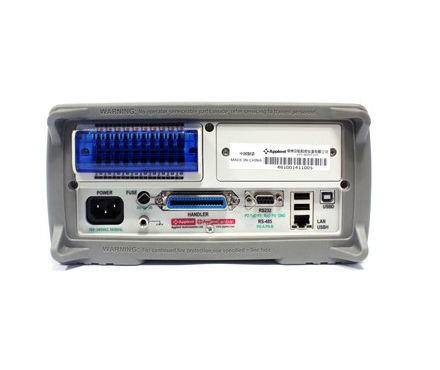

The instrument has built-in LAN interface, RS-232C interface and USB232 interface, and can also be equipped with RS485 interface and wireless network module, which can be used for remote control and data acquisition and analysis through the computer.

AT4610 multiplex temperature loggerAMMG Instrument is used to enhance the computer remote control instruction set, which is compatible with SCPI (Standard Command for Programmable Instrument) and effectively completes the remote control and data acquisition functions.

Performanceattack

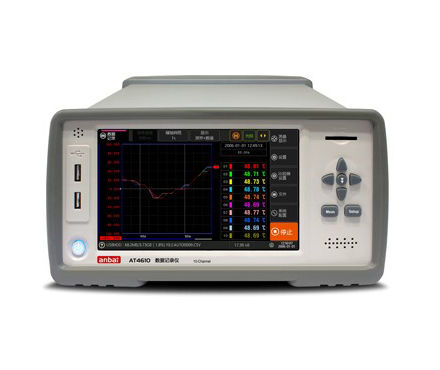

● 7-inch touch screen display, three display fonts

●High-speed sampling using real-time FPGA circuit

●Cold junction compensation: Multi-signal mixed sampling

●High Voltage isolation circuit is adopted

●Standard USB disk interface, support large-capacity storage devices.

●Standard RS232C interface and USB interface, SD card interface and LAN interface

●Built-in large-capacity data buffer, real-time data recording

●Automatic detection of broken couples

●AT4610 multiplex temperature loggerIt has a comparator function

●AT46 data acquisition software is standard

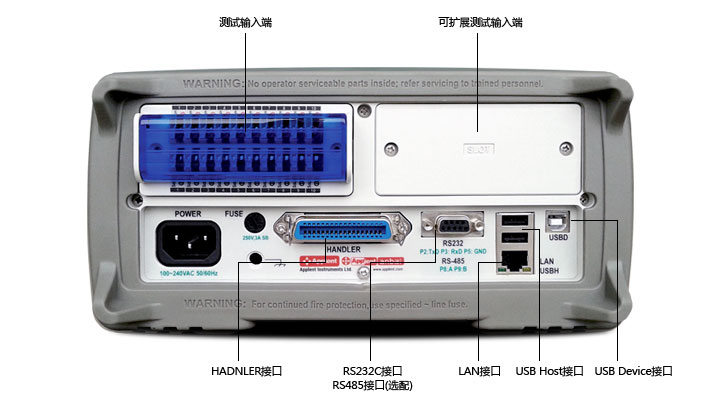

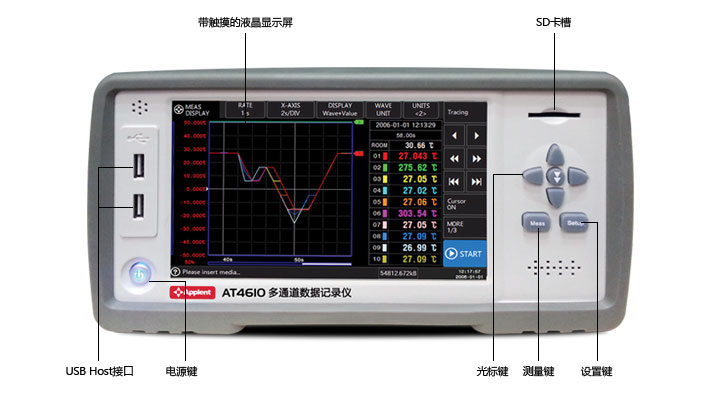

Structural diagram

Application

It is suitable for manufacturers and quality inspection departments of home appliances, motors, electric heating appliances, thermostats, transformers, ovens, thermal protectors, power supplies, lighting, electric power, LED and other industries to test multi-point temperature and fuel cells, electric vehicle batteries, lithium battery packs, lead-acid battery packs R & D and maintenance, LED and related circuit research and development, evaluation and testing of automobiles and their parts, daily maintenance of automation and other equipment, plant monitoring, measurement of electronic components such as power devices, etc.

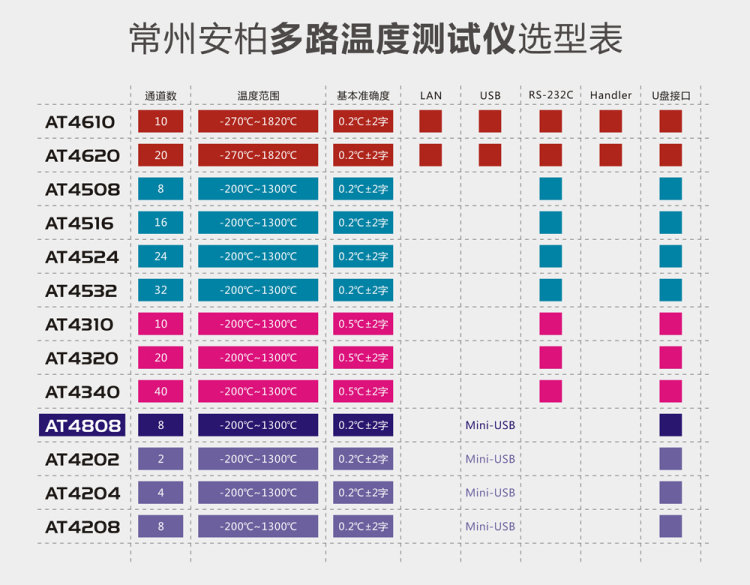

Amber Multi-way Temperature Tester Selection Table

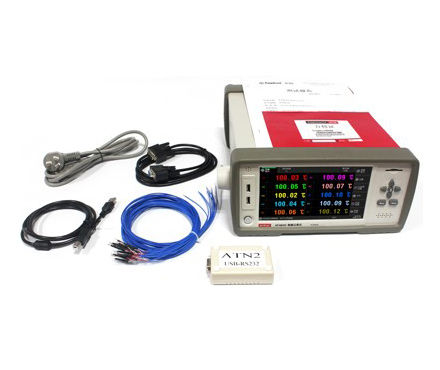

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
