KINGWELL JZ-300 general Colorimeter 8mm diameter, plastic, lame plating, Eletroplating, printing industry special

Introduction of JZ-300 universal Colorimeter

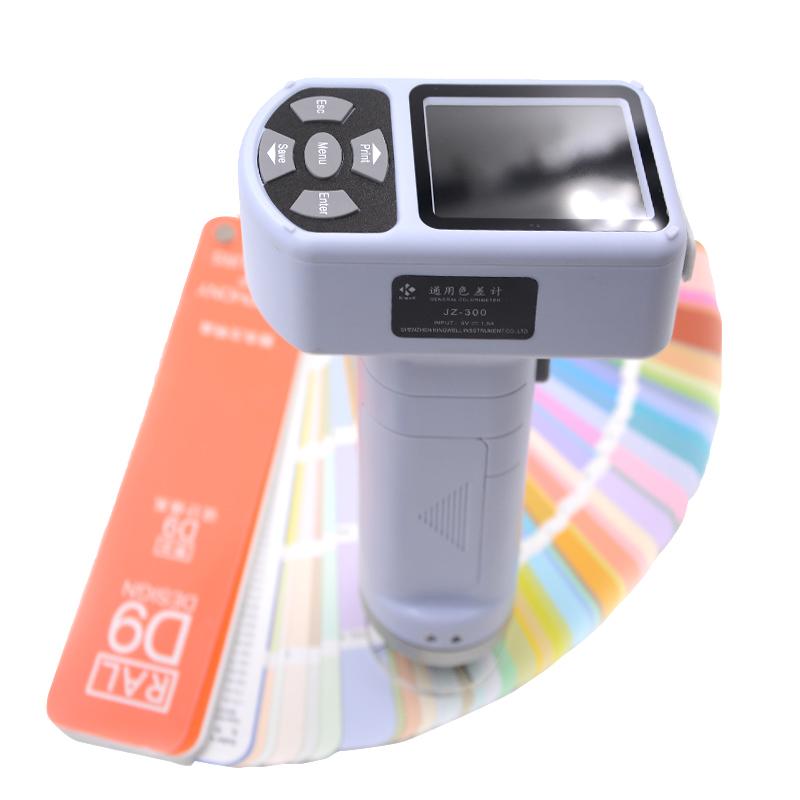

Kingwell JZ-300 universal Colorimeter is an economical and practical handheld Colorimeter, in strict accordance withColorimeter developed and designed by international CIE1931, 1976 and other relevant standards and relevant national standards.JZ-300 universal Colorimeter is light purple shell, T-shaped structure, large LCD screen, small size, easy to carry.JZ-300 universal Colorimeter is a 45/0 illumination and light receiving system, the measurement diameter is 8mm, with single and average measurement modes, the measurement is fast and simple.

Kingwell JZ-300 universal ColorimeterThe new imported LED light source and sensor are adopted, which has the characteristics of stability, durability and economy.

JZ-300 universal Colorimeter operation interface adopts menu-based operation, concise and easy to understand, which is a powerful assistant for color control of the quality department of various enterprises, and is also a powerful tool for school teaching, scientific research and color design.

Application

JZ-300 general Colorimeter is mainly used in plastics, spraying, design, printing, clothing, printing and dyeing industries. Chromatic contrast analysis and color quality control can be carried out.

Features of JZ-300 universal Colorimeter

○ The menu display and operation are simple and easy to understand, affordable and cost-effective

○ There are two modes in the color space: Lab and Lch, and you can switch between measurements freely

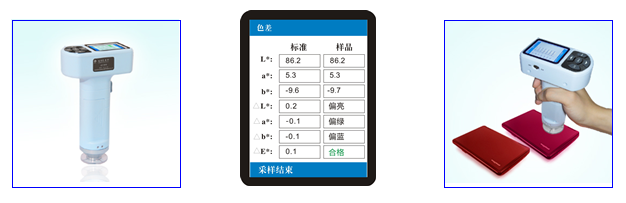

○ Clear color difference measurement interface, user-friendly automatic identification of color differences and biases

○ Practical average mode, even the surface with uneven surface color can be measured

○ Color quality software can analyze and communicate color charts and data

○ The external micro printer can output the color difference data instantly

Application of universal Colorimeter

● Color matching and quality control in the injection molding and production process.

● Chromatic aberration detection of printed matter and batch chromatic aberration control in the printing process.

● Chromatic analysis of surface treatment such as painting and electroplating.

● Difference in color difference in different areas of metalworking surface.

● Outdoor color difference quality inspection of batch products.

● On-line monitoring of product color difference in the production process

Universal Colorimeter color difference formula

Concentrate:

△ E* =[(△L*)2 +（△a*)2+(△b*)2 ]1/2

△ L* = L*Sample-L*Standard

△ a* = a* sample - a* standard

△ b* = b*sample - b* standard

△ E*: The magnitude of the total color difference

△ L+ indicates white, △L- indicates black

△ a+ indicates reddish and △a- indicates greenish

△ b+ indicates yellowish and △b- indicates blue

JZ-300 Colorimeter Instruction Manual Download:

Kingwell JZ-300 Colorimeter instruction manual .pdf

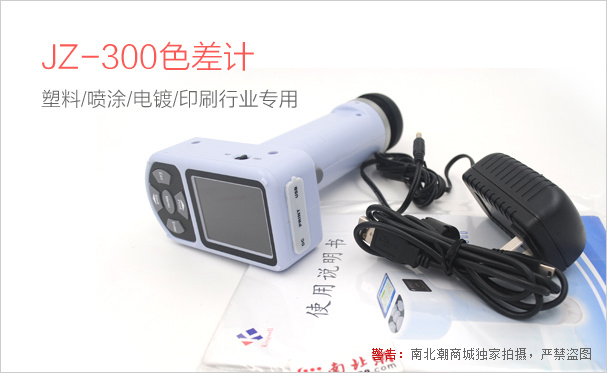

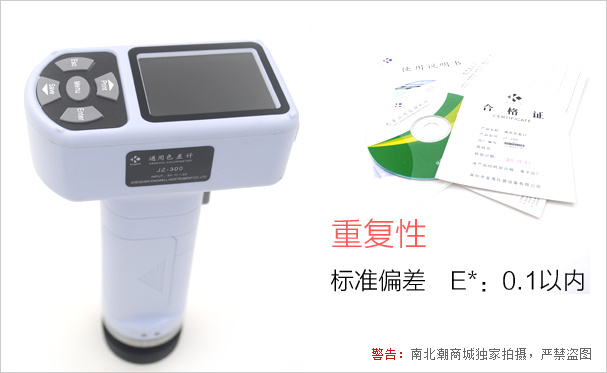

Host x1, protective cover x1, color difference quality management software x1, AC adapter x1, USB data cable x1, instrument case x1, certificate x1, instruction manual

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
