APPLENT AT4524 Multi-channel temperature Tester 24 Number of channels Support multiple Thermocouples
APPLENT AT4524 multi-channel temperature Tester adopts ARM microprocessor control, can support J/K/T/E/S/N/B Thermocouple, AT4524 multi-channel temperature Tester Temperature range is -200 ℃~ 1800 ℃, resolution is 0.1 ℃.
Applent
AT4524
-
HANNA HI93551N Single Channel Dual Range Wide Range Temperature Meter (with Adjustment)
$ 515.00 -
HANNA HI93510 Temperature Meter
$ 403.00 -
HANNA HI151-5 Thermometer, Brown, Vegetarian
$ 142.00 -
HANNA HI98539 Temperature Tester -20.0~80.0 ℃
$ 242.00 -
SMART SENSOR AR212 Infrared Thermometer Temperature range: 200~2500 ℃
$ 80.00
Introduction to the AT4524 Multiplex Temperature Tester
AMPLUS AT4524 multi-channel temperature Tester is an ARM microprocessor-controlled multi-channel temperature Tester, which samples multi-channel parallel testing, and simultaneously collects, alarms, and communicates 24-channel temperature transmission. Compatible with a variety of temperature sensors, fast response, stable data, and has the function of broken detection.
The sampling professional test principle makes the temperature test resolution to 0.1°C.
Similarly, the AT4524 has a wide range of adaptability and supports thermocouples type K/N/E/J/T/R/S/B. The test range is from -200°C~1800°C.
AT4524 adopts AMMG instrument operating system ATOS™v4 with independent property rights, which makes the operation of the test instrument simpler and more convenient, and relies on ATOS™v4 at the same time, the instrument can be well compatible with large-capacity memory and has strong PC communication capabilities, the instrument is equipped with RS-232 interface and USB interface as standard, and provides free communication through PC software can easily realize data acquisition, analysis and printing.
The AT4524 is housed in a rugged, vibration-resistant enclosure that can operate in harsh environments. Fully isolated digital and analog signals, AT4524 comes standard with a USB flash drive interface to support real-time data storage.
Performance characteristics
● TFT true color LCD display, three display fonts
● Fast, medium and slow three-level scanning speed
● Cold junction compensation
● Standard USB disk interface, supporting large-capacity storage devices
● Standard RS232C interface and USB interface
● Automatic detection of broken couples
● Designated channel scanning
● ATS45 data acquisition software is standard
Application
● It is suitable for multi-point temperature testing by manufacturers and quality inspection departments of home appliances, motors, electric heating appliances, thermostats, transformers, ovens, thermal protectors, power supplies, lighting, electric power, LEDs and other industries

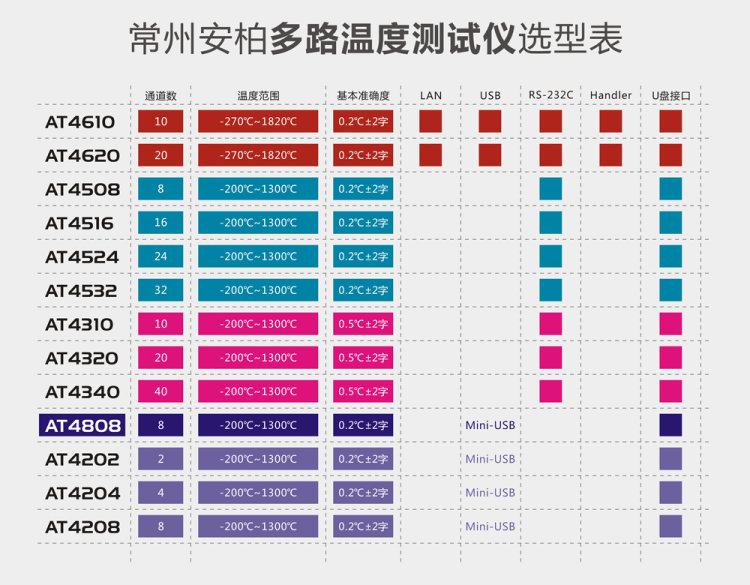

Amber Multi-way Temperature Tester Selection Table
Applent AT4524 Multichannel temperature TesterSpecifications
| LIST | VALUE |
|---|---|
| indexing mark | Thermocouple: J/K/T/E/S/N/B type |
| Basic Precision | 0.2 ℃ +/- 2 characters |
| Temperature Measurement Range | -200~1800℃ |
| resolution | 0.1℃ |
| Number of channels | 24 channel |
| Sampling rate | Fast: 100ms/channel, Medium speed: 500ms/channel, Slow speed: 1s/channel |
| correction | error correction per channel |
| comparator | Up and down super alarm, set up and down super value separately for each channel |
| Interface | RS232C interface U disk interface USB Communication interface |
| Standard software | ATS45 data collection software |
| cold junction compensation | Precision: 0.5 ℃ |
| other | TFT-LCD true color liquid crystal display, even detection function |
| Power Supply | Voltage: 85VAC~ 260VAC Frequency: 50Hz/60Hz Power: 10VA |
| Dimension | 216*88*300mm |
| Weight | 3kg |
Applent AT4524 Multichannel temperature Tester Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
