PUSHEN QHY Buchholz indentation Tester
Microhardness test, measuring the pressure resistance of coatings, not suitable for high elastic Coatings; in line with GB/T9275, ISO2815, DIN53153 standards.
Pushen
QHY
QHY Buckholz indentation Tester
For testing the pressure resistance of single or multiple coats, but not for highly elastic coatings.

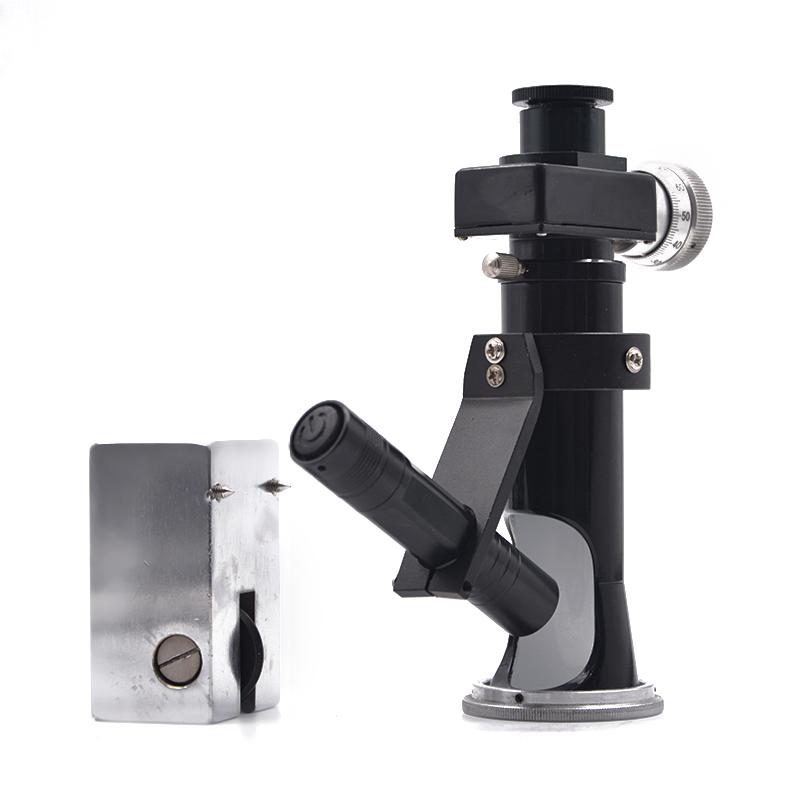

The Tester consists of a steel block with 2 pivots, a sharp-edged indentation disk and a 20x microscope with scale and light source
During the test, put the indenter on the coating surface for 30 seconds to obtain the indentation, and observe the length of the indentation with a microscope and a lighting flashlight.
The indentation length is inversely proportional to the hardness. The longer the indentation is, the lower the hardness is. According to the indentation length comparison table, the coating pressure resistance can be obtained.
Standards
GB/T 9275 Paints and varnishes, Buckholz indentation test
ISO 2815
DIN 53153
Pushen QHY Buchholz indentation TesterSpecifications
| LIST | VALUE |
|---|---|
| Indentation load | 500g |
| Indentation knife diameter | 30mm |
| Indentation reading Accuracy | 0.1mm |
| Microscope | × 20 times |
| Standards | GB/T9275,ISO2815 |
| Overall Dimensions | 200×80×50mm |
| Shipment Weight | 2kg |
Pushen QHY Buchholz indentation Tester Packing list
Steel block X1 (with indentation disc), Microscope X1 (with scale and lighting 20 times), instruction manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
