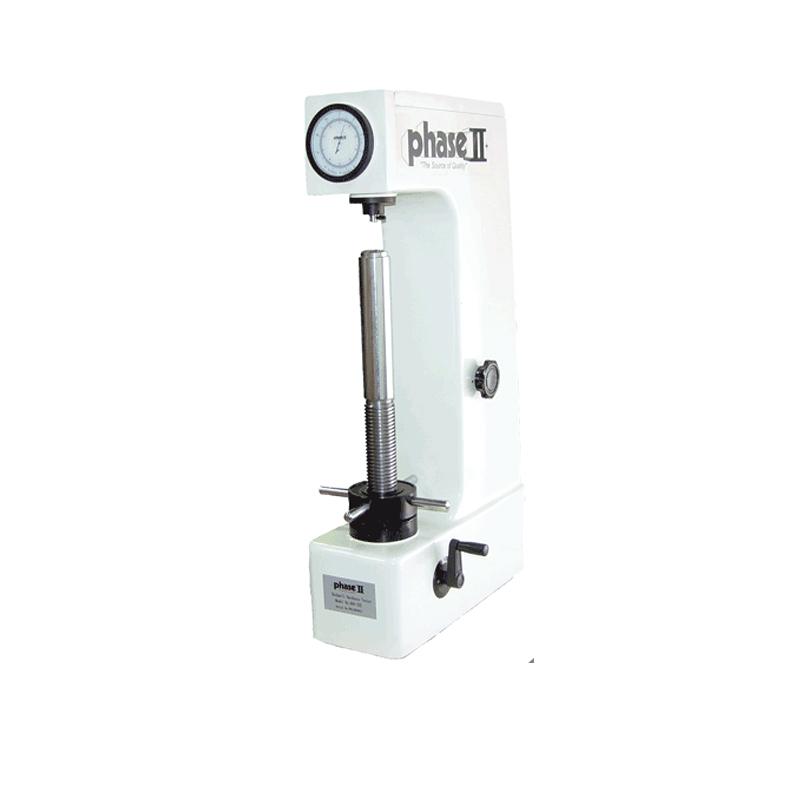

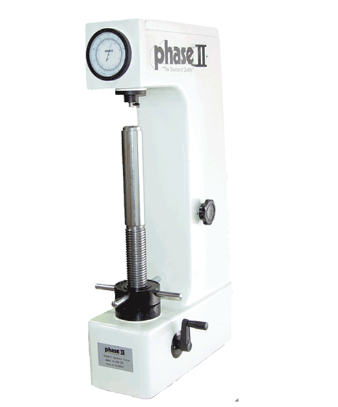

USA PHASE II 900-332 Desktop High Stroke Rockwell Hardness Tester

The Rockwell Hardness Tester model 900-332 is easy to operate and provides highly sensitive and accurate measurement results. Following the ASTM E-18 Rockwell standard, the 900-332 Rockwell Hardness Tester provides excellent repeatability in all standard Rockwell measurements (see table below). This instrument is suitable for use in any environment, including: heat treatment equipment, tool magazines, workshops, and testing laboratories.

Features

• The maximum height of the specimen can be measured is 400mm

• Direct reading from the dial

• The design is professional and the operation is simple

• The indication value is stable and the accuracy is high

annex

• Diamond indenters used in Rockwell C hardness

• 1.5875mm diameter steel ball indenter

• 3 Rockwell C standard hardness test blocks

• 1 Rockwell B standard hardness test block

• 1 Rockwell A standard hardness test block

• 150 mm diameter flat sample stage

• 63 mm diameter flat sample stage

• Standard V-shaped stage

• Accessory box

Optional

• Blocks, indenters and block sets with NIST/ASTM calibration certificates

• Implements the American standard ASTM E18-08B

Host X1, diamond indenter X1, steel ball indenter X1, Hardness test block X5, sample table X3, Accessories box X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
