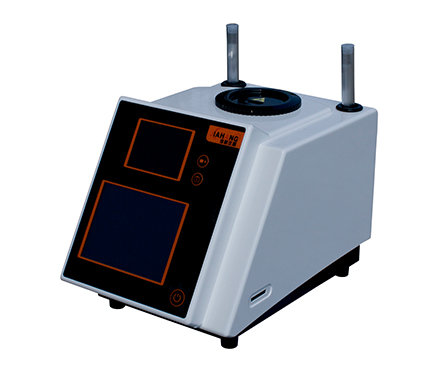

JH30 Video Melting point meter Semi-automatic economical, temperature range Room temperature~ 350 ℃
JIAHANG JH30 video Melting point meter is a semi-automatic economical video oil melting point analyzer. The temperature measurement range is room temperature~ 350 ℃. JH30 can process 4 samples at a time, and is widely used in chemical industry and pharmaceutical research.
JIAHANG
JH30
-
SUOGUANG WRS-1A Melting point meter melting point measurement range: room temperature~ 320 ℃
$ 1075.00 -
INESA WRR Melting point meter (visual)
$ 1066.00 -
JIAHANG JH90 automatic video Melting point meter temperature range Room temperature~ 420 ℃ with printer
$ 10020.00 -
JIAHANG JHY30 Grease Melting point meter PID precise temperature control, temperature range 0~100 ℃
Login -
JIAHANG JHY80 Automatic Grease Melting point meter Temperature range RT+~ 100.0 ℃
Login
Introduction

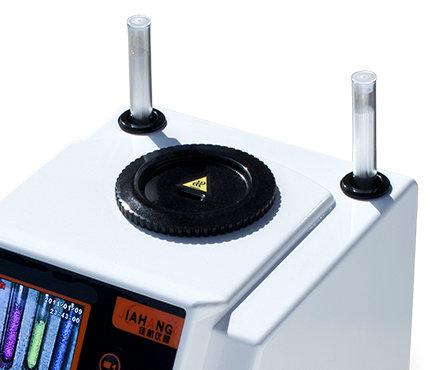

JIAHANG JH30 Video Melting Point Apparatus combines high-precision temperature control technology and high-definition video camera technology, which not only provides users with accurate, stable and reliable test results, but also brings users an effective and convenient test experience. The high-definition video can easily and clearly see the whole process of sample melting, which is convenient for users to accurately measure the melting point and melting distance of the sample. The temperature range of JH30 Video Melting Point Apparatus is from room temperature to 350°C, and it can process 4 samples at a time. It does not have the function of spectrum preservation.
Functional advantage
1. High-definition video replaces traditional microscope vision;
2. Process 4 samples at a time;
3. Compatible with measuring powder and block (melt is optional).
Application
JH30 Video Melting Point Apparatus plays an important role in the chemical industry and pharmaceutical research, and is the required instrument for the production of food, medicine, spices, dyes and other organic crystal substances.

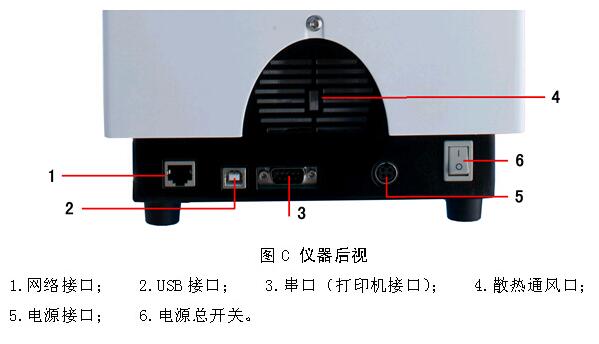

back structure
Some application customers
★ Nanjing University; ★ Chinese University of Hong Kong; ★ Harbin Institute of Technology;
★ Shanghai Institute of Organic Chemistry, Chinese Academy of Sciences; ★ Shanghai Institute of Materia Medica, Chinese Academy of Sciences; ★ Jilin Institute of Materia Medica;
★ Northeast Pharmaceutical Co., Ltd.; ★ Zhejiang Transfarm Co., Ltd.; ★ Jiangsu Jihua Chemical Co., Ltd.;
★ Ximeng Food and Drug Inspection and Testing Center; ★ Yangzhou Zhonghui Pharmaceutical Co., Ltd.; ★ Guangxi Wuzhou Pharmaceutical (Group) Co., Ltd.;
★ Kerisley Biotechnology Beijing Co., Ltd.; ★ Hainan Dachuan Food Co., Ltd.; ★ Dalian Fine Petrochemical Co., Ltd.;
★ Jinghai County Fuming Resin Co., Ltd.; ★ Jiangxi Ji'an Xiajiang County Hengtong Auxiliary Co.,Ltd.;
JIAHANG JH30 Melting point meterSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+~350°C |
| temperature resolution | 0.1℃ |
| Heating rate | 0.1~ 20 ℃ (200 gears, stepless adjustable) |
| Error of indication | ±0.3℃(<250℃)；±0.5℃(>250℃) |
| Sexual repeability | ±0.1℃(0.1℃/min) |
| Capillary size | Outer diameter Φ1.4mm; Inner diameter Φ1.0mm |
| Display | TFT high-definition true color screen |
| Data Interface | USB RS232 network port |
| magnification | 7X |
| processing power | 4 pcs/batch (four samples can be made at the same time) |
| user management | without |
| Video function | take a picture |
| Video playback function | without |
| Graph storage | without |
| data storage | 200 |
| Video storage | 8G |
| Experimental method Storage Capacity | without |
| Power | 220V 50HZ 120W |
JIAHANG JH30 Melting point meter Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
