Introduction

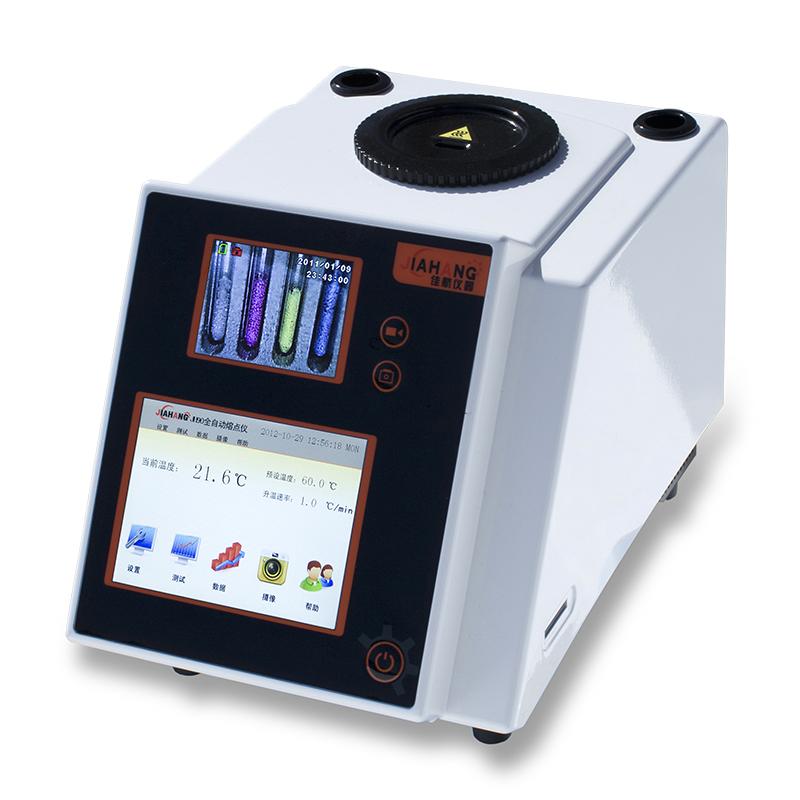

JIAHANG JH80 Automatic Video Melting Point Apparatus well combines high-precision temperature control technology and high-definition video camera technology, which not only provides users with accurate, stable and reliable test results, but also brings users effective and convenient test experience. The high-definition video can easily and clearly see the whole process of sample melting, and the automatic detection real-time map display is convenient for users to accurately measure the melting point and melting distance of the sample. JIAHANG JH80 Automatic Video Melting Point Apparatus is equipped with a high-definition camera module , 20 sets of map storage function, and can store 600 data.
Functional advantage
1. Equipped with high-definition camera module;
2. Process 4 samples at a time ;
3. High automation integration, realizing one-button measurement function ;
4. Automatically record the melting process, initial melting and final melting;
5. Assist in 3Q certification, in line with the 2015 Pharmacopoeia.
field of use
JH80 Automatic Video Melting Point Apparatus plays an important role in the chemical industry and pharmaceutical research, and is a necessary instrument for the production of food, medicine, spices, dyes and other organic crystal substances.
Back interface details
Some app users
★Shanghai Institute of Organic Chemistry, Chinese Academy of Sciences; ★Institute of Plant Physiology and Ecology, Shanghai Academy of Biological Sciences, Chinese Academy of Sciences;
★School of Medicine, Xi'an Jiaotong University; ★Nanjing University; ★Jiangxi Normal University; ★Zhendong Guangming Drug Research Institute;
★Ximeng Food and Drug Inspection and Testing Center; ★Taizhou Entry-Exit Inspection and Quarantine Bureau Comprehensive Technical Service Center;
★Haining Maqiao Hengshun Rubber Factory; ★Jilin College of Pharmacy; ★Dayu Water Saving (Tianjin) Co., Ltd.;
★Jiangsu Jihua Chemical Co., Ltd.; ★Jinghai County Fuming Resin Co., Ltd.; ★Dafeng Xinyuanda; ★ Jiangsu Huai'an Drug Administration
★Shanghai Pauway Biomedicine Co., Ltd.; ★Jiangxi Ji'an Xiajiang County Hengtong Auxiliary Co., Ltd.; ★Dalian Fine Petrochemical Co., Ltd.
JIAHANG JH80 Melting point meterSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+~420°C |
| temperature resolution | 0.1℃ |
| Heating rate | 0.1~ 20 ℃ (200 gears, stepless adjustable) |
| Error of indication | ±0.3℃(<250℃)； ±0.5℃(>250℃) |
| Sexual repeability | ±0.1℃(0.1℃/min) |
| Capillary size | Outer diameter Φ1.4mm; Inner diameter Φ1.0mm |
| Display | TFT high-definition true color screen |
| Data Interface | USB RS232 network port |
| magnification | 7X |
| processing power | 4 pcs/batch (four samples can be made at the same time) |
| user management | 20 |
| Video function | Take pictures, take pictures |
| Video playback function | Yes. |
| Graph storage | 80 sets |
| data storage | 1000 |
| Video storage | 32G |
| Experimental method Storage Capacity | 100 sets |
| Power | 220V 50HZ 120W |
JIAHANG JH80 Melting point meter Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
