HUITAI HTG-9070A Vertical Blast Drying Oven volume 80L water analysis/BOD determination

Germany imported blower, Temperature range RT + 10~ 250 ℃, volume 80L, shelf (std.) 2pcs, Timer Range 1~ 9999min.

Brand

SKU: NB006939

HuiTai

Model

HTG-9070A

Price

$ 512.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

HuiTai shopSE

Information

Datasheet RFQ Contract Video Catalog

What else did others buy

Kenton 101-0AS Desktop Electric Forced Air Drying Oven 40L with independent temperature limiter

$ 371.00
YIHENG DHG-9140 Forced Air Drying Oven Power 2050W

$ 618.00
YIHENG DHG-9015A Forced Air Drying Oven power 650W

$ 420.00
Kenton XCT-2AS high temperature Forced Air Drying Oven 270L with independent temperature limit controller

$ 1714.00
CHINA DHG-9140C high temperature Drying Oven temperature control 400 ℃ 140L

$ 1131.00

Genuinegoods

HuiTai HTG-9070A Vertical blast Drying OvenOverview
Specifications
Comments
FAQs

HTG-9070A

Vertical blast Drying Oven

Germany imported blower, Temperature range RT + 10~ 250 ℃, volume 80L, shelf (std.) 2pcs, Timer Range 1~ 9999min.

Overview

Huitai HTG-9070A vertical Forced Air Drying Oven is suitable for scientific research, colleges and production departments such as environmental protection, sanitation and epidemic prevention, drug inspection, agriculture and livestock, and aquatic products. It is a special constant temperature equipment for water body analysis and BOD determination, bacteria, mold, microorganism culture, preservation, plant cultivation and breeding test.

Features

1. Large-screen LCD display, multiple sets of data displayed on one screen, menu-style operation interface, easy to understand and easy to operate.

2. The fan speed control mode is adopted to improve the temperature uniformity of the working room.

3. The self-developed air duct circulation system is adopted to automatically discharge the water vapor inside the box, and there is no trouble of manual adjustment.

4. It adopts a microcomputer PID fuzzy processing controller with over-temperature deviation protection to quickly reach the preset temperature and run stably.

5. The blower imported from Germany is used, and the service life is extended by 2 times

6. The inner tank is made of mirror stainless steel, the shelf bracket can be installed and disassembled freely, and the semi-circular four-corner design makes cleaning more convenient.

7. The Oven Casing is made of high-quality cold-rolled steel plate, and the surface is electrostatically sprayed.

8. Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, to ensure the safe operation of the experiment without accidents. (optional)

9. With RS485 interface, it can be connected to the Recorder and computer, and can record the changes of temperature parameters. (optional)

plan

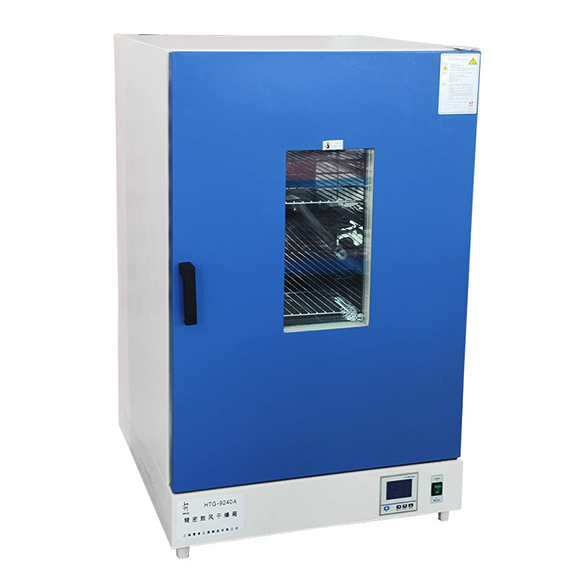

Display picture of Huitai HTG-9070A vertical Forced Air Drying Oven

Optional

Intelligent program controller

Independent temperature limit controller

Embedded printer

RS485 interface and special software

Test hole 25mm/50mm

Parameter comparison of HTG series vertical Forced Air Drying Oven

model	HTG-9070A	HTG-9140A	HTG-9240A	HTG-9420A	HTG-9620A	HTG-9920A
Voltage	AC220V 50HZ
Temperature control range	RT+10~250℃
Constant temperature fluctuation	±1℃
temperature resolution	0.1°C
input power	1100W	1550W	2050W	3500W	4000W	6000W
Studio size W×D×H(mm)	400×425×445	450×550×550	500×600×750	600×550×1300	800×640×1290	1000×600×1600
Dimensions W×D×H(mm)	545×580×800	640×710×905	680×800×1205	780×750×1850	980×750×1750	1180×800×2150
volume	80L	150L	250L	420L	620L	1000L
Carrier (standard)	2pcs			3pcs	4pcs
Timer Range	1~9999min
*Performance parameter test under no-load conditions, no strong magnetism, no vibration: ambient temperature 20°C, ambient humidity 50%RH.

HuiTai HTG-9070A Vertical blast Drying OvenSpecifications

LIST	VALUE
Power	AC 220V 50Hz
Temperature range	RT+10~250°C
Temperature fluctuation	±1℃
temperature resolution	0.1℃
Input power	1100W
Interior size	400425445mm
Dimensions	545580800mm
Volume	80L
Number of shelves (std.)	2pcs
Timer	1~9999min

HuiTai HTG-9070A Vertical blast Drying Oven Packing list

Host X1, fuse X2, certificate X1, manual X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Our laboratory needs to do BOD determination, is this drying oven suitable?

[A]

Yes! The HTG-9070A is specially designed for water analysis and BOD determination. Its 80L volume just meets the needs of routine experiments, and the Temperature range RT + 10~ 250 ℃ fully covers the temperature required for BOD determination. The function of automatic water vapor discharge also avoids the trouble of manual adjustment.

[Q]

If we need to record temperature data, does this device support it?

[A]

Yes, HTG-9070A can be equipped with optional RS485 interface and special software, which can connect to a computer to record temperature parameter changes. You can also choose an embedded printer to directly print temperature Linear dispersion and data, suitable for scientific research experiments that require data traceability.

[Q]

The machine can control the temperature of 160 ° C, and about 80L of test pieces should be placed.

[A]

HTG-9070A vertical blast drying oven Temperature range 10~ 250 ℃, effective volume 80L meet.

[Q]

Are all drying ovens available for testing in the GB/T16777 standard?

[A]

Not necessarily, but this HTG-9070A drying oven can be considered.
