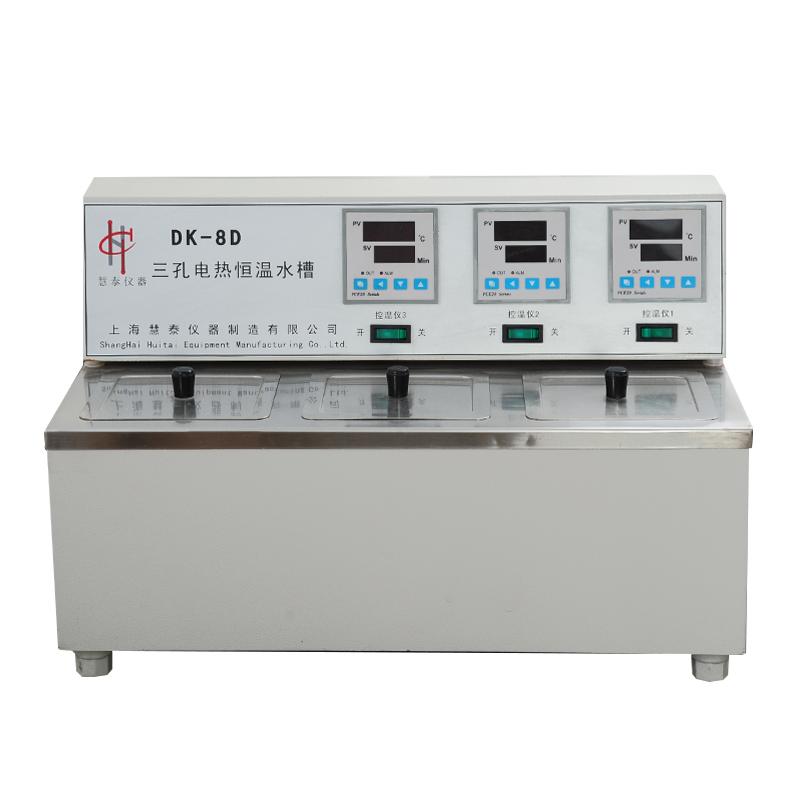

HUITAI DK-8D electrothermal Thermostatic Water Bath Three holes independent temperature control, temperature RT + 5~ 100 ℃
HUITAI DK-8D electrothermal Thermostatic Water Bath is a Three hole independent temperature control electrothermal Thermostatic Water Bath. Temperature range of DK-8D is RT + 5~ 100 ℃, Temperature Fluctuation is +/- 0.3 ℃.
HuiTai
DK-8D Three hole independent temperature control
-
FANGRUI HDC0530 low temperature Thermostatic Bath, temperature range -5~ 100 ℃
$ 1442.00 -
NELE GDH-5010 Ultra high accuracy Thermostatic Bath 10L/-50 ℃
$ 3766.00 -
Shangtian Jingyi DHC-0506 high-low temperature thermostat, high precision high-low temperature thermostat -5~ 160 ℃/6L
$ 1178.00 -
SDPTOP DC-2020 Low Temperature Thermostat -20~95 ℃/20L
$ 1750.00 -
NELE DC-1006-II Temperature Cycling Unit 6L/-10 ℃
$ 1364.00
Overview
Huitai DK-8D electric heating constant temperature Water Tank is suitable for precision constant temperature and auxiliary heating in colleges and universities, industrial and mining enterprises and scientific research units.
give birthProduct characteristics
1. The stainless steel liner is used to make it novel and beautiful.

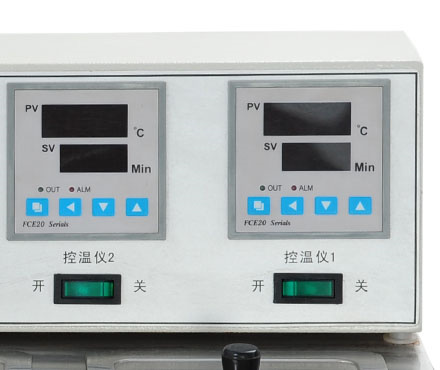

2. Digital display, microcomputer control, with timing function.
3. Over-temperature acousto-optic tracking alarm, so that the sample can be reliably protected.
Optional
Intelligent programmed LCD temperature controller
printer
RS485 interface and communication software
Comparison of parameters of DK series electric heating constant temperature sink
project | DK-8AS | DK-8AX | DK-8AD | DK-600B (with Circulating Chiller) | DK-8AB (with Circulating Chiller) | DK-8D (Three-hole Electric Heating Constant Temperature Water Tank) |
Supply Voltage | AC220V 50HZ | |||||
Temperature control range | RT+5~100℃ | RT+5~70℃ | RT+5~100℃ | |||
Constant temperature fluctuation | ±0.5℃ | ±0.3℃ | ±0.3℃ | |||
Temperature resolution | 0.1℃ | |||||
Input power | 450W | 800W | 1000W | 1000W | 1000W | 750W |
Studio size W×D×H(mm) | 300×250×160 | 450×300×160 | 600×300×160 | 500×300×150 | 600×300×170 | 150×125×110 |
Dimensions W×D×H(mm) | 505×365×295 | 655×430×295 | 805×420×295 | 785×430×285 | 885×430×305 | 490×250×310 |
volume | 12L | 22L | 30L | 22L | 30L | 2.1L x 3 |
Timing range | 1~9999min | |||||
*The performance parameters are tested under no-load conditions, without strong magnetism and vibration, and the ambient temperature is 20°C, and the ambient humidity is 50%RH. | ||||||
HuiTai DK-8D Three hole independent temperature control Electrothermal Thermostatic Water BathSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | 5~100℃ |
| Temperature Fluctuation | ±0.3℃ |
| Temperature Resolution | 0.1℃ |
| Tank Volume | 2.1L*3 |
| Circular mode | Domestic circulation |
| Total Power | 750W |
| Timer | 1~9999min |
| Power supply Voltage | AC220V 50Hz |
| Dimensions | 490*250*310mm |
| Tank Size | 150*125*110mm |
HuiTai DK-8D Three hole independent temperature control Electrothermal Thermostatic Water Bath Packing list
Host x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
