YouKe UV765 UV Spectrophotometer Large screen scanning type, wavelength 190~1100nm
YouKe UV Spectrophotometer UV765 is a scanning type UV Spectrophotometer with a large LCD screen. Wavelength range is 190~1100nm. UV765 can be connected to a printer and has a bilingual Operating system.
Yoke
UV765
-
JINGHUA UV1800 UV-Visible Spectrophotometer Light spectrum bandwidth 1.7nm
$ 2169.00 -
YueFeng 723 Visible Spectrophotometer Wavelength 325-1050nm
$ 747.00 -
JINGHUA 7600 Dual beam of light UV-Visible Spectrophotometer Wavelength Accuracy ： +/- 0.5nm
$ 4423.00 -
YueFeng 754N Ultraviolet-visible spectrophoto-meter 195~ 1100nm
$ 817.00 -
YueFeng FSP6620 Flame Spectrophotometer Test Potassium/Sodium
$ 2092.00
Introduction
The UV765 UV Spectrophotometer allows for easy photometric analysis, quantitative analysis, kinetic analysis, spectral scanning, multi-wavelength testing, and DNA/protein analysis with simple parameter setting.
Features
1. The new ARM system is adopted, with a built-in Chinese and English dual operating system, which can store and transfer data through the USB interface.
2. Powerful, the host can independently complete the functions of photometry, quantitative measurement, spectral scanning, kinetics, DNA/protein testing, multi-wavelength testing and data printing.
3. The instrument adopts 320*240 dot matrix high-brightness 6 liquid crystal display, which directly displays the scanning spectrum, and the screen interface is simple and easy to use.
4. The unique design of the optical system, high-performance 1200 strips/mm grating and imported receiver ensure that the instrument has excellent performance indicators.
5. Socket type deuterium lamp and tungsten lamp design, free of optical debugging after lamp replacement.
6. 4-bit high-speed, high-precision A/D conversion, high instrument precision and fast response speed.
7. Large sample room, which can accommodate 5-100mm cuvettes of various specifications.
8. It can be directly connected to the printer to print the map and experimental data.
9. Built-in bilingual operating system in Chinese and English, easy to use.
10. It can be directly operated online through Yoke scanning software.
11. It can be equipped with a disc rotating automatic eight-link sample holder, which has good reliability and centered spot (compared with double-row automatic eight-link rack), so that the instrument has high metering accuracy. (Patent No.: ZL 2010 2 0562307.8)

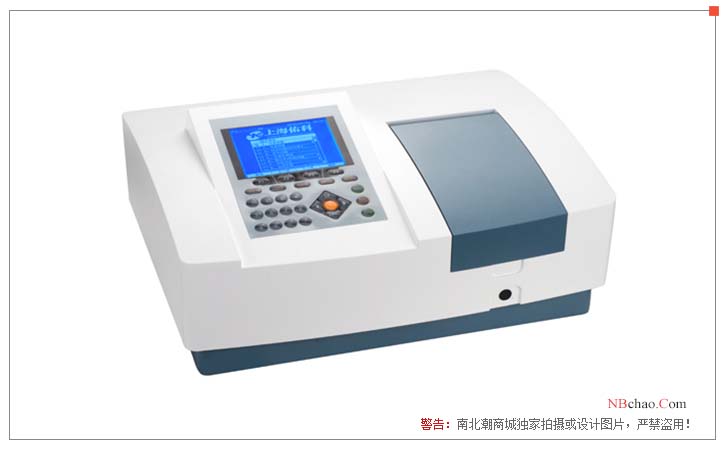

Pictures

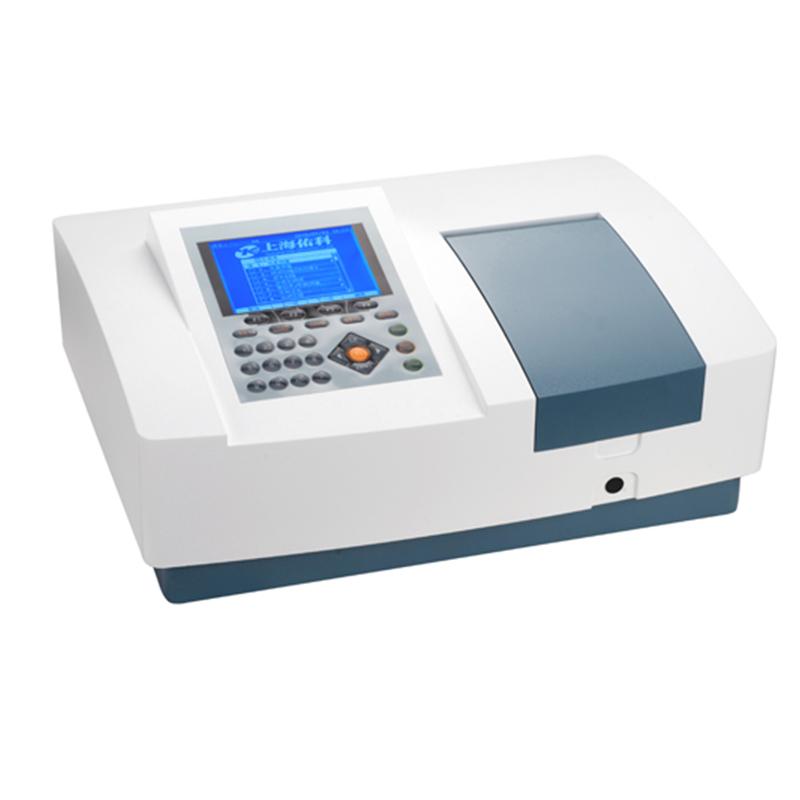

Yoke UV765 SpectrophotometerSpecifications
| LIST | VALUE |
|---|---|
| Optical inspection system | Single beam of light |
| Light spectrum Bandwidth | 1.8nm |
| Wavelength range | 190~1100nm |
| Wavelength Precision | +/- 0.1Nm (D2 656.1nm )， +/- 0.3nm full band |
| Wavelength Repeatability | ≤0.2nm |
| Photometric Precision | ±0.002A(0~0.5A)、±0.004A(0.5~1A)、±0.3 %T (0~100 %T) |
| Luminosity Repeatability | ±0.001A(0~0.5A)；±0.002A(0.5~1A)；±0.1%T(0~100%T) |
| stray light | ≤0.05%T |
| Stability | ±0.0005A/h@500nm |
| Baseline flatness | ±0.0015A |
| Operating Mode | T、A、C、E |
| Interface | USB port |
| printout | Parallel mouth |
| monitor | 320 * 240 Bit Highlight 6 "Large Screen LCD |
| Light source | Tungsten lamp, deuterium lamp |
| Detector | Imported silicon photodiode |
| Weight | 15kg |
| Wavelength Drive | automatic |
Yoke UV765 Spectrophotometer Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
