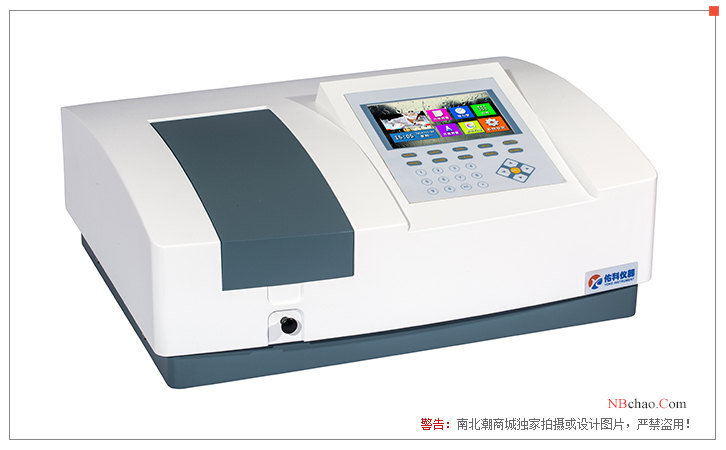

YouKe N5000 UV-Visible Spectrophotometer Single beam of light Light spectrum bandwidth 1.8nm

Features

1. 7-inch color display

The super-large screen displays various scanning curves and graphs, allowing users to complete all measurement needs without using a computer.

2. Support U disk storage, convenient for users to use

The data measured by the user can be directly exported to the U disk. The opening and editing of the data does not require any professional auxiliary software support. It can support excel, txt, and picture formats (four formats can be output: *.csv, *.qua, *tet, .bmp), which is convenient for users to edit experiment reports directly on the PC, which greatly saves the space of laboratory benches in colleges and universities, and is convenient for users to use.

3. Professional hardware in the industry

The industry uses a professional 32-bit Cortex_M3 processor, the main frequency reaches 120M, and the instrument can store 5000 test data or 500 working curves.

4. Rich expansion performance, greatly convenient for customers to use

Yoke N5000 UV-Vis Spectrophotometer is equipped with 8GB memory as standard, which can store test data in large quantities; the instrument is equipped with printing interface (232 ), HOSTUSB interface, and standard USB (A) interface.

4. Imported long-life socket deuterium lamp and tungsten lamp

2000-hour ultra-long life light source, the instrument automatically switches the light source according to the measurement needs, automatically records the use time of the light source, and the socket-type light source makes the replacement operation simple.

5. Optimized self-collimating optical path

1200 lines/mm effective planar holographic light, ultra-low stray light.

6. Super large sample room and various accessories are available to facilitate various measurement needs of users

7. It can be directly connected to a printer to output measurement maps and data

8. Powerful PC function software

9. The instrument can support remote upgrade, and support users to download the upgrade package from the official network

Features

●Large-capacity sample chamber design, various special accessories can be installed to meet the measurement requirements; 8 automatic disc rotary sample racks and 5 ultra-wide automatic sample racks are optional.

● The new optimized self-collimating CT optical path design ensures the measurement accuracy and stability of the instrument; the fully sealed optical path design effectively prolongs the service life of optical components and ensures the long-lasting stability of the instrument.

● High precision, integrated sine mechanism, reliable guarantee of Wavelength Accuracy.

● Automatic light source adjustment design, automatic positioning, to ensure that the optical system of the instrument is in good condition.

● Suspension optical system design, strengthen the design of thickened aluminum base plate, eliminate the impact of vibration or deformation on the optical system; the double-layer design completely separates the optical path and the circuit part, which facilitates the maintenance of the instrument and avoids the mutual flow of light and electricity , Improve the resolution and stability of the N5000 UV-Vis Spectrophotometer .

Application

N5000 UV-Vis Spectrophotometer can perform qualitative and quantitative analysis on sample substances in the ultraviolet and visible spectral regions, and can be widely used in medical and health, clinical testing, biochemistry, petrochemical, environmental testing, food hygiene and quality control and other departments , and can be used as a teaching demonstration and experimental instrument for related courses in colleges and universities.

plan

Complete machine X1, manual X1, certificate of conformity X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
