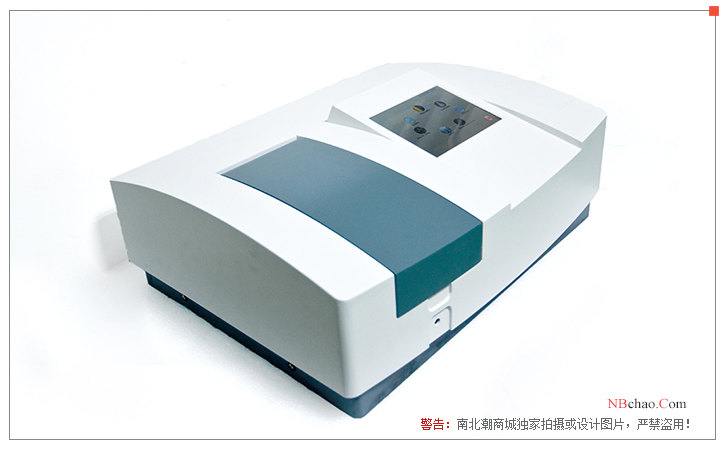

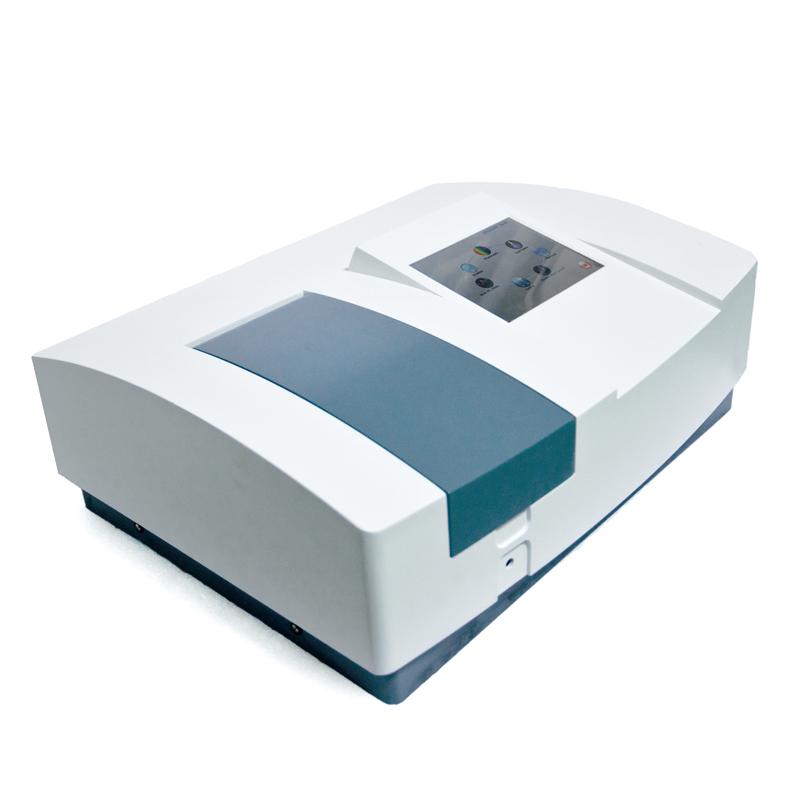

YouKe U5000 Touch Screen UV-Visible Spectrophotometer Dual beam of light Light spectrum Bandwidth 2nm

Introduction

Yoke U5000 touch screen UV/VIS Spectrophotometer is a new SUPER series UV-Vis Spectrophotometer with very excellent photochemical system design, high-level mechanical system, professional circuit control system, rigorous and demanding process requirements R & D and design of a new series of UV-Vis Spectrophotometer , SUPER series UV-Vis Spectrophotometer has a friendly and intuitive graphical interface software UV-SPER2.0, very good technical indicators are stable, Very good and reliable working characteristics, which can meet the needs of high-level professional user analysis work.

Features

1. Smooth appearance and internal structure

It adopts humanized appearance and expandable design, and the interior adopts a double-layer structure design, which avoids the loss of photometric energy.

2. Convenient and intuitive graphical operation interface

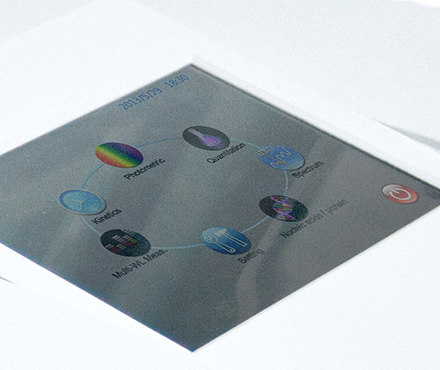

The instrument adopts 8-inch high-resolution color LCD screen, with the newly developed UV-SUPER2.0 software, which is easy to operate and powerful.

3. Excellent performance and good stability

The fully enclosed monochromator structure, the fully sealed structure and all optical mirror surfaces are coated with SI02 protective film, which ensures that the optics of the instrument are not affected by gas and environment.

Tungsten lamps (philips) and deuterium lamps (Hamamatsu) are selected from the world's best brands to ensure the long-term stability and reliability of the light source. The improved screw drive mechanism makes the instrument have good repeatability and high Wavelength Accuracy.

4. Design a professional electrical measurement system

The professional 32-bit controller ARM11 is used in CHINA, and its main frequency can reach 533MHZ, with stable performance.

The instrument adopts 24-bit high-performance AD specially designed for photoelectric data acquisition and processing by BB company in the United States.

The instrument can support massive data storage (up to 1024M) inside the instrument, mouse operation, and USB opening large-capacity SD card storage.

5. Simple and convenient maintenance

The unique socket type tungsten lamp and deuterium lamp eliminate optical debugging when changing the lamp, making the debugging and maintenance of equipment and instruments more simple and convenient.

The double-layer design of optical path and circuit is designed separately to avoid the influence of crossing, and the instrument maintenance is convenient and reliable.

Pictures

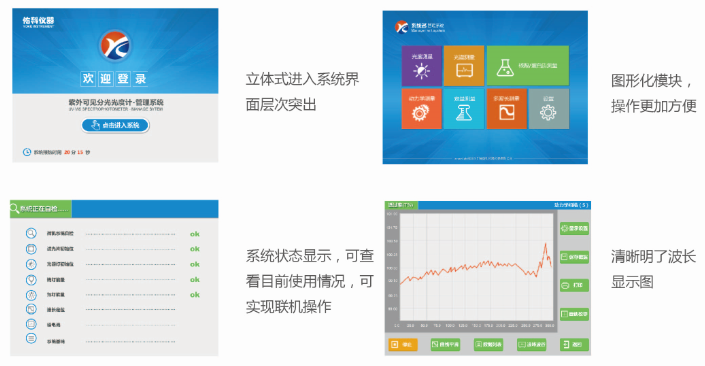

Software Description

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
