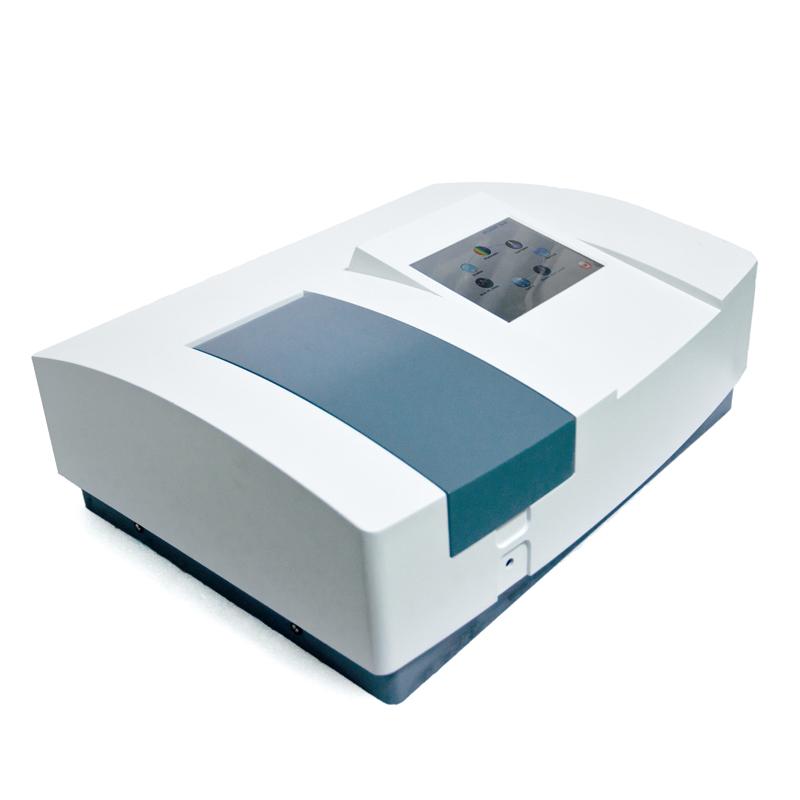

YOKE U5100PCS spectrophotometer Touch screen UV-Visible Spectrophotometer
Optical inspection system with dual beams of light, wavelength accuracy +/- 0.3nm, equipped with professional 32-bit controller and 24-bit AD acquisition, support massive Data storage and a variety of interface expansion, easy maintenance.
Yoke
U5100PCS
-
YueFeng FSP6650 Flame Spectrophotometer Test Potassium/Sodium/Lithium/Calcium/Barium
$ 4268.00 -
YueFeng 7230G (PC) Visible Spectrophotometer with pc software
$ 661.00 -
YUEFENG FP6455 Five-element Flame photometer
$ 1967.00 -
YueFeng FSP6642 Flame Spectrophotometer Test Potassium/Sodium/Lithium/Barium
$ 3413.00 -
YueFeng 723S Visible Spectrophotometer 325~ 1100nm without USB interface
$ 895.00
Introduction
Yoke U5100PCS touch screen UV/VIS Spectrophotometer is a new SUPER series UV-Vis Spectrophotometer with very excellent photochemical system design, high-level mechanical system, professional circuit control system, rigorous and demanding process requirements R & D and design of a new series of UV-Vis Spectrophotometer , SUPER series UV-Vis Spectrophotometer has a friendly and intuitive graphical interface software UV-SPER2.0, very good technical indicators are stable, Very good and reliable working characteristics, which can meet the needs of high-level professional user analysis work.
Features
1. Smooth appearance and internal structure
It adopts humanized appearance and expandable design, and the interior adopts a double-layer structure design, which avoids the loss of photometric energy.
2. Convenient and intuitive graphical operation interface
The instrument adopts 8-inch high-resolution color LCD screen, with the newly developed UV-SUPER2.0 software, which is easy to operate and powerful.
3. Excellent performance and good stability
The fully enclosed monochromator structure, the fully sealed structure and all optical mirror surfaces are coated with SI02 protective film, which ensures that the optics of the instrument are not affected by gas and environment.
Tungsten lamps (philips) and deuterium lamps (Hamamatsu) are selected from the world's best brands to ensure the long-term stability and reliability of the light source. The improved screw drive mechanism makes the instrument have good repeatability and high Wavelength Accuracy.
4. Design a professional electrical measurement system
The professional 32-bit controller ARM11 is used in CHINA, and its main frequency can reach 533MHZ, with stable performance.
The instrument adopts 24-bit high-performance AD specially designed for photoelectric data acquisition and processing by BB company in the United States.
The instrument can support massive data storage (up to 1024M) inside the instrument, mouse operation, and USB opening large-capacity SD card storage.
5. Simple and convenient maintenance
The unique socket type tungsten lamp and deuterium lamp eliminate optical debugging when changing the lamp, making the debugging and maintenance of equipment and instruments more simple and convenient.
The double-layer design of optical path and circuit is designed separately to avoid the influence of crossing, and the instrument maintenance is convenient and reliable.

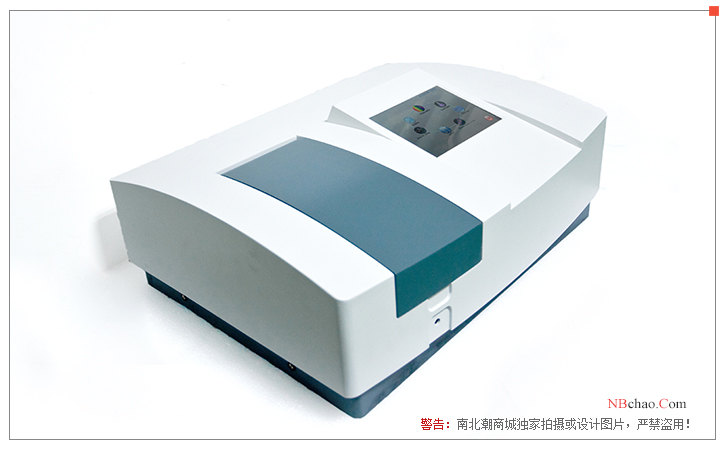

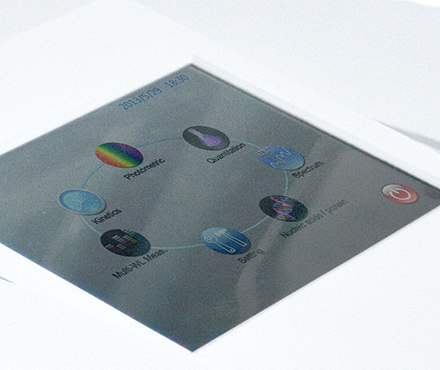

Pictures

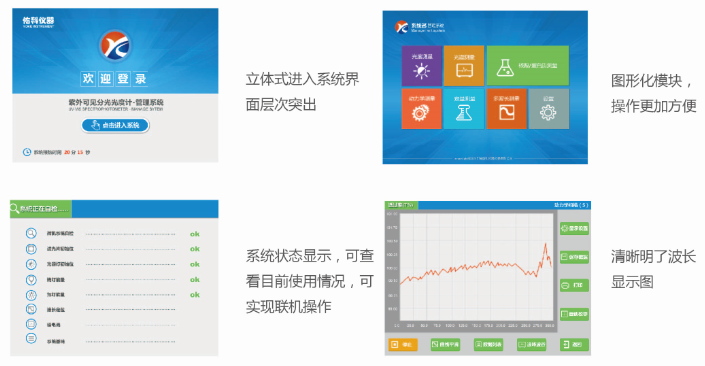

Software Description
Yoke U5100PCS spectrophotometerSpecifications
| LIST | VALUE |
|---|---|
| Optical inspection system | Double beam of light (1200/mm holographic light) |
| Light spectrum Bandwidth | 0.5nm、1nm、2nm、4nm、5nm |
| Wavelength range | 190~1100nm |
| Wavelength Precision | ±0.3nm |
| Wavelength Repeatability | 0.1nm |
| Photometric range | 0~200%T、-0.3~3.0A、0~9999C(0~9999F) |
| Photometric Precision | ±0.3%T |
| stray light | 0.05%T@220nm,360nm |
| Baseline flatness | 0.001A |
| Interface | RS-232C Serial Port, USB Connectivity Port, U disk interface |
| monitor | 8TFT color screen |
| Light source | Tungsten lamp, deuterium lamp |
| Power Supply | AC 110/220V 50/60Hz |
| Dimensions | 595*430*210mm |
| Weight | 28kg |
| Transmittance Precision | 0.3%T |
Yoke U5100PCS spectrophotometer Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
