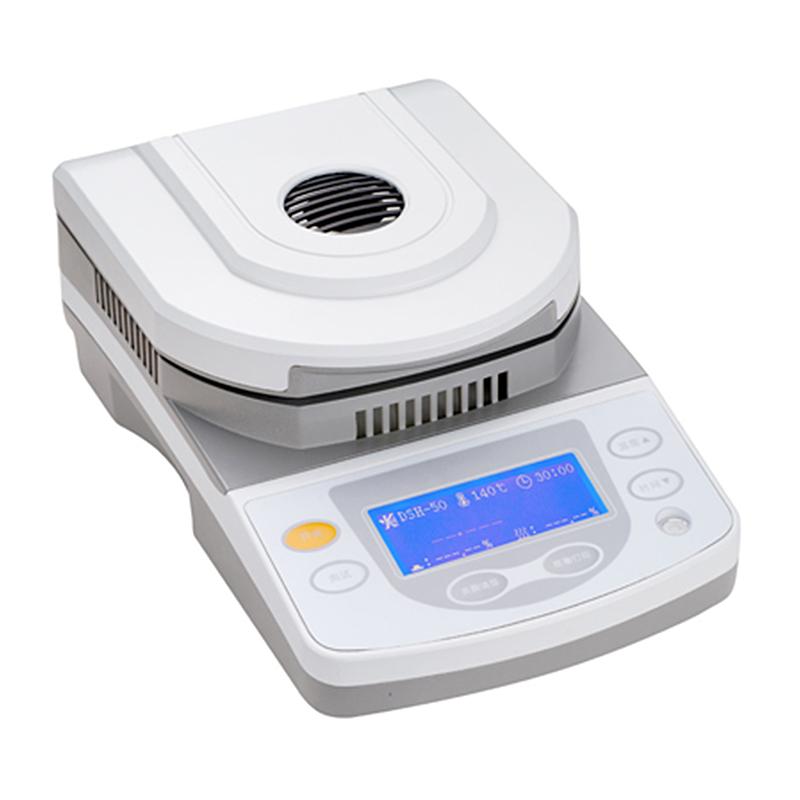

YOKE DSH-100A-5 Halogen moisture meter halogen lamp heating rapid determination of moisture

Using halogen lamp heating technology, heating up quickly shortens the test time; Equipped with high-precision insulated Sensors to ensure reliable temperature acquisition; Capacity 100g, readability up to 5mg; Support automatic peeling and zero drift correction function.

Brand

SKU: NB007259

Yoke

Model

DSH-100A-5

Service

Yoke shop

Information

Datasheet Catalog Manual

What else did others buy

Genuinegoods

Yoke DSH-100A-5 Halogen moisture meterOverview
Specifications
Comments
FAQs

DSH-100A-5

Halogen moisture meter

Features

1. Large high-resolution back-mounted light array LCD screen, easy to operate in dark places, more comfortable vision.

2. Push-button chain disc makes the operation more convenient.

3. High-precision heat-insulated sensor, reliable data temperature.

4. Halogen lamp is used for heating and drying, the temperature rises rapidly, and the test time is short.

Product features

1. During the test, the drying state can be directly confirmed and the end time can be estimated.

2. Because of the automatic tare function, the measurement can be carried out continuously in real time, and the accurate measurement can also be carried out by zero drift correction

3. Built-in R232C output interface, which can be connected to computers, printers and other peripheral devices.

Applications

Yoco DSH-100A-5 halogen Moisture Meter is used to quickly determine the free moisture of various samples such as chemical raw materials, grains, minerals, biological products, food, raw materials, paper, textile raw materials, etc.

Pictures

Yoke DSH-100A-5 halogen Moisture Meter display diagram

Yoke DSH-100A-5 Halogen moisture meterSpecifications

LIST	VALUE
Maximum weighing value	100g
Weighing readability	5mg
Repeatability	0.3%
Minimum sample size	0.5g
Recommended sample size	3-100g
Timer	1~99min
Heating source	standard
Communication interface	RS232
How to end the measurement	Timed, automatic
Heating Temperature range	RT+50~180℃
Display parameters	Moisture%, solids%, Weight, time, date, etc
Pan Size	Φ100mm
Dimensions	265160150mm
Net Weight	5kg
Total Weight	6kg
Heating source	Halogen lamp

Yoke DSH-100A-5 Halogen moisture meter Packing list

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

How many degrees Celsius is suitable for heating this kind of Halogen moisture meter?

[A]

Selecting a suitable heating temperature requires neither analysis nor change the chemical structure of the sample, generally set to 105 ° C, unless the sample and industry have special requirements.

[Q]

Does the DSH moisture meter need to be weight calibrated?

[A]

Moisture meters use relative weight to measure results, so small deviations from absolute weight have little effect on measurement accuracy. Moisture meters have stable weighing performance and are less affected by temperature, and can maintain calibrated results for a long time, so weight calibrating is not required.

[Q]

DSH-100A-5 halogen Moisture Analyzer Do you have requirements for samples?

[A]

Hello, it is recommended to use a paste-like, fat-containing substance that can be melted.

[Q]

DSH-100A-5 Halogen moisture meter flashes on the right side of the display screen showing "< 0.5g" What's going on?

[A]

Hello, it may be that the sample weighing value is less than 0.5g. It is recommended to increase the sample volume and press the test button. Start measuring the moisture content. Or directly press the test button to cancel the blinking and return to the weighing mode.

+Yoke DSH-100A-5 Halogen moisture meter Big data

+Yoke DSH-100A-5 Halogen moisture meterSimilar products

+Yoke DSH-100A-5 Halogen moisture meterKnowledge

+Yoke DSH-100A-5 Halogen moisture meterStandard

ActiveJJG 658-2022
