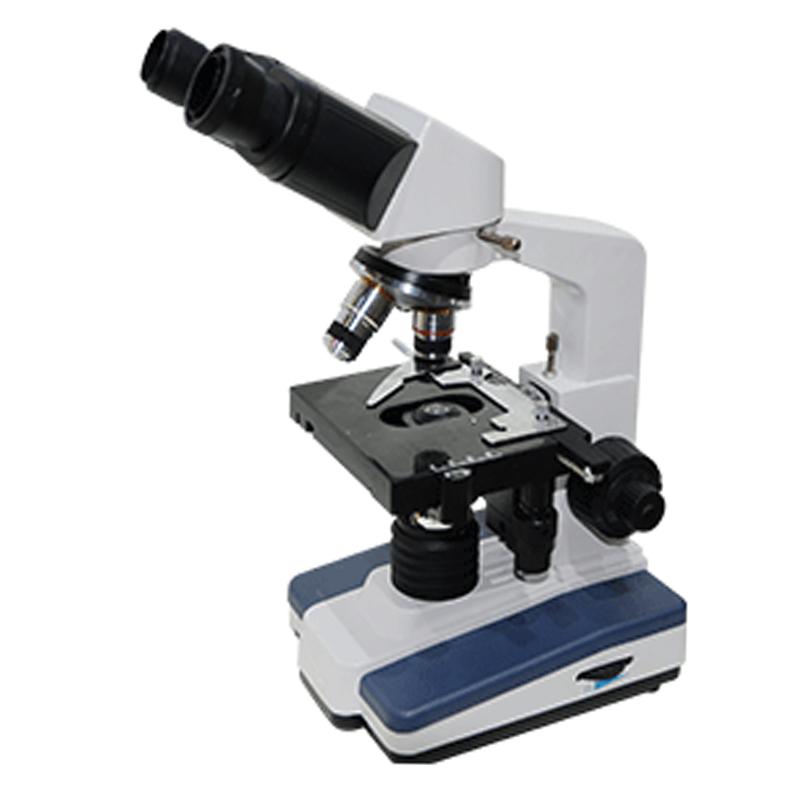

YOKE XSP-2CA Bio Microscope Binocular Abbe Condenser 1600X Enlargement

Equipped with binocular observation system and Abbe condenser, it supports 40X to 1600X magnification range, uses 6V/20W halogen light source, has 360 ° swirl/spin observation head and precision focusing mechanism.

Brand

SKU: NB007262

Yoke

Model

XSP-2CA

Get Quote

Yoke shopSE

Information

Datasheet Manual

What else did others buy

TEELEN CPH-200 Differential Microscope

Login
TEELEN XTL-20B Metallurgical Microscopy Infinite High Light Reuters reflection Double Illuminant

$ 1750.00
TEELEN TL3001 Upright Fluorescence Microscope

Login
Anyty 3R-WM461PCTV Digital Microscope 600X

$ 1540.00
TEELEN XSP-BM17 Binocular Phase Contrast Microscope

Login

Genuinegoods

Yoke XSP-2CA MicroscopeOverview
Specifications
Comments
FAQs

XSP-2CA

Microscope

Introduction

Yoke XSP-2CA biological microscope is a biological microscope with reasonable design, compact structure and light use. It is suitable for research experiments in biology, bacteriology, medicinal chemistry and other disciplines.

Pictures

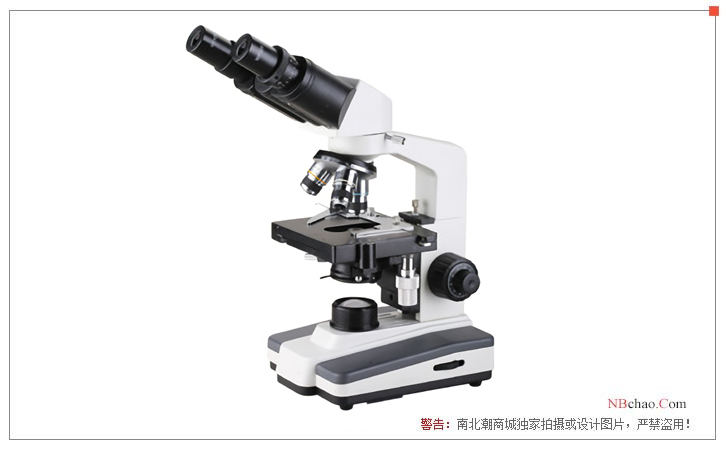

Yuke XSP-2CA Biological Microscope Display Picture

Comparison of parameters of Yoke biological microscope

model	XSP-1CA	XSP-2CA	XSP-3CA	XSP-8CA	XSP-10CA
lens barrel	Monocular	binocular	Monocular	binocular	Three eyes
Condenser and aperture	Diaphragm turntable 6 holes	Abbe Condenser Iris Diaphragm and Filters	Abbe Condenser Iris Diaphragm and Filters	Abbe Condenser Iris Diaphragm and Filters	Abbe Condenser Iris Diaphragm and Filters
eyepiece	16X	Wide-angle eyepiece WF10X, Huygens eyepiece H16X	Wide-angle eyepiece WF10X, Huygens eyepiece H16X	Wide-angle eyepiece WF10X, Huygens eyepiece H16X	Wide-angle eyepiece WF10X, Huygens eyepiece H16X
Achromatic Objectives	4X, 10X, 40X	4X,10X,40X(S), 100X(S)	4X,10X,40X(S), 100X(S)	4X,10X,40X(S), 100X(S)	4X,10X,40X(S), 100X(S)
illumination	Halogen lamp 6V/20W	Halogen lamp 6V/20W	Halogen lamp 6V/20W	Halogen lamp 6V/20W	LED light source or halogen lamp
power supply	natural light source	light source	light source	light source	light source

Yoke XSP-2CA MicroscopeSpecifications

LIST	VALUE
barrel	binocular
Objective for eliminating color difference	4X/0.10NA, 10X/0.25NA, 40X/0.65NA, 100X/1.25NA (spring, oil) (magnification/numerical aperture)
Flat field eyepiece	10X/18 (mm), 16X/11 (mm) (magnification/field aperture)
observation head	360 ° swirl/spin, single cylinder 30 ° tilt
Binocular auxiliary lens	1X
condenser	Abbe condenser with variable light bar and color filter, numerical aperture 1.25NA
Total magnification	40X~1600X
Focusing range	15mm (fretting grid value 0.002mm)
pupil distance	55-75mm
Mechanical barrel length	160mm
Tungsten Halogen Bulb	6V/20VA
light source	220V electric light source
stage	125 * 120mm (moving range 70 * 30mm, vernier grid value 0.1mm)
condenser	Abbe Condenser Variable Bar and Color Filter
eyepiece	Wide-angle eyepiece WF10X, Huygens eyepiece H16X
Objective for eliminating color difference	4X,10X,40X(S), 100X(S)
Power	Electric light source

Yoke XSP-2CA Microscope Packing list

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Do you have the Biological Microscope involved in SY/T0442?

[A]

The XSP-2CA Biological Microscope will do
