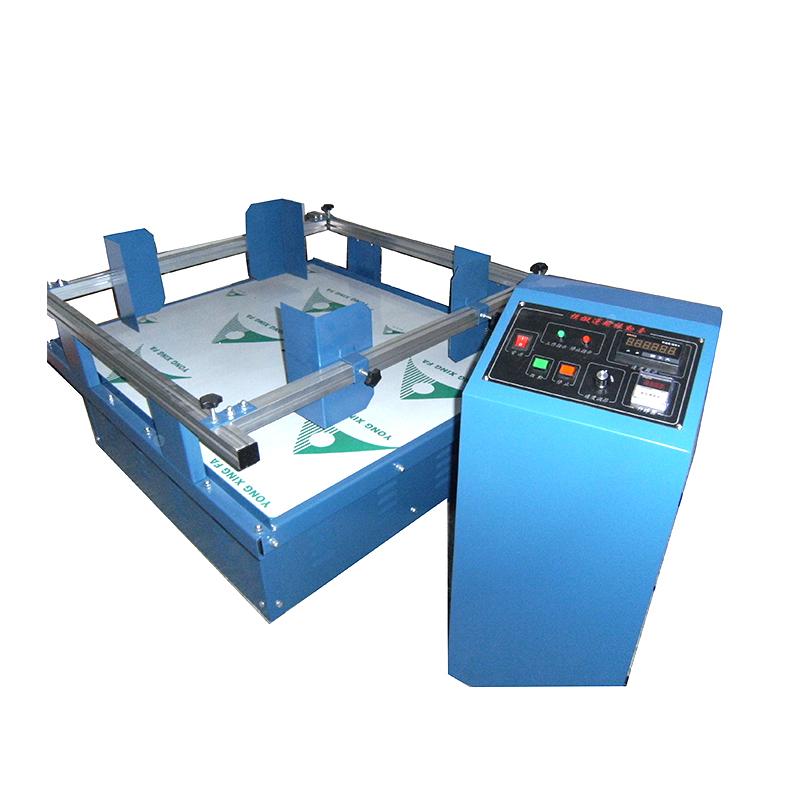

TENGFEI TF-601 Vibration Tester Load up to 100kg
TENGFEI TF-601 Vibration Tester is suitable for toys, electronics, furniture, gifts, ceramics, Encasement and other products. The maximum load of TF-601 is 100kg, and it adopts reciprocating vibration mode.
TengFei
TF-601
-
KOSON KS-70 steel bar detection Baoke detects the position of steel bars inside the concrete structure
$ 293.00 -
CHANGLONG DG-1 (500g) conductive paste, bottled, applicable temperature minus 40 ℃~ 170 ℃
$ 87.00 -
DUBAN DB22-FPM42K Stroboscope 50~42000 FPM
$ 374.00 -
JINHE WZY-4030A numerical control multifunctional prototyping machine
$ 5978.00 -
Dingsheng XR-14 latex high-speed mechanical stability Tester, high-speed mechanical stability Tester
$ 2294.00
Introduction
Tenghui TF-601 simulated transportation vibration table is suitable for simulated transportation testing of toys, electronics, furniture, gifts, ceramics, packaging and other products, and complies with U.S. and European transportation standards.
Applicable standards
EN, ANSI, UL, ASTM, ISTA international transportation standards.
Featuresãããããããããããããããã
(1) Low price, only 10% of that of similar products in the United States;
(2) The digital instrument displays the vibration frequency;
(3) Synchronous noise-reducing belt drive, extremely low noise;
(4) The test sample is clamped using guide rails, which is easy and safe to operate;
(5) The base of the machine is made of heavy-duty channel steel with vibration-absorbing rubber pads, which is easy to install and runs smoothly without installing anchor screws;
(6) DC motor speed regulation, stable operation and strong load capacity
(7) Rotary vibration (commonly known as horse racing), which complies with European and American transportation standards.ã
TengFei TF-601 Vibration TesterSpecifications
| LIST | VALUE |
|---|---|
| running speed | 100~300RPM (rev/min) |
| Speed display Accuracy | 1RPM (rev/min) |
| vibration mode | Reciprocating |
| Amplitude (P-P) | 25.4mm |
| Maximum load | 100kg |
| effective Countertop | 1.0X1.2m (length X width) |
| Time setting range | 0 seconds to 99 hours |
| Power | 1HP |
| Speed regulation mode | DC speed regulation |
| Power | 220V50Hz |
| Machine Weight | About 200kg |
TengFei TF-601 Vibration Tester Packing list
Host x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
