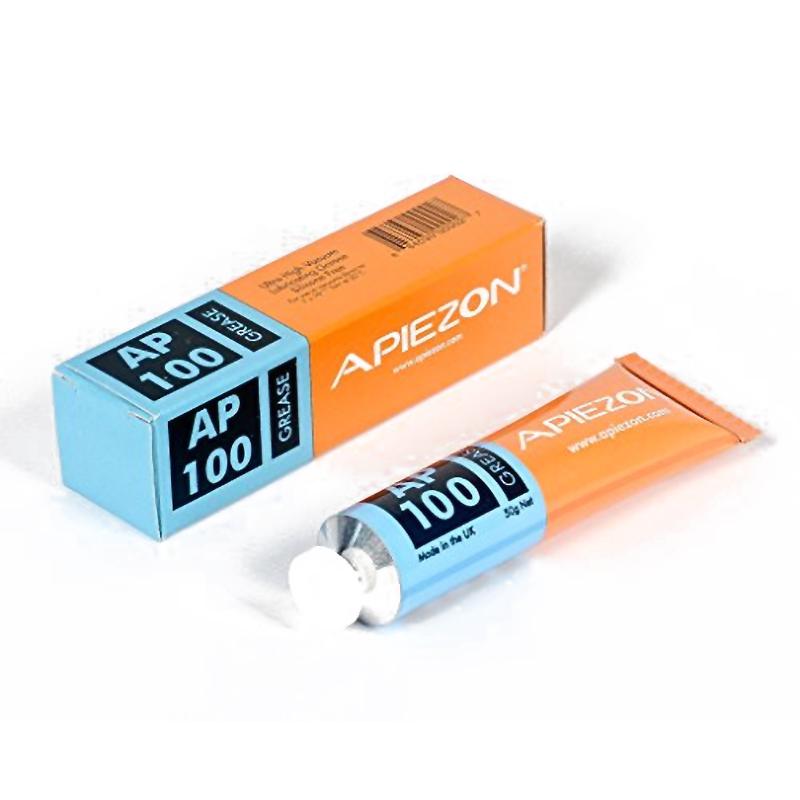

APIEZON APIEZON AP100-50G ultra-high vacuum grease without silicon Temperature range 10~30 ℃

Introduction

Apiezon AP100-50G Vacuum Grease is:Apiezon AP100 series vacuum grease with a content of 50g.Apiezon AP100It is a silicone-free vacuum grease and grease lubricant. Containing PTFE, AP100 exhibits an extremely high degree of lubricity and has been proven to be 8 times the standard level of lubrication, making it a petroleum-based grease.

Apiezon AP100 Ultra High Vacuum Grease is typically used in ambient (typically 10 to 30°C / 50 to 86°F) environments. If you're looking for a grease that can operate at higher temperatures, Apiezon AP101 or Apiezon H grease may be a better fit.

Features

Apiezon AP100 is a silicone-free ultra-high vacuum grease with the following features:

1. It has anti-jamming characteristics, making it an effective protection and lubricant in the ultra-high altitude

2. It has a particularly high level of lubricity

3. The low vapor pressure at 20°C is 7 x 10 at 20°C^-11torr

4. It is recommended to use it at room temperature

5. No contamination problems associated with silicone-based greases, such as 'creep' or 'retention'

6. Easy to clean and remove, operate using hot water and glassware detergent aqueous solution, hydrocarbon or chlorinated solvent

Applications for the Apiezon AP100

1) Apiezon AP100 ultra-high vacuum grease is commonly used to protect stepper motors and gearboxes from corrosion and wear, especially when they are subjected to high load conditions.

2) AP100 is also used to prevent plugging of plugs, faucets and small metal fasteners.

3) The creep resistance of Apiezon AP100 benefits scientific and semiconductor users in the same way. The AP100 helps to improve the technical accuracy of the analysis and improves the yield of semiconductor manufacturing due to the avoidance of contamination.

4) In addition, AP100 ultra-high vacuum grease is also used in surface coating applications where silicon contamination can lead to poor surface adhesion and defective paint defects.

compatibility

Apiezon AP100 is compatible with a wide range of o-ring materials, including: fluoroelastomers, silicones, nitriles (> 30% nitrile content), nylon, polyurethane, polyethylene, and polypropylene

Apiezon AP100 has a hydrocarbon matrix and is therefore incompatible with the following substances: EPDM, EPDM, butyl rubber, PVC seals

Retention period

Apiezon AP100 has a shelf life of 10 years (from the date of manufacture) when stored unopened in its original packaging and stored at ambient temperature.

Vacuum grease x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
