BOZHEN 101-0A digital Drying Oven temperature up to 300 ℃ Heating power 1.6KW

Introduction

The 101-0A digital Forced Air Drying Oven is used for drying, baking, wax melting, heat treatment and other heating in industrial and mining enterprises, laboratories and scientific research units, and is not suitable for the drying of flammable and explosive materials, so as not to cause explosion.

Features

1. The box body is made of arc argon welding, the outside of the box is made of good steel plate, and the inner tank is sprayed with high-temperature silver paste, which is corrosion-resistant and high-temperature resistant. The design and color are synchronized with the international level, and the shape is more beautiful and novel.

2. Built-in circulating ventilation makes the temperature more uniform

3. It is equipped with a tempered glass door, which can clearly observe the changes of the sample and does not affect the temperature loss.

4. Digital display temperature, intuitive and clear.

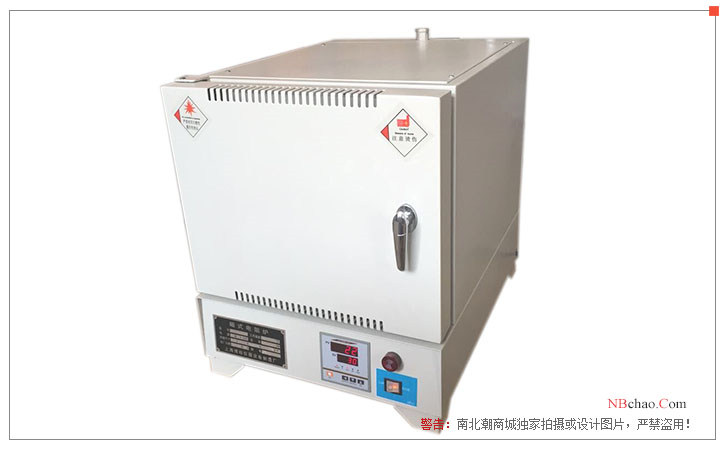

Display diagram

Materials and features

1. Temperature control instrument: The product adopts comprehensive electromagnetic compatibility design and humanized menu design, and precision temperature control technology for temperature control, which makes the equipment easy to operate and solves the shortcomings of the previous control technology that requires multiple parameter tuning and temperature overshoot. Digital display, clear and intuitive value, after setting the temperature, the instrument controls the heating by itself, and automatically keeps the temperature. Precise and stable temperature control.

2. Insulation layer: high-performance insulation structure. From the inside to the outside, there is an inner cavity, an inner shell, ultra-fine glass fiber, and an air interlayer, and the heat loss of the inner tank is less. The inner tank and door tank mechanism are unique, which greatly reduces the external heat transmission of the inner cavity.

3. The internal structure of the box: the resistance wire placed at the bottom of the box is heated, and the heat is discharged forward through the side air duct to form a reasonable air duct, which can make the hot air fully convective and make the temperature in the box as uniform as possible.

4. The external structure of the box: it adopts frame design and is durable. The shell is made of cold-rolled steel plate, the surface is painted at high temperature, and the international popular color is used, light gray, and the shelving in the studio can be adjusted arbitrarily according to the user's requirements. The inner tank is made of good steel plate, and the surface is sprayed with high-temperature resistant and corrosion-resistant silver paste, which makes the studio more convenient to clean;

5. Observation window: The box door has an independent glass door, which is convenient for users to observe, and the use of nano material door seals and insulation materials makes the performance of the whole machine more superior;

6. Adjustable new air inlet: control the amount of air in and out of the studio, and the top of the box is equipped with an exhaust port that can close or adjust the displacement to play the role of air exchange.

7. Sensor: PT100 platinum resistor;       Heating method: heating at the bottom of the resistance wire.

Meets standards

JB/T5520 "Technical Conditions for Drying Ovens" national industry standard.

host X1, operation manual X1, warranty card X1, certificate of conformity X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
