BOZHEN 101-4AD digital Drying Oven over-temperature alarm Power 5KW

Introduction

Bozhen 101-4AD digital display blower Drying Oven is a useElectric Forced Air Drying Oven with intelligent digital thermostat temperature control,The inner tank is made of good steel plate, sprayed with high-temperature silver paste, wear-resistant and high-temperature resistant, and the maximum working temperature is 300 °C.101-4ADstudioThere is size1000x800x800mmUsed for various sample insertions.Forced Air Drying OvenSuitable for baking, drying, heat treatment and other heating, industrial or laboratory use. (However, it is not suitable for items with toys to be placed in a Drying Oven to avoid detonation and explosion)

101-4ADThe working temperature of the digital Forced Air Drying Oven can be raised from room temperature to the maximum temperature, and the working temperature can be arbitrarily selected within this range, and the temperature can be kept constant by the automatic control system in the box after selection.

In addition, it is equipped with an electric blower to promote the mechanical convection of indoor hot air and make the indoor temperature more uniform. The intelligent digital thermostat is used to control the temperature, which is more precise than the old-fashioned thermal expansion controller, and the reading is intuitive, the sensitivity is high, and the operation is simple, which is the satisfactory drying equipment for factories and scientific research units.

Structural

The box has a studio for placing the sample, there is a sample shelf in the studio, the sample can be placed on it for drying, if the sample is larger, the shelf can be removed, there is a considerable thickness of insulation between the studio and enclosure, and the glass fiber is used as the insulation material. There is a glass door inside the door for observation of the situation in the studio. Opening the exhaust valve can change the air in the studio to obtain freshness, and it can also be connected to the exhaust gas duct to make the indoor air not affected. The temperature is automatically controlled by the digital display controller PID, and the thermostat, relay and all electrical control equipment are installed in the control layer on the side of the box, and the control layer has a side door that can be removed for inspection or repair of the line.

Over-temperature alarm device, when the thermostat is over-temperature or out of control, the buzzer alarm reminds the user to cut off the power supply and troubleshoot, which can avoid unnecessary losses and troubles.

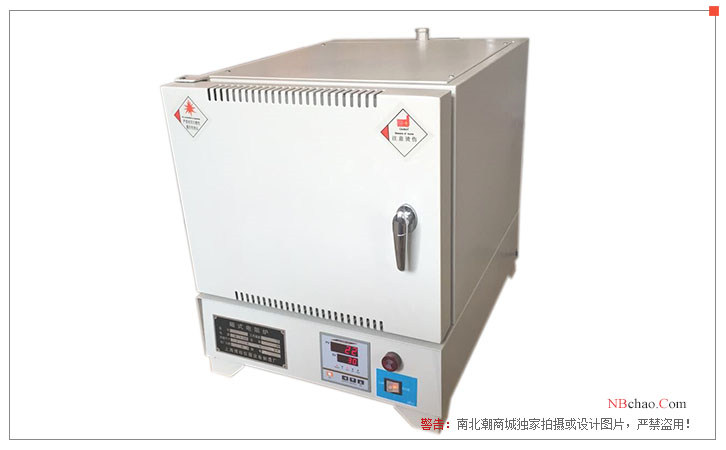

Product display

The whole machine X1, the operation manual X1, the warranty card X1, and the certificate of conformity X1.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
