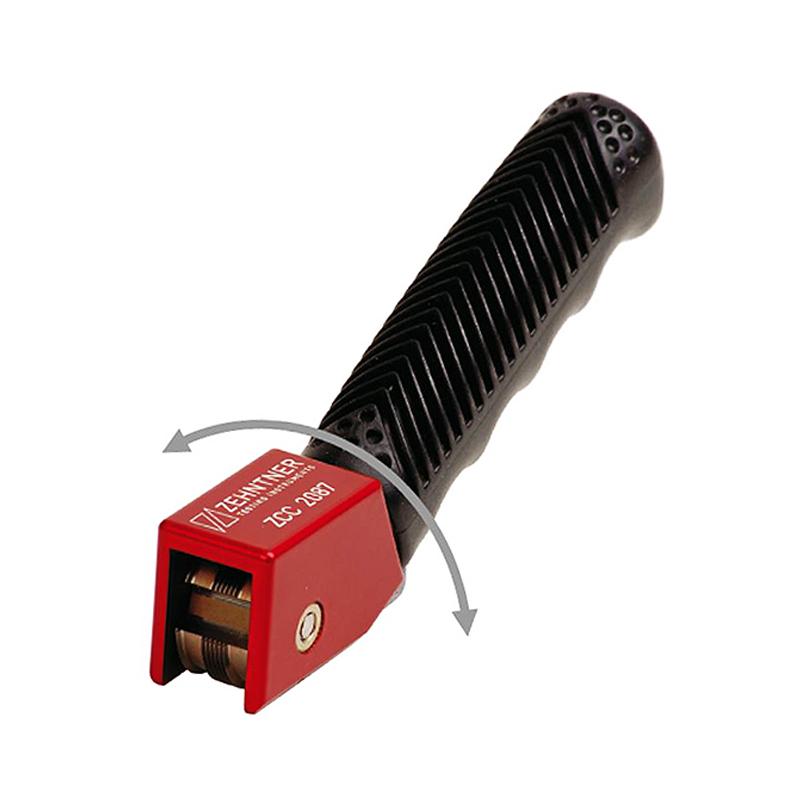

Zehntner ZCC2087.1 cross-cut Tester ISO DIN EN 25 grid head 1mm pitch

Product name: Hundred grid knife (hatch knife, grid testing machine)

Model: ZCC2080.1, ZCC2080.3, ZCC2087.1, ZCC2087.2, ZCC2087.3, ZCC2087.4, ZCC2087.5, ZCC2087.6

Brand: Swiss Zehntner

Introduction

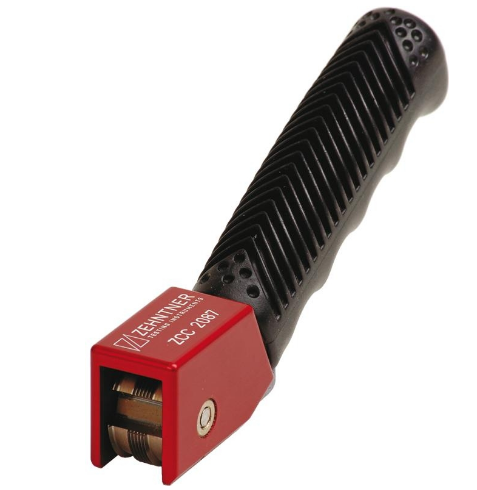

ZCC2080.1 ZCC2087.5 Hundred-grid knife is also called square testing machine or hundred-grid testing knife. The Cross-Cut method is a simple method to test the adhesion of paint, and is suitable for both single-layer and multi-layer baking paint. Use a standard thin gauge or multiple blades to make a 90-degree cross cut on the paint surface to determine the paint adhesion. The ZCC2087 hundred-grid knife adopts a "carbon tungsten steel six-sided rotating ball knife", which is divided into 25 grids and 100 grids. The newly designed elastic ergonomic grip can avoid unilateral side scraping caused by uneven force application, making the test more accurate.

Standards compliant

ISO, DIN, EN, ASTM, prEN, NCCA, ECCA

Technical specifications

ZCC2080.1 Folding thin gauge, 1mm pitch

ZCC2080.3 Folding thin gauge, 3mm spacing (special for road marking paint)

ZCC2087.1 ISO DIN EN 25 grid cutter head, 1mm spacing

ZCC2087.2 ISO DIN EN 25 grid cutter head, 2mm spacing

ZCC2087.3 ISO DIN EN 25 grid cutter head, 3mm spacing

ZCC2087.4 ISO DIN EN 25-grid cutter head, 1/2/3mm pitch switchable

ZCC2087.5 ASTM100 grid cutter head, 1mm spacing

ZCC2087.6 ASTM25 grid cutter head, 2mm spacing

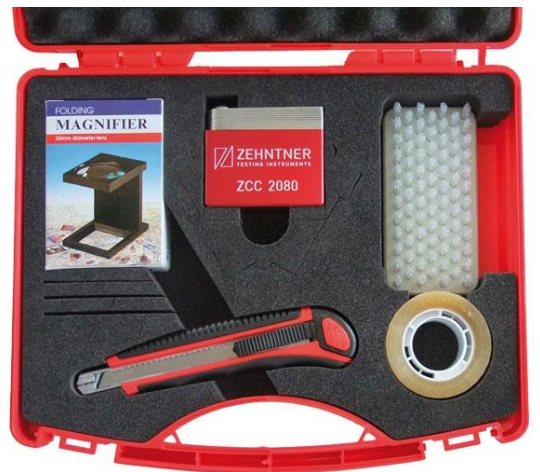

Zehntner ZCC2080.1 ZCC2087.5 standard configuration of hundred-grid knife:

ZCC2080.1K: cutter head, tape, storage box

ZCC2080.1G: cutter head, magnifying glass, brush, tape, storage box

ZCC2087.1: cutter head, magnifying glass, brush, 1 roll of tape, hexagonal wrench, storage box

ZCC2087.2: cutter head, magnifying glass, brush, 1 roll of tape, hexagonal wrench, storage box

ZCC2087.3: cutter head, magnifying glass, brush, 1 roll of tape, hexagonal wrench, storage box

ZCC2087.4: 3 blades, magnifying glass, brush, 1 roll of tape, hex wrench, storage box

ZCC2087.5: cutter head, magnifying glass, 2 rolls of tape, hexagonal wrench, storage box

ZCC2087.6: cutter head, magnifying glass, 2 rolls of tape, hexagonal wrench, storage box

Cross-cut tester x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
