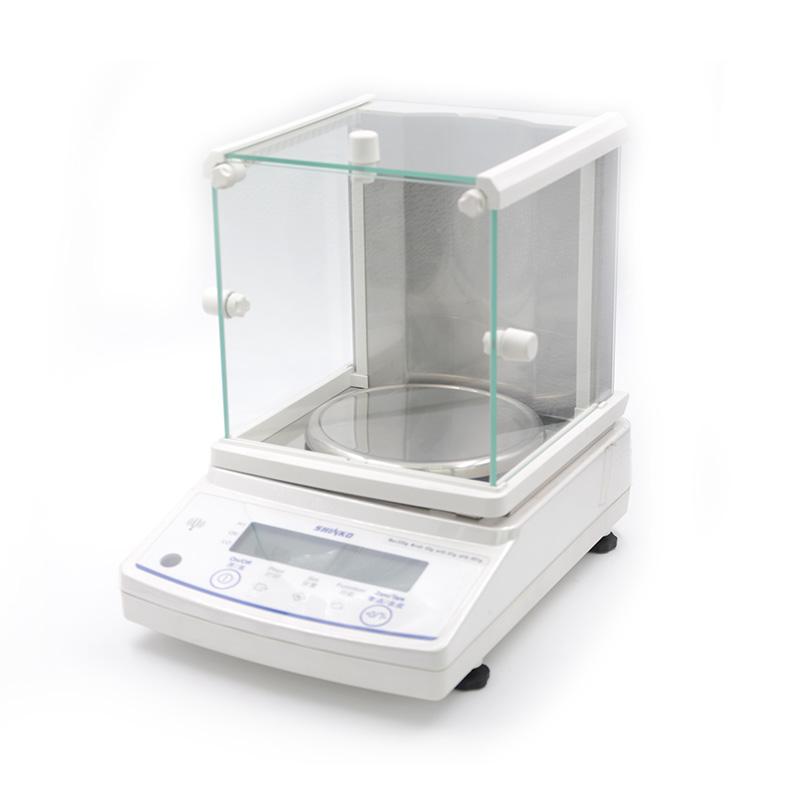

SHINKO Shinko AB323C Electronic Balance accuracy 0.001g Weighing up to 320g
SHINKO Shinko AB323C Electronic Balance is a laboratory one thousandth Electronic Balance with external weight calibrated, AB323C Electronic Balance with backlit display.
Shinko
AB323C
-
JINGHAI YP2001N Precision Electronic Balance 2000g/0.1g
$ 134.00 -
AE523C Electronic Balance 520g/1mg
$ 1044.00 -
AB105 parts per 100,000 Balance 100g external calibration
$ 2966.00 -
Electronic Balance Tianma TD10001 Accuracy 0.1g Range up to 1000g Metal shell
$ 159.00 -
HUAZHI PTY-124/223 Professional analytical balance 120g/220g
$ 1661.00
Introduction

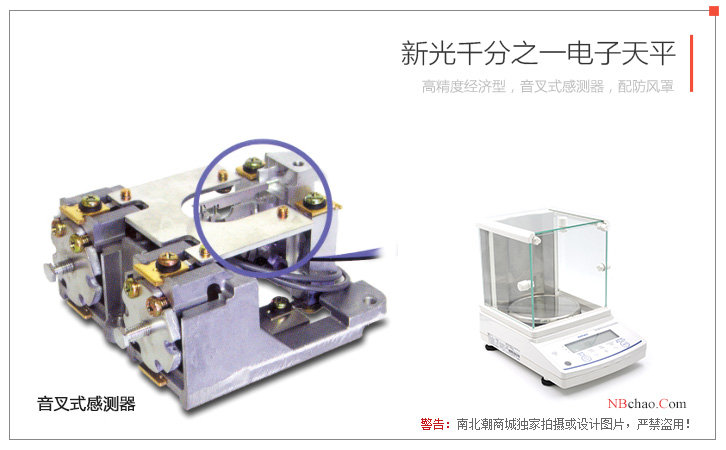

Shinko Shinko AB323C electronic balance is an economical, high-precision laboratory electronic balance for laboratory and industrial use.AB323C electronic balance uses the tuning fork sensor MMTS (Mono-Metal Tuning-fork Sensor) to improve the measurement speed, stability and resolution of the electronic balance.
Product features

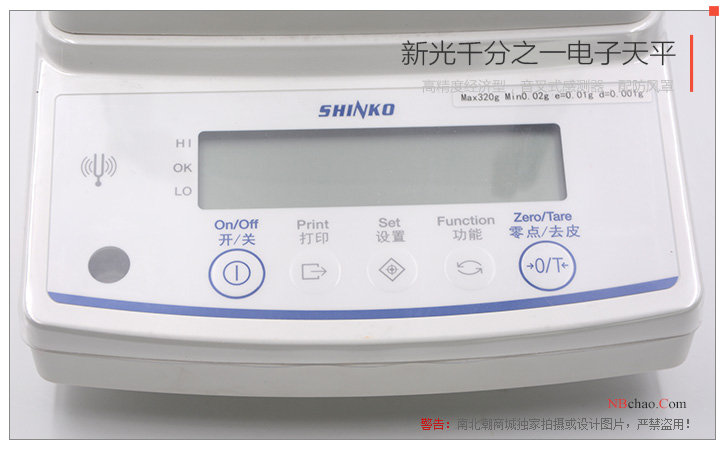

1. Backlit LCD display
2. The function of counting parts, the number of parts can be calculated
3. Measurement percentage display
4. Set the judgment between too heavy and too light
5. Weighing, 12 kinds of weighing unit selection, including g, ct, oz, lb, ozt, dwt, GN, tl (Hong Kong), tl (Taiwan), tl (Singapore, Malaysia), momme, tola.
6. Equipped with a Wind Shield

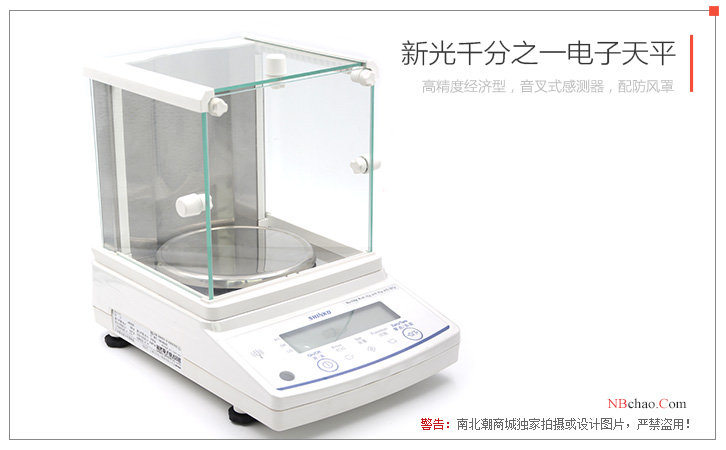

Presentation diagram
Shinko AB323C Electronic BalanceSpecifications
| LIST | VALUE |
|---|---|
| Weighing range | 0~320g |
| Readability | 1mg |
| Nonlinear error | ±0.003g |
| Repeatability Error | 0.001g |
| Adjustment | Externally calibrated |
| Stabilization time | 3s |

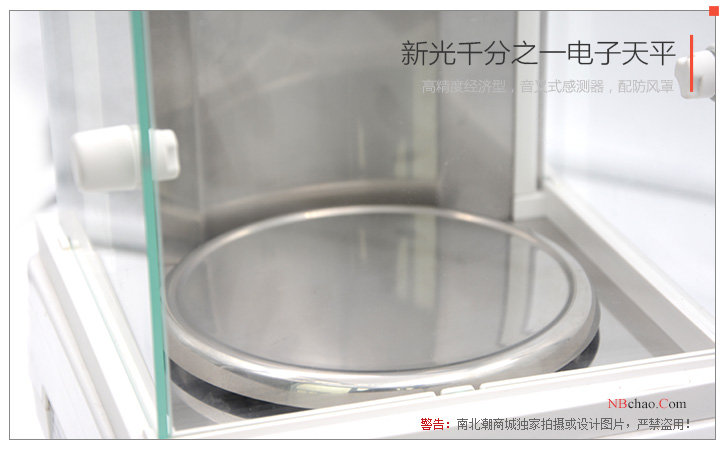

| Pan Size | Φ140mm |
| Net Weight of instrument | About 3.5kg |
| Dimension | 293 * 202 * 206Mm (with wind hood) |

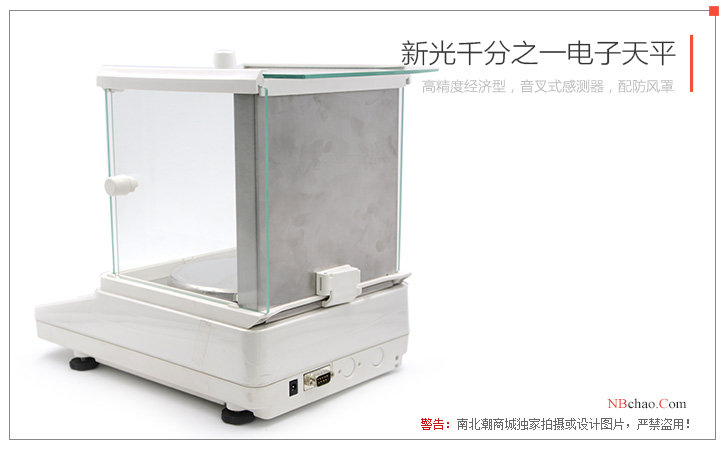

| Interface | RS-232C |
Shinko AB323C Electronic Balance Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
