TROPHY /OTZ 100x200x0.28mm without punching, tinplate, thickness 0.28mm
TROPHY 100x200x0.28mm tinplate is not punched, the tin plating amount is E4, 100x200x0.28mm tinplate is suitable for powder coatings Gloss, bending, Hardness, adhesion and other experimental tests.
OTZ-
Test grade tinplate 50 * 120 * 0.28 rounded corners, experimental special tinplate
$ 155.00 -
XINHEFENG 120 * 70 * 0.8 Paint Test steel plate right angle non-porous 100 pieces
$ 117.00 -
Test grade tinplate 25 * 120 * 0.4 rounded corners, experimental special tinplate
$ 158.00 -
XINHEFENG 200 * 150 * 0.8 Paint Test steel plate right angle non-porous 100 pieces
$ 203.00 -
PUSHEN PS 2931/1 tinplate 120 * 25 * 0.28mm 500pcs/bag
$ 110.00
Introduction
Twards100x200x0.28 tinplateThe thickness of the iron plate is 0.28mm, in line with GB2520 standard, and the tin plating on the surface can prevent the tinplate from rusting, and the chemical stability is good.100x200x0.28 tinplateIt is divided into two types: non-perforated and with 7mm holes, which are suitable for the performance testing of coatings, including adhesion, hardness, impact, flexibility, bending, drying time and other experimental coating film preparation.
Raw material: 0.28mmPacific tinplate(Made in Japan, better quality)
Parameters
| Model | Thickness (mm) | Dimensions (mm) | WEIGHT (KG) | wrap | Amount of tinning | Hardness rating | remark |
| 100x200x0.28 (without punching) | 0.28 | 100x200 | 22 | Each package is 500 tablets | E4 | T52/T54 (random with factory batch) | Rounded corners, no perforations |
| 100x200x0.28 (with 7mm hole) | Rounded corners with 7mm holes |
Note: The tinplate sold in the North and South Tide Mall is sold in whole packages, with 500 pieces per package (free shipping including tax).
Applications
100x200x0.28 tinplateIt is suitable for coatings, inks, paints, chemicals, automobiles and other industries, and is widely used in related industries in CHINA.

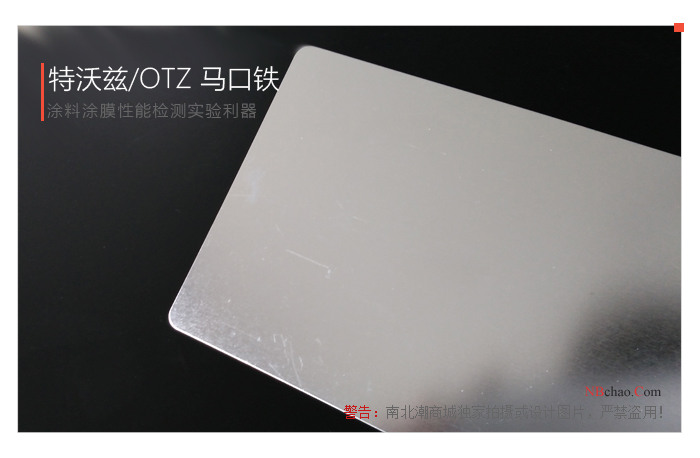

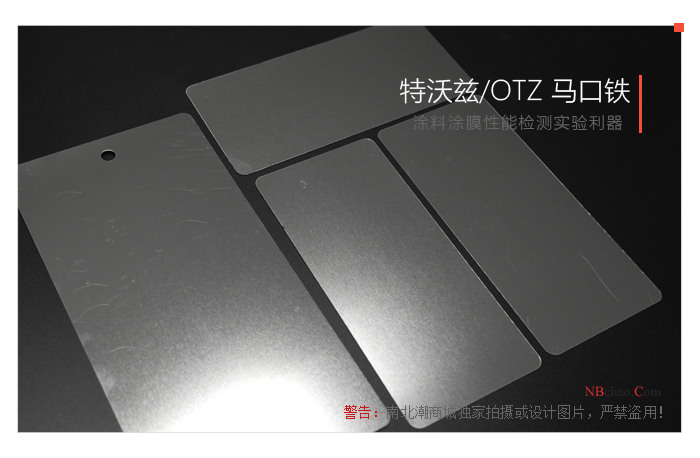

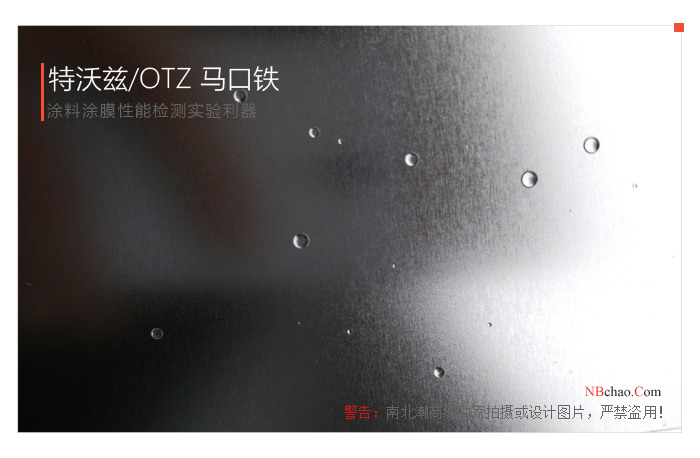

Actual picture of the product

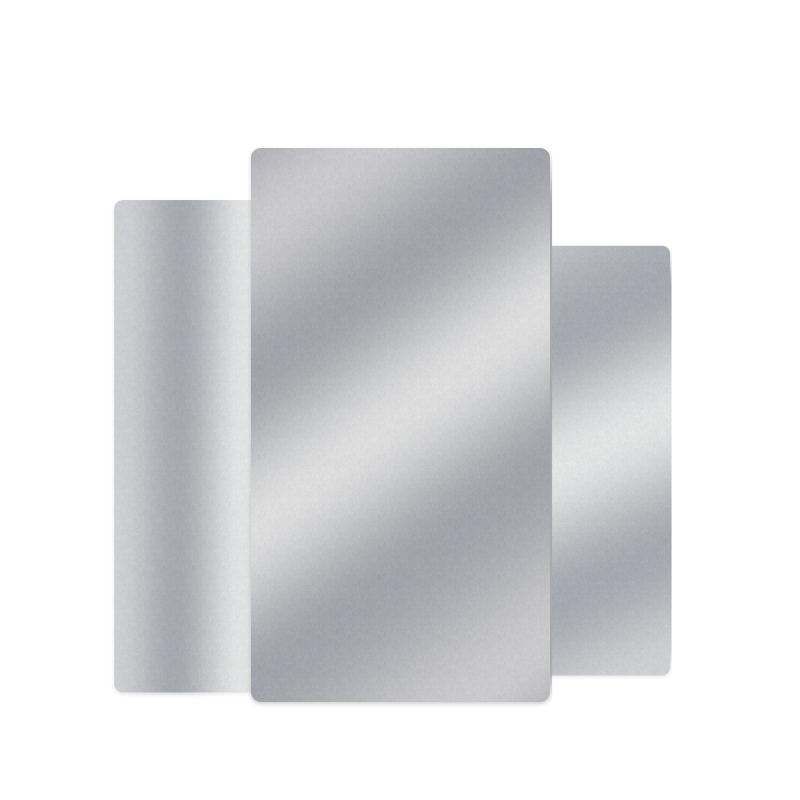

OTZ 100x200x0.28 TinplateSpecifications
| LIST | VALUE |
|---|---|
| Model | 100 * 200 * 0.28 (without punching) |
| Thickness (mm) | 0.28 |
| Product size | 100*200mm |
| Weight (kg) | 22 |
| Encasement | 500 pieces/bag |
| Tin plating amount | E4 |
| Whether to punch holes | No |
| corner shape | Rounded corners, no punching |
OTZ 100x200x0.28 Tinplate Packing list
Tackle iron plate x1 (1 pack of 500 pieces)
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
