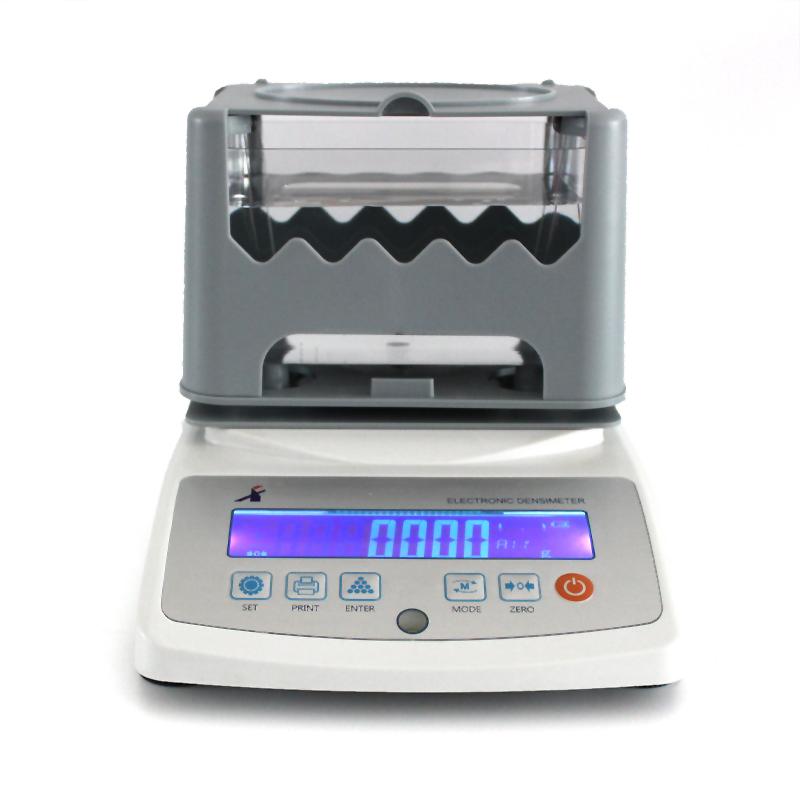

XIONGFA MDJ-1200A Solid Density Meter measurement range 0.01g~ 1200g
Using German HBM imported Sensors, using integrated molding corrosion-resistant large sink design, optional liquid accessories, you can test the liquid Density and concentration.
XIONGFA
MDJ-1200A
-
GM12002J density Electronic Balance high-precision solid Density Meter 1200g/0.01g
$ 689.00 -
XINGYUN JA203M-L Liquid Density Scale 210g/0.001g
$ 506.00 -
Shangtian Jingyi YM3002J density Electronic Balance Liquid specific gravity Density Meter 300g/0.01g
$ 478.00 -
SDPTOP JA3003J Electronic Density Balance Maximum weight 300g
$ 655.00 -
XIONGFA XF-120FM Powder Density Meter Measurement range 0.001~ 120g
$ 459.00
Introduction
Xiongfa MDJ-1200A Solid Density Meter adopts imported sensors from HBM, Germany, and cooperates with the density components independently produced by Xiongfa to quickly test the density and volume of various solids! Easy to operate and fast!
Features
1. Directly read the density and volume of any solid block, particle, or floating body with a density > 1 or < 1.
2. It has the functions of temperature compensation setting and solution compensation setting, more humanized operation, and more in line with the needs of on-site operations.
3. The density measuring table is integrally formed by injection molding, which is convenient and quick to install and has a longer service life.
4. It adopts the one-piece corrosion-resistant large Water Tank design to reduce the error caused by the buoyancy of the hanging fence line, and it is also convenient to test relatively large block objects.
5. It has the functions of upper and lower limits of density, which can determine whether the specific gravity of the object to be tested is qualified or not, and is equipped with a buzzer device.
6. With RS-232C computer interface, it can be easily connected to PC and printer.
7. Built-in battery, equipped with Wind Shield, more suitable for on-site testing.
8. Optional liquid accessories, you can test the density and concentration of the liquid.
Application
Rubber, plastic, wire and cable, electrical appliances, sports equipment, tires, glass products, hard alloys, powder metallurgy, magnetic materials, seals, ceramics, sponges, EVA materials, foam materials, alloy materials, friction materials, new Materials research, battery materials, research laboratories.
Product principle
MDJ-1200A solid density meter complies with the standards ASTM D792, ASTM D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 2781, ISO 1183, ISO2781, ASTMD297-93, DIN 53479, D618, D891, ASTM D792-00, JISK6530, ASTM D792-00, JISK6530… and other standard specifications.

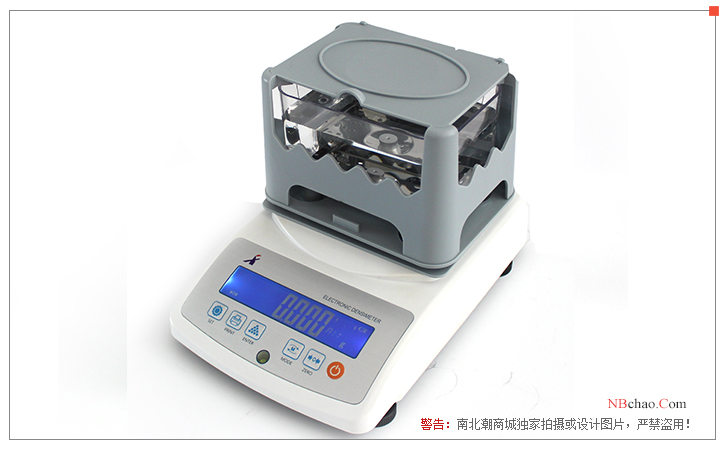

Pictures
XIONGFA MDJ-1200A Solid Density MeterSpecifications
| LIST | VALUE |
|---|---|
| Weighing range | 0.01g~1200g |
| Density Accuracy | 0.001g/cm³ |
| Density Measurement range | 0.001~99.999g/cm³ |
| Test time | About 5 seconds |
| Measurement type | Solids, Granules, Films, Floats |
| Results show | Weight, Density, Volume |
| temperature compensation | Solution temperature can be set to 0~100 ℃ |
| solution compensation | Solution can be set to 19.999 |
XIONGFA MDJ-1200A Solid Density Meter Packing list
Host x1, sink x1, measurement table x1, forceps x1, power transformer x1, 100g weight x1, windproof dust cover x1, a set of particle measurement accessories, a set of float measurement accessories x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
