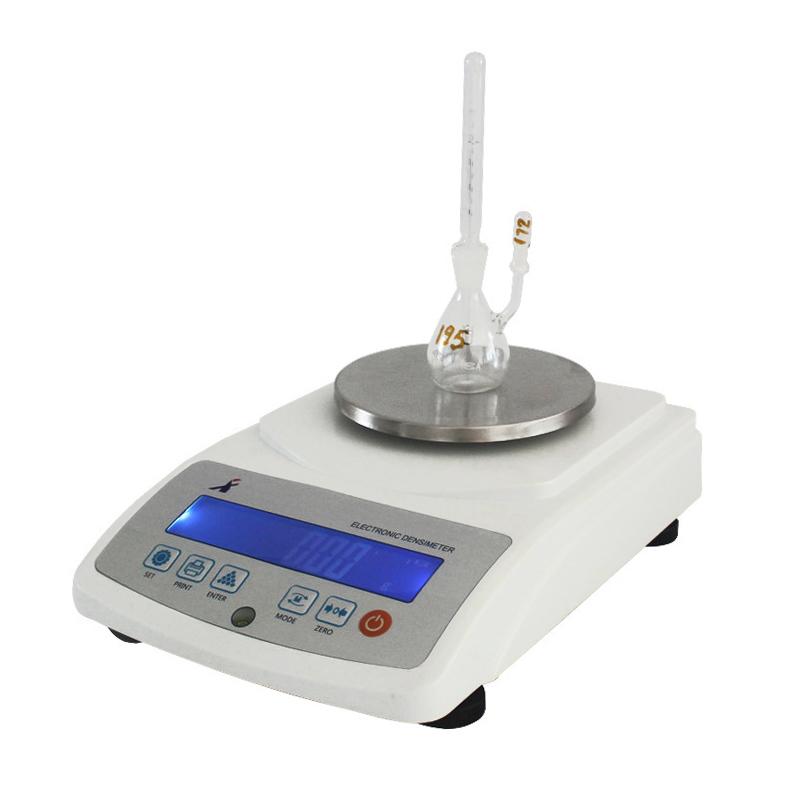

XIONGFA XF-120FM Powder Density Meter Measurement range 0.001~ 120g
XIONGFA XF-120FM Powder Density Meter is suitable for density testing of pigments, cement powders, fireproof materials, ceramic materials, natural Stone and other powder materials. The XF-120FM powder Density Meter test time is about 60 seconds.
XIONGFA
XF-120FM
-
GM12002J density Electronic Balance high-precision solid Density Meter 1200g/0.01g
$ 689.00 -
FANGRUI Instrument ZMD-1 Electronic Density Meter density range 0~300g/cm3
$ 601.00 -
XINGYUN JA203M-A water-absorption Density Scale 210g/0.001g
$ 506.00 -
XINGYUN JA203M-P Powder Density Scale 210g/0.001g
$ 475.00 -
XIONGFA MDJ-300A Solid Density Meter measurement range 0.01g~ 300g
$ 298.00
Introduction
The measurement range of Xiongfa XF-120FM powder density meter is 0.001~120g, and the density measurement range is 0.001~99.999g/cm3. The XF-120FM powder density meter uses Archimedes' impregnation volume displacement method and a special pycnometer to accurately read the density.
Features
1. Direct reading of any powder, the density of the powder.
2. Simple operation, high precision and good repeatability.
3. It can be set by temperature compensation and solution compensation, which is more humanized operation and more in line with the needs of on-site operations.
4. It has the function of upper and lower density limits, which can determine whether the specific gravity of the object to be tested is qualified or not. It is equipped with a buzzer device.
5. With RS-232C computer interface, it can be easily connected to PC and printer.
5. Built-in battery, equipped with draft shield, more suitable for on-site testing.
Applications
Vulcanized rubber, non-foamed plastics, carbon true density, rock, coal true density, asphalt coke true density, ordinary abrasive density, pigment density, solid and semi-solid petroleum asphalt density, pigments, cement powder, fireproof materials, ceramic materials, natural stone, coal-water slurry density, carbon material true density boiling method, soil true density testing method, ionic resin wet true density, ionic resin wet true density, powder true density research laboratory.
Meets standards
According toGB/T533-A 、GB/T1033.1、 GB/T6155、GB/T23561、YB/T5300、JB/T7984.3、GB/T 1713、
GB/T8929、GB/T1713、GB/T208、GB/T5071、QB/T1010、GB/T9966、GB/T18856 、GB/T24203、GB/T8330、SL-237etc.

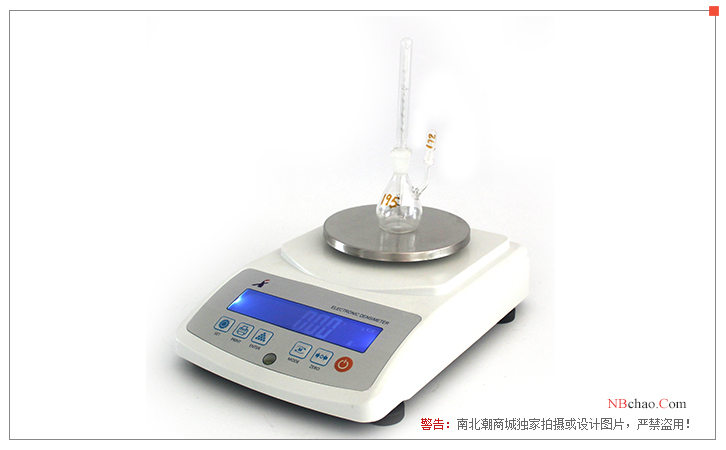

Product display diagram
XIONGFA XF-120FM Powder Density MeterSpecifications
| LIST | VALUE |
|---|---|
| Weighing range | 0.001~120g |
| Density Accuracy | 0.001g/cm³ |
| Density range | 0.001~99.999g/cm³ |
| test time | About 60 seconds |
| The result shows | Density |
XIONGFA XF-120FM Powder Density Meter Packing list
Specific gravity meter host x1, Specific Gravity bottle x1, 50CC beaker x1, powder spoon x1, dropper x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
