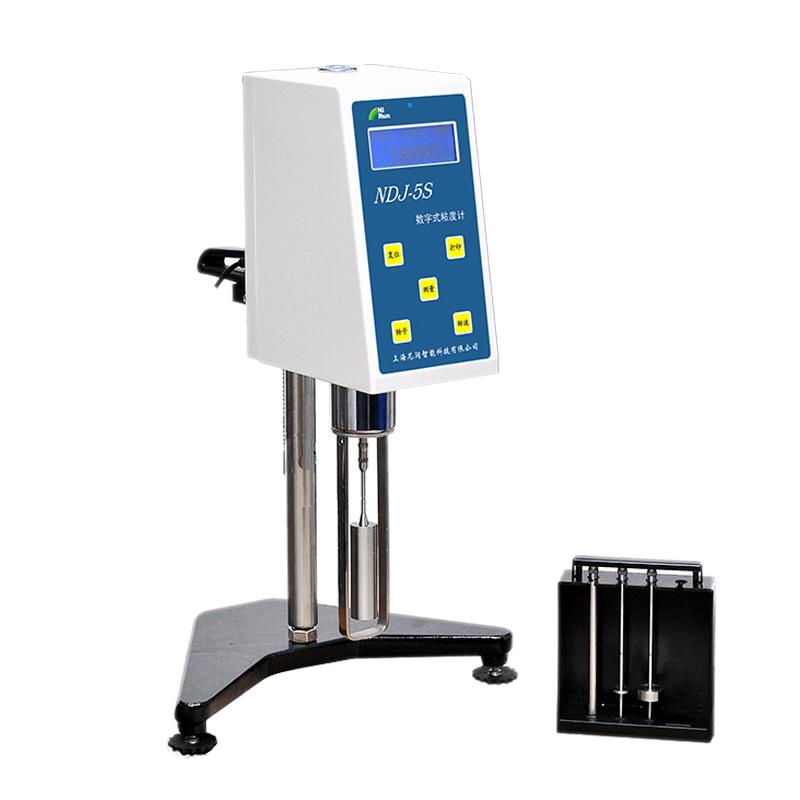

NIRUN NDJ-5S Digital Rotational Viscometer 10~100,000 mPa • s

NIRUN NDJ-5S digital Viscometer is an upgraded replacement of the original mechanical NDJ-1 type Viscometer/Viscosity Tester. The measuring range of the NDJ-5S Digital Rotational Viscometer is 100,000 mPa • s, digital display type.

Brand

SKU: NB008740

NiRun

Model

Service

NiRun shop

Information

Datasheet Catalog Manual

What else did others buy

HuiNuo NDJ-8S Digital display swirl/spin Viscometer Experimental Viscosity meter 2 million CP

$ 556.00
HUINUO LVDV-2 Digital Rotational Viscometer 6 million mPa · s 200rpm

$ 1459.00
HUINUO SNB-2 digital display Rotational Viscometer 6 million CP

$ 1061.00
NIRUN LPDV-1 Portable Digital Viscometer Measurement range 25~ 150,000 mPa · s

$ 1224.00
Ultra low viscosity adapter LCP (T) (with dedicated temperature sensor)

$ 2682.00

Genuinegoods

NiRun NDJ-5S Digital ViscometerOverview
Specifications
Comments
FAQs

NDJ-5S

Digital Viscometer

Technical advantages

1. Applying NIRUN's patent, it overcomes the disadvantage that the domestic (CN) instrument can only sample once in one revolution, and realizes the technology of multiple sampling in one revolution.

2. High subdivision drives the stepper motor to rotate, the speed is accurate and stable, and the frequency change of AC Voltage does not affect the accuracy of viscosity measurement.

3. For thixotropic non-Newtonian liquids, the timing function of the instrument can ensure good consistency data.

4. Direct drive by stepping motor, no noise, convenient speed change, clear speed display, good reliability, no jitter phenomenon.

5. The LCD liquid crystal has a blue backlight function, which directly displays the viscosity, speed, percentage torque, and the maximum viscosity value of the rotor that can be measured at the current speed. Viscosity values show a continuous change. There is an alarm sound prompt when the measurement range is exceeded.

6. Computer full-scale linear calibration, the measurement accuracy is ±1.0% of the full scale.

7. Switching power adapter, wide power input, good anti-interference.

8. RTD temperature probe is optional to monitor the sample temperature in real time.

9. Optional RS232 interface, real-time printing of sample measurement data through a micro-printer, saving labor.

Application

NDJ-5S digital viscometer is suitable for ink, glue, latex , solvent - based adhesive , polymer solution , petroleum , paint , solvent , cosmetics , milk products , medicine , fruit juice and so on.

Pictures

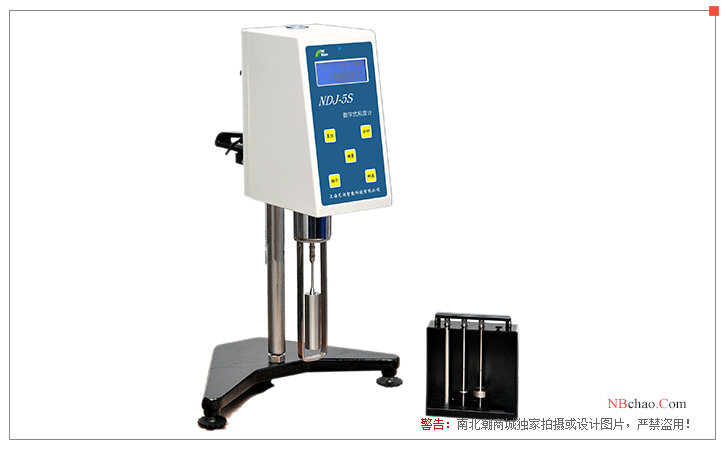

NIRUN NDJ-5S digital viscometer display

Optional

Ultra Low Viscosity Adapter (Spindle 0)

micro printer

Special viscosity constant temperature Water Tank

RTD temperature probe

standard oil

remote control

NiRun NDJ-5S Digital ViscometerSpecifications

LIST	VALUE
Display	LCD liquid crystal with blue backlight
Measuring range	10~100000mPa·s
Rotor Specifications	1#、2#、3#、4#
Rotor speed	6/12/30/60rpm
Reproducibility	±0.5%F.S
Measurement Accuracy	±1%
Power	AC100-240V，50Hz/60Hz，DC17V1.2A
Data Interface	RS232
Weight	9.6kg
Collection method	continuous acquisition
Encasement material	Five-layer cardboard
Capacity	300~400ml
Capacity	400Ml (self-prepared)
Lifting system	PE lifting system
Bearing system	ruby
Torque material	beryllium bronze
Control system	microcomputer
Encasement	aluminum alloy

NiRun NDJ-5S Digital Viscometer Packing list

Host x1, one rotor each for 1 #, 2 #, 3 #, and 4 #, manual x1, warranty card x1.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Measure the viscosity of latex, is this Viscometer suitable?

[A]

Latex viscosity can be measured, please pay attention to choose the viscosity range suitable for your sample.

[Q]

Can the NDJ5S Digital Viscometer display the torque value?

[A]

Hello, it's OK.

[Q]

Can this Digital Viscometer be compatible with ISO 12634?

[A]

[Q]

Printing ink viscosity needs to be tested. Printing ink viscosity range is more than tens of thousands, with temperature function. Please suggest it.

[A]

Hello, Fangrui's NDJ-9T has a temperature measurement function, and Nirun's NDJ-5S has no temperature display function. You can buy an RTD temperature probe separately.

[Q]

Hello, I used Nerun NDJ-1 mechanical Viscometer before to change it to a digital display. Which one is recommended?

[A]

Hello, you can choose Nerun NDJ-5S Digital Viscometer, which is an upgrade of NDJ-1.
