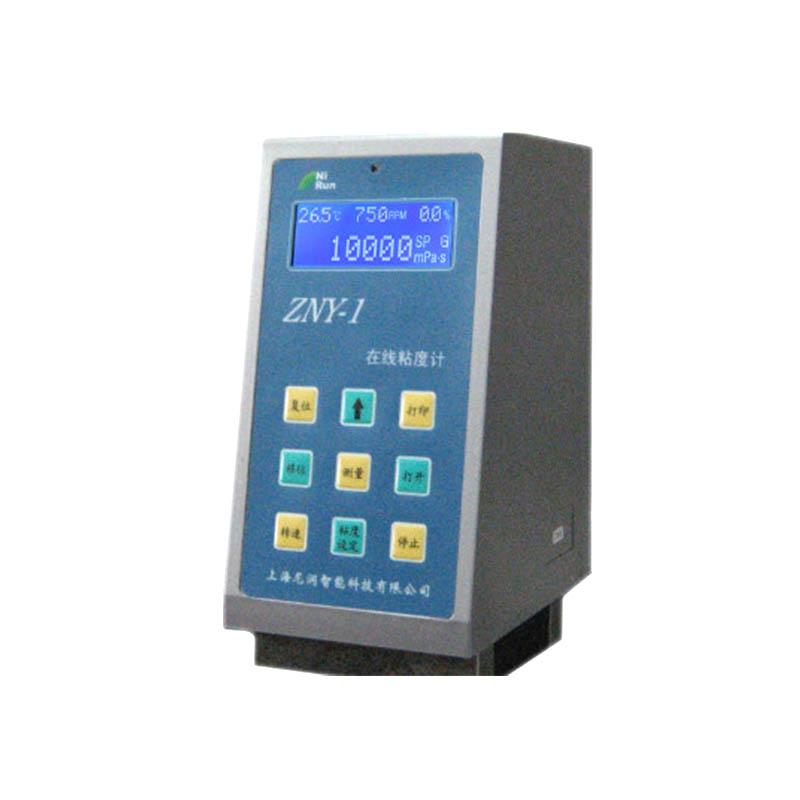

NIRUN ZNY-1 Online Viscometer measuring range 5~ 6 million mpa • s

technical features

1. Digital display, easy to install, operate and clean

2. Signal output RS232, 485, 4-20mA, switch signal

3. Viscosity range can be adjusted according to user needs

4. Optional built-in control circuit to achieve automatic viscosity control

5. Switch signal control time can be adjusted arbitrarily according to needs

6. remote control

Structural principle

The stepping motor rotates at a stable speed to drive the sensor piece, and then drives the rotor to rotate through the hairspring and the rotating shaft. If the rotor is resisted by the liquid, the sensor connecting piece of the hairspring and the sensor connecting piece of the stepping motor are at the same position. Conversely, if the rotor is subjected to the viscous resistance of the liquid, the hairspring will generate torsion to counter the viscous resistance, and finally reach a balance. At this time, the data is processed by the photoelectric sensor and the 16-bit microcomputer processor, and the liquid viscosity value is displayed. When the measured viscosity value is greater than the set viscosity value, the thinning solenoid valve can work according to the program design requirements. Control the viscosity of the liquid to be measured at about the set value viscosity. The program design can be decided according to the user's situation.

host x1, manual x1, warranty card x1, certificate of conformity X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
