Fungilab EVO Rotational Viscometer for more professional and functional viscosity measurement

The Fungilab Evo series is suitable for more specialized and versatile viscosity measurements

characteristic

Available languages

English/French/German/Catalan/Spanish/Italian/Japanese/Polish/Dutch/Portuguese/Chinese

More features of the new EVO series that contribute to viscosity measurements:

Color TFT screen for faster data recognition and reading

New keyboard touch interface: get the data you want with one click

LED display: find exactly what you want to do

New USB port: version 2.0 allows you to download data to your computer faster

Wi-Fi: The integrated system makes it easy to control the machine and obtain measurement results

More optional: FSP system

Data display settings:

Select speed: r.p.m.

Select Rotor: SP

Viscosity reading: cP (mPa·s) or cSt

Percentage of full scale: %

Sample temperature: oC or oF

Shear rate (with coaxial rotor): SR (s -1)

Shear force (with coaxial rotor): SS (N/m2)

Density (user-defined): g/cm3

Viscosity reading settings: Dynamic viscosity (CP or MPA•S) or kinematic viscosity (CST).
Instrument converter from SI to CGS

Program features:

Start and end times are set automatically

Up to 9 worker programs are stored

Customize the speed

Multi-step
slope

Self-test: Internal automatic viscosity calibration

Self-adjusting range: the full speed range of the full scale
PT100 temperature probe

Temperature and viscosity calibration can be performed by the user
Choose from up to 10 languages

Rotor:
The AISI316 size stainless steel rotor makes it easy to identify the rotor by the numbers and letters on the rotor when the rotor needs to be replaced due to changes in viscosity range

The following are the standards passed by our instruments:
BS: 6075, 5350 • ISO: 2555, 1652 • ASTM: 115, 789, 1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196,2336, 2364, 2393, 2556, 2669, 2849, 2983, 2994, 3232, 3236, 3716

EVO's data logger

Expert and Evo Premium:

With just one click, the user can easily generate the measurement results into an Excel spreadsheet, and our data loggers also allow you to easily import the measurement results into a PC.

FDB software for Evo Premium
Fungilab's FDB software has been developed specifically for the Evo Premium series. It allows the viscometer to easily set steps, slopes, and multi-step curves, and is also an important tool for observing the viscosity of different liquids.

Control Software:

This software was developed in-house by Fungilab and is used to create viscosity programs, record and read viscosity measurements in real time. The software is very intuitive, with a "Options Menu" that allows you to clearly see the entire program, and a "Help Menu" that allows you to read graphs and descriptive texts clearly, making your work more intuitive.

Standard configuration

Instrument main unit (marked with serial number) / Bracket, three-stage leveling knob / Standard rotor / Rotor protection return / Rotor holder / PT100 temperature probe / Power cable / CD data software / USB cable / Carrying case / Calibration certificate / Operation manual

Note: All parts (including the viscometer holder) are inside the carrying case

Technical parameters

> accuracy: ±1% of full scale

> Resolution:

Low viscosity adapter: 0.01

Viscosity below 10.000 cP: 0.1

Viscosity equal to or higher than 10.000 cP:1

> repeatability: 0.2%

> thermometer features:

Temperature range:

0℃ to +100℃

32ºF to 212.0ºF

Resolution: 0.1℃ / 0.1722ºF

Accuracy: +/- 0.1℃

Probe type: PT100

> operating conditions: 100-240 VAC, 50/60 Hz

fittings

APM
Small sample adapters

LCP
Low viscosity sample adapters

Heldal component
High viscosity sample adapter

Silicone standard oil

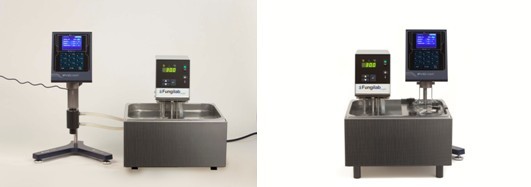

Thermostatic Bath

Universal adapter for all accessories

PPR Plugging System (Optional)

Note: The material of all accessories, including the temperature probe, can be adjusted according to the user's needs (high temperature resistance)

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
