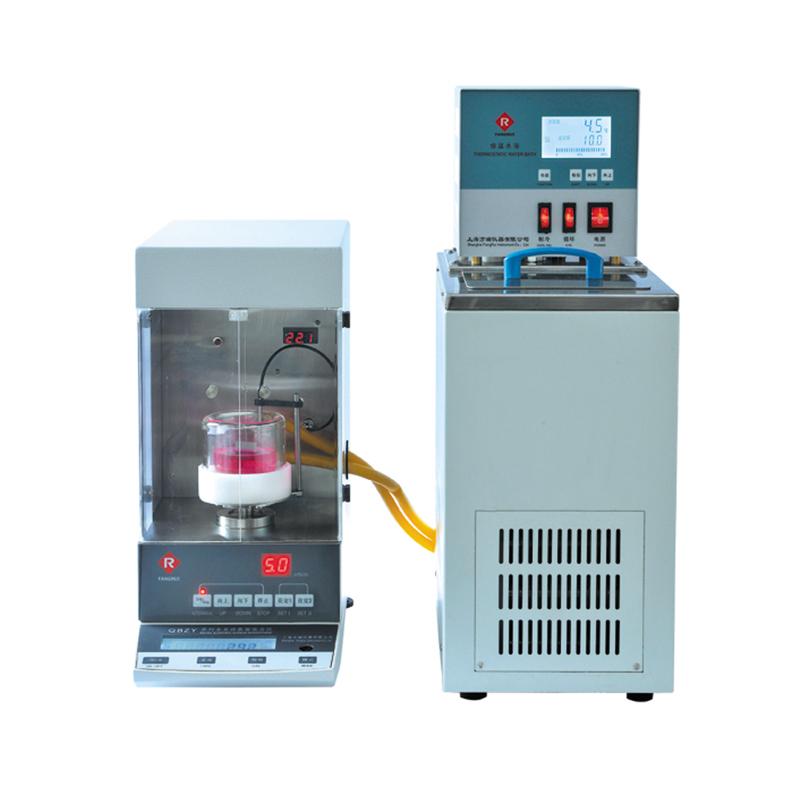

FANGRUI instrument BZY-2 Surface Tensiometer test range 0~400mN/m

Introduction

Surface tension is an essential factor that determines the properties of liquids such as solubility, wettability, foamability, coating and permeability. Surface tension analysis of a given liquid is often performed to study the physical behavior of that liquid relative to other liquids or solids. And this kind of research is the basic means of quality control in the process of industrialization. Fangrui Instrument QBZY-2 Surface Tensiometer is a professional-grade interface chemical analysis instrument specially developed to meet the user's needs for R&D and high-precision quality control in the process of interfacial chemical testing.

BZY-2 Surface Tensiometer has won a new national patent, patent number: 2011200652242

Features

1) Platinum plate and platinum ring are used in combination with two test methods;

2) Fully automatic measurement, when the platinum plate is tested, the displayed value is the surface tension value;

3) When using the platinum ring test method, the display value automatically locks the maximum force value of the sample, and then calculates the surface tension value through the supplied calculation software or the data processing software is automatically calculated by the computer;

4) Platinum ring size: wire radius is 0.185mm, ring radius is 9.55mm, ring circumference is 60mm;

5) Fully automatic measurement to avoid human operation error;

6) Automatic correction of the full scale, accurate and reliable data, excellent repeatability;

7) One-key clearing, instantaneous, zero position is stable and no drift;

8) Adopt international professional lifting platform drive technology, no vibration and noise;

9) The instrument has a reasonable structure, works independently, does not need any additional equipment (such as external computers, etc.), and can also be equipped with computers for data processing;

10) When using platinum plate, the surface tension of the liquid can be measured in real time, which is very practical for measuring samples containing surfactants or volatile substances, whose surface tension will change with time (data processing software is selected, the test curve can be recorded in real time, and the details of the change can be clearly obtained);

11) When using platinum plate test, it can automatically test the surface tension of medium and high viscosity liquid samples;

12) Both test methods can measure the interfacial tension between impartite mixed liquids, such as: oil/water interface;

13）Data processing software: automatically collect test curves, and the curves can be automatically enlarged, accessible, and printable. It can compare multiple test curves, and automatically calculate the surface tension value when using the platinum ring method;

14）Accuracy correction function: with 2 times of distilled water and pure ethanol as the standard, the overall test error of the instrument is automatically calibrated, which can ensure that the instrument is in the accurate state of the factory for a long time;

15）Automatic temperature compensation function: with 2 times of distilled water and pure ethanol as the standard, the test value of the sample at different temperatures is automatically summarized to 20°C;

16）A variety of temperature control options are included to meet different test requirements;

Scope of application

- Ink, ink, paint industry: analysis of wettability of printing/coating processes, product development and quality control

- Printing industry: development and wettability analysis of screen cleaning solution, wettability analysis of thin film

- Film industry: wettability analysis, quality control

- Detergent industry: Analyze the absorption rate and properties of surfactants, and study the appropriate concentration

- Chemical Aid Industry: Research on aggregation and diffusion behavior

- Cosmetics industry: Analysis of dispersion, stability and wettability of emulsions or suspensions

- Electroplating industry: Analyze the surface tension of electroplating baths and carry out quality control

- Pesticide industry: additive development, formulation, wettability analysis

- Nanofiber, powder research: fiber contact angle/hydrophilic angle analysis, dynamic contact angle analysis

- Petroleum industry: tertiary oil recovery interfacial tension characterization, oil flooding quality control, degradable composition analysis

- Textile industry: contact angle analysis, dye wettability, surface tension, adhesion analysis

Food industry: surface tension and wettability analysis, surface tension and cleanliness analysis of canned coatings

- Power industry: surface tension analysis of transformer oil and insulating oil, fiber bundle contact angle analysis

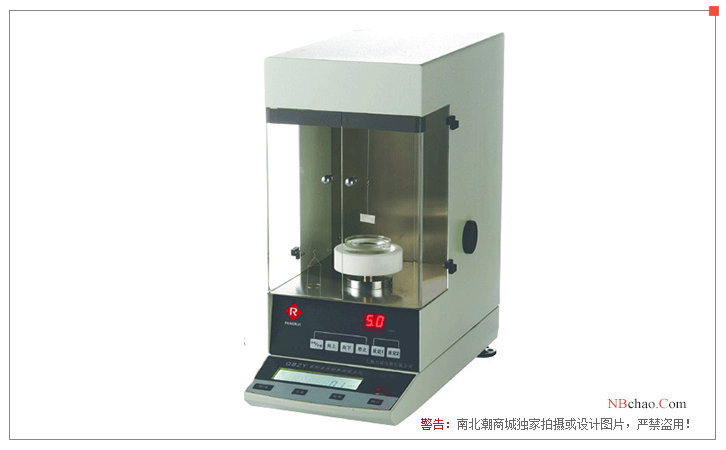

Product display diagram

Host x1, alcoholburner x1, platinum plate (or ring) x1, forceps x1, sample dish x2, standard weight x1, operation manual x1, warranty card x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
