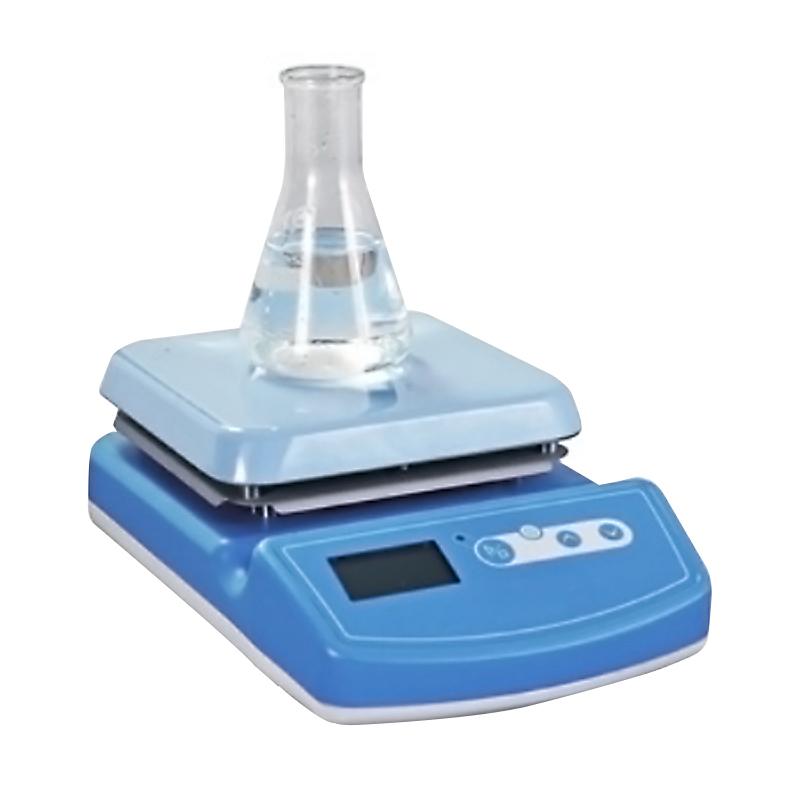

YIHENG IT-09B5 Magnetic Stirrer 450 ℃ heating 5L

Introduction

Yiheng IT-09B5 magnetic stirrer has a maximum stirring capacity of 5 liters and a stirring speed of 200~1800rpm. The IT-09B5 magnetic stirrer can measure the temperature of the working plate. When the temperature of the working plate exceeds 55°C, the indicator light will remind the user not to touch the working plate to avoid burns.

Principle

IT-09B5 magnetic stirrer is driven by a micro-motor to rotate a high-temperature-resistant strong magnet to generate a rotating magnetic field to drive the stirring bar in the container to rotate, so as to stir, mix or assist the heating of the liquid in the container, so that the solution can be fully mixed at the set temperature .

Features and advantages

1. LCD, menu-style operation interface, temperature, speed and countdown and other parameters are displayed on one screen, which is easy to understand and easy to observe and operate.

2. The IT-09B5 magnetic stirrer has microcomputer control technology to ensure that the rotation speed remains constant when the stirring viscosity is constantly changing.

3. The aluminum alloy die-casting shell has the characteristics of high temperature resistance, corrosion resistance and easy cleaning.

4. The table is made of die-casting aluminum alloy material, and the exterior is sprayed with plastic enamel material, which has good heat conduction effect and corrosion resistance. The smooth mixing table is easy to clean and no pollutants stay.

5. The output torque is large, suitable for stirring solutions with low viscosity and large capacity or high viscosity and small capacity. (Different models have different volumes)

6. An anti-corrosion guide tank is designed on the top of the control panel, even if the liquid overflows during the stirring process, it will not cause damage to the electronic components in the agitator.

model selection

● Magnetic stirrer: IT-09C has no heating function.

● Constant temperature magnetic stirrer: IT-07A, IT-09A series external temperature sensor, can directly measure and control the temperature of the liquid in the container, and the temperature control is accurate and reliable.

● Heating magnetic stirrer: IT-07B, IT-09B series heating table top temperature can reach 450℃.

safety protection

IT-09B5 magnetic stirrer has three kinds of safety protection:

● Temperature deviation protection: 09A/B series will stop heating when the measured temperature exceeds a certain value of the set temperature (10°C-30°C).

● Anti-scalding warning light: 09A/B series work plate temperature exceeds 55 ℃, the indicator light flashes to remind users not to touch the work plate.

● Special protection: universal anti-scalding cover (optional).

Pictures

host x1, power cord x1, outer thermostat x1, bracket rod x1, connecting rod x1, adjusting rod x1, locking screw x2, extension rod x1, bolt x1, stirrer x1, fuse x2, instruction manual x1, warranty x1, warranty card x1, packing list x1.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
