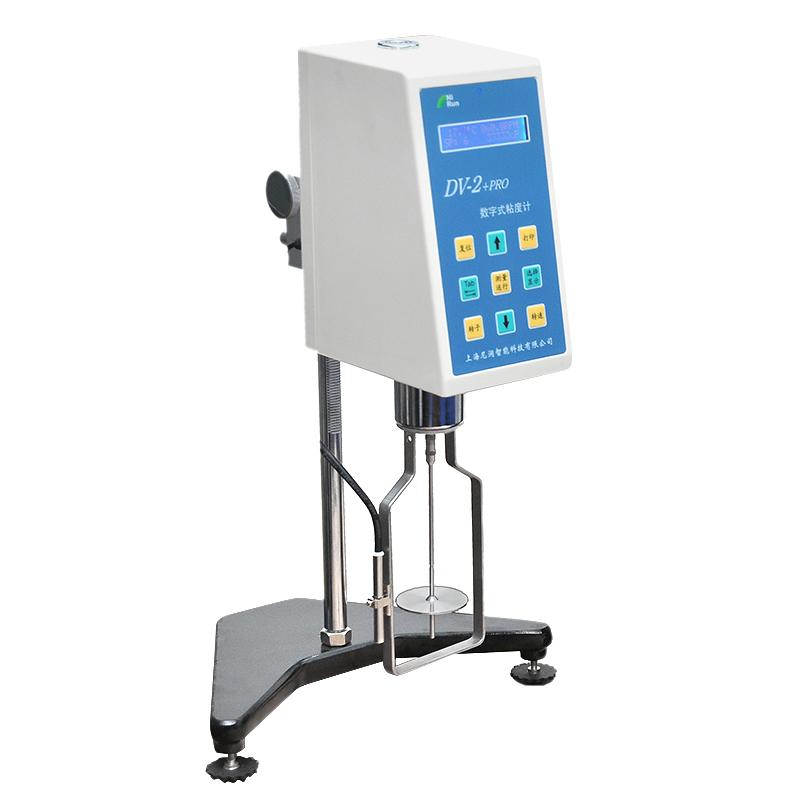

NIRUN RDV-E Digital Viscometer Viscosity Range 40~13000000MPa · s

Digital display, Measurement range 40~13000000mPa · s, Rotor specifications 2 #, 3 #, 4 #, 5 #, 6 #, 7 #(1 #optional), Rotor speed 0.3~ 100rpm, reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S.

Brand

SKU: NB008848

NiRun

Model

RDV-E

Get Quote

NiRun shop

Information

Datasheet Catalog

What else did others buy

Genuinegoods

NiRun RDV-E Digital ViscometerOverview
Specifications
Comments
FAQs

RDV-E

Digital Viscometer

Features

Optional DV data acquisition and programmable software measures rheological properties

Displays the shear rate and shear stress

The stepper motor is directly driven, gearless and the speed is accurate

The LCD LCD has a blue backlight and displays a large amount of information

The maximum viscosity value that can be measured by the rotor at the current speed is displayed.

The viscosity value shows a continuous variation

When the measurement range is out, there is an alarm sound

An RTD temperature probe is standard

Bidirectional RS232 or 485 interface is standard

Computerized full-scale linear correction

AC power adapter 100V-240V, good anti-interference

Product Applications

RDV-E digital viscometer is widely used:Inks, glues、latex、Solvent-based adhesives、Polymer solution、petroleum、Paints and coatings、solventcosmetics、Milk products、*product、juices and much more.

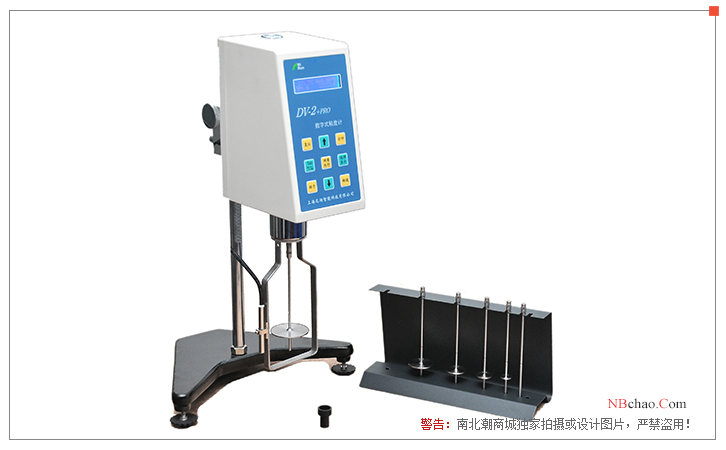

Product display diagram

Nirun RDV-E digital viscometer display diagram

Optional

DV data acquisition and program-controlled analysis software

Dedicated viscosity measurement thermostatic sink

Ultra-low viscosity adapters

Small sample adapters

Standard solutions

Micro printers

Externally recirculating glass beaker

Comparison of the main parameters of Nirun DV series viscometer

Model	DV-1+PRO	DV-2+PRO	DV-3+PRO	DV-E
Measuring range (mPa·s)	LDV：1-200ten thousand RDV: 1 million to 13 million HADV: 2 million to 26 million HBDV: 800-104000000	LDV: 1-6 million RDV: 100-40 million HADV: 200-80 million HBDV: 800-320000	LDV：1-600ten thousand RDV: 20-40 million HADV: 100-80 million HBDV: 500-3200000	LDV：1-200ten thousand RDV: 1 million to 13 million HADV: 2 million to 26 million HBDV: 800-104000000
Rotor speed (rpm)	0.3-100	0.1-200	0.1-250	0.3-100
Number of rotors	LDV (4 types of rotors 1, 2, 3, and 4) (Rotor 0 is optional.)） RDV, HADV, HBDV (6 rotors 2, 3, 4, 5, 6, 7) (0, 1 rotors are optional)
Measurement accuracy	±1.0% (full scale)
repeatability	0.5%

NiRun RDV-E Digital ViscometerSpecifications

LIST	VALUE
Display mode	digital explicit
Measurement range	40~13000000mPa·s
Rotor specification	2 #, 3 #, 4 #, 5 #, 6 #, 7 #(1 #optional)
Rotor speed	0.3~100rpm
reproducibility	±0.5%F.S
Measurement Accuracy	±1%F.S
Power supply Voltage	AC100-240V，50Hz/60Hz，DC17V1.2A
Interface	RS232
Weight	7kg
Encasement material	Five-layer cardboard
collection method	continuous acquisition
Capacity	300~600ml
Capacity	400 or 800ml (self-matching)
Lifting system	Metal lifting system
Bearing system	ruby
Torque material	beryllium bronze
Control system	microcomputer
software system	Data collection, programming, analysis
temperature sensor	PT100 temperature sensor
Encasement	aluminum alloy
Rotation speed Control mode	Continuously variable speed

NiRun RDV-E Digital Viscometer Packing list

host x1, rotor x4, manual x1, warranty card x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

What rotors can this RDV-E Viscometer be used with?

[A]

Hello, RDV-E digital Viscometer This Viscometer can be matched with 2/3/4/5/6/7 #6 rotors (standard) 0/1 #(optional).

[Q]

Does the Digital Viscometer meet the specifications of JB/T9357?

[A]

Model RDV-E Digital Viscometer Compliant

[Q]

Is the printer that comes with the RDV-E digital Viscometer standard or do I need to purchase it additionally?

[A]

Hello, the micro printer used with the instrument is not a standard product and needs to be purchased separately.
