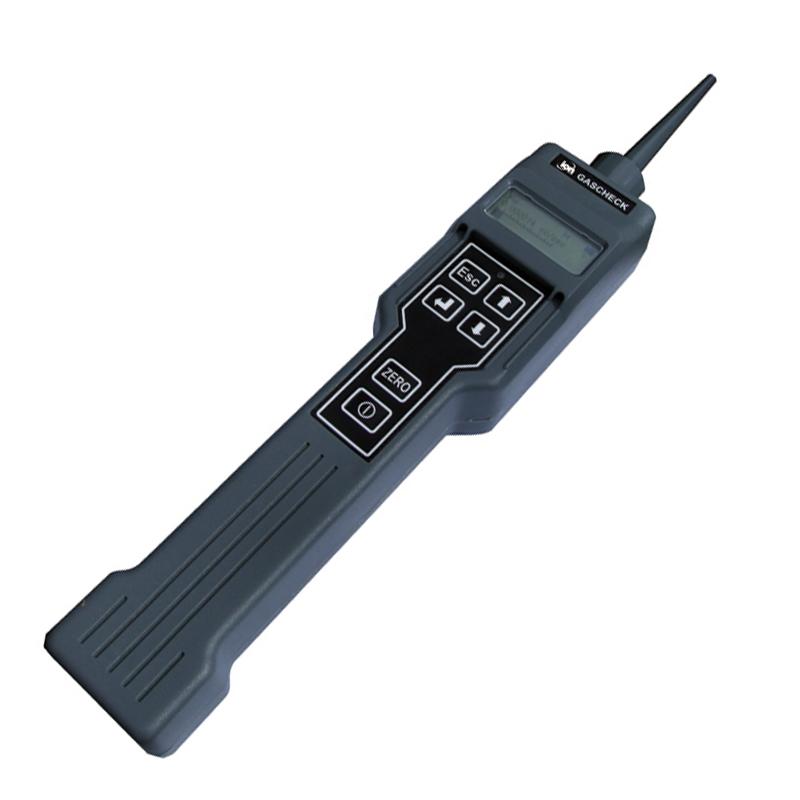

Ion Science GC-G3 Non-intrinsically safe leak Detector

United Kingdom ION SCIENCE GASCHECK GC/G3 gas leak Detector, multi-gas leak

ION SCIENCE GASCHECK GC/G3 is the G3 model of the GASCHECK G series, is a fast and accurate gas leak Detector, GASCHECK GC/G3 has multi gas leak detection function, Data storage capacity is 10.

Brand

SKU: NB009060

Ion Science

Model

GC-G3

Get Quote

Ion Science

Information

Datasheet Video

What else did others buy

Genuinegoods

Ion Science GC-G3 Non-intrinsically safe leak DetectorOverview
Specifications
Comments
FAQs

GC-G3

Non-intrinsically safe leak Detector

Introduction

The Ion Science GASCHECK GC/G3 Non-Intrinsically Safe Gas Leak Detector is a highly sensitive, professional and fast gas leak Detector that can detect the leakage of almost any known gas, using a unique trace volumetric thermal conductivity Detector that responds quickly to even the smallest leaks.

The durable GasCheck series provides stable and reliable detection of gasesreadings. The instrument's LCD display, LED indicator and audible alarm can be clearedClearly indicate the source of the leak.

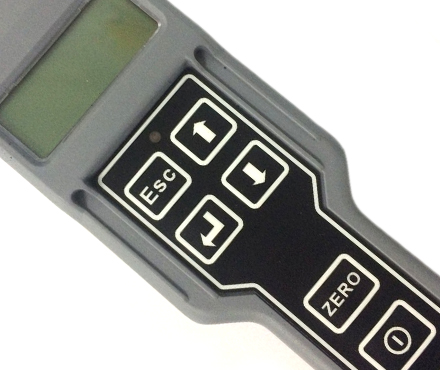

GasCheck GC/G3It can automatically zero in the surrounding environment and probe immediatelyMeasure. The newly designed easy-to-operate icon interface and intuitive button panel make it simpleOperate, select, and adjust instruments conveniently.

Features

◆ Improved micro-volumetric thermal conductivity Detector enhances sensitivity

◆ TCD thermal conductivity Detectors that are not easy to age, do not need to be replaced periodically

◆ Icon-driven menu, adhering to the mobile phone operation concept without text barriers

◆ Rapid detection of any known gas, especially helium and hydrogenGas H2, sulfur hexafluoride SF6, refrigerant R series gas, etcHighly good sensitivity

◆ Optional Unit display

◆ Peak readings are maintained

◆ LCD backlight display

◆ Portable and durable

Scope of application

● Power plant

● Warehousing industry

● MRI Imaging Department

● Refrigeration industry

● Gas Suppliers

● Conveying pipeline engineering

● Semiconductor fabrication plants

● optical fiber manufacturing plants, etc

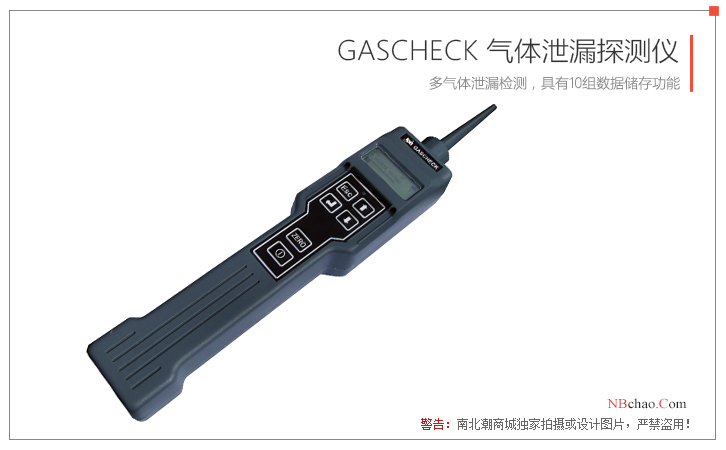

Product display diagram

Ion Science GASCHECK GC/G3 Gas Leak Detector Showcase

Ion Science GC-G3 Non-intrinsically safe leak DetectorSpecifications

LIST	VALUE
Detector	MicroVolumetric Thermal conductivity Detector, TCD (TCD) anti-corrosion over full scale
Power supply Voltage	4 × AA alkaline battery or Ni-MH battery (rechargeable)
Battery life	Typical 40 hours; version is 20 hours
Sensitivity (cc/sec)	He：1×10-5 , CH4：2.9×10-5 , R12：2.7×10-5 , Ar：3.5×10-5
Accuracy	+/- 5% of the reading, or +/- 1 digit
Response time	T90 = 1 second, Response and Zero Return
alarm	LED flashing and 90 dBA (10cm) audible alarm
calibrate	UKAS/NIST certification
data storage	10 data points with date and time stamp
Flow rate	1Cc/min or 2cc/min
Operating environment	Operating temperature: -20~ + 60 ℃, -4~ 140 ° F; Storage temperature: -20~ + 70 ℃, -4~ 158 ° F; Relative Humidity: 0-99% RH (non-condensing)
Dimension	390 * 60 * 49Mm (including probe)
Carry Case Size	420×320×97mm, 16.5×12.5×3.8”
Weight	0.45kg (1lb)
Encasement Weight	1.6kg (3.5lb)

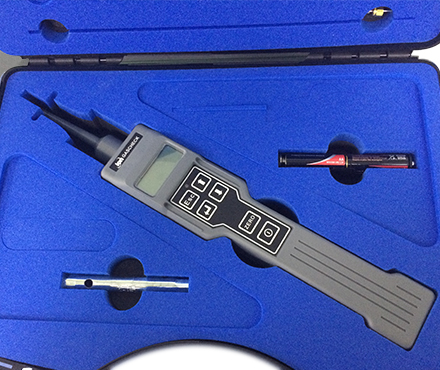

Ion Science GC-G3 Non-intrinsically safe leak Detector Packing list

Host x1, portable case x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Check whether the fuel cell H2 leaks, requires a higher accuracy of the instrument recommendations

[A]

GC 3000is can be used with GC/3000is. GC 3000is has similar technical parameters to G3, and has an explosion-proof function.

[Q]

What gases does GASCHECK GC/G3 Gas detector test for?

[A]

Hello, this Tiger Gas detector is a multi-Gas detector, which mainly tests hydrogen, nitrogen, helium, sulfur hexafluoride and R series refrigerants and other leaking gases.

[Q]

How long can the GC-G3 gas leak detector battery be fully charged?

[A]

Hello, usually 40 hours.
