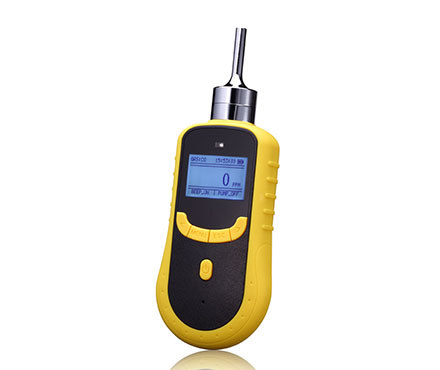

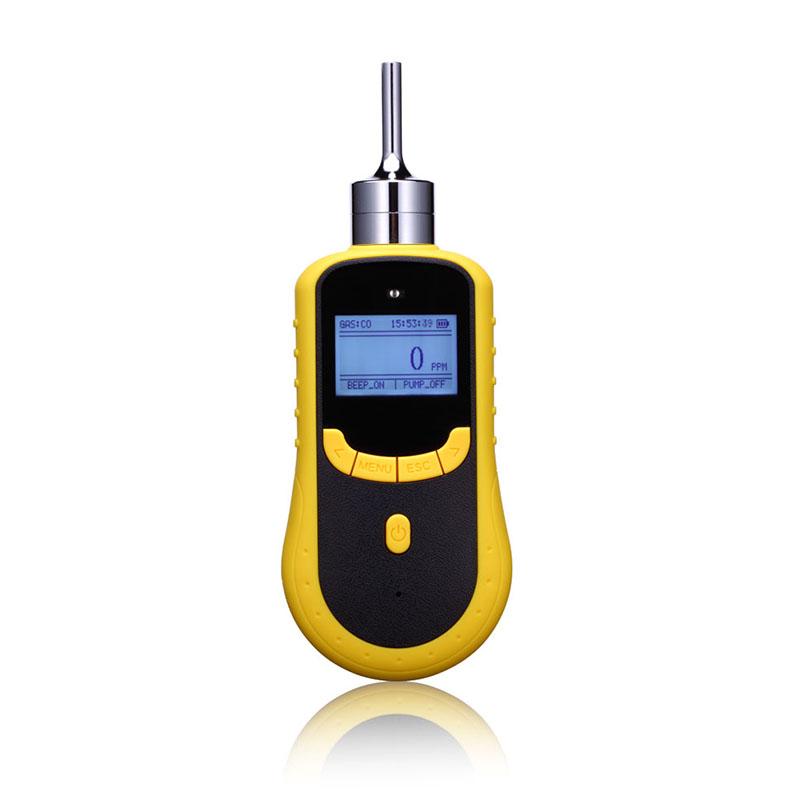

UNITEC SKY2000-H2S pump suction hydrogen sulfide Detector, range 0~100ppm
UNITEC SKY2000-H2S pump suction hydrogen sulfide Detector is used to detect hydrogen sulfide gas, using pump suction, Flow rate up to 1L/min, SKY2000-H2S with temperature and pressure compensation function.
Unitec-
GUOYUGRA GY/VGD-200-C3H6O-G (0-2% Vol) Acetone Detector (Infrared)
$ 941.00 -
KORNO GT-903-NOX-Y Portable nitrogen oxide Detector, pump suction type 0-100PPM
$ 745.00 -
HUIRUIPU HRP-T1000-NH3 Ammonia Gas Detector (No Lights, LCD Model)
$ 215.00 -
HONEYEAGLE HNAG1000-CO Fixed Carbon Monoxide Detector 20000PPM
$ 657.00 -
GUOYUGRA GY/VGD-200-PH3-G (0-5ppm) phosphating hydrogen Detector
$ 270.00
Features
◆ SKY2000-H2S adopts the original imported high-precision electrochemical sensor
◆ USB interface for high-speed data transfer, which can download and print data

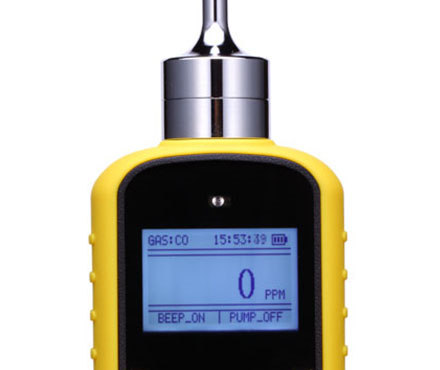

◆ Liquid crystal dot matrix display technology, which can display gas types, gas units,Gas concentration values, measured maximums, local time, ambient temperature, etc
◆ Support Chinese and English operation interface, simple and convenient switching
◆ Gas concentration unit PPM, mg/m3The display can be quickly switched
◆ Built-in miniature sampling pump, the suction power of the pump can be adjusted in ten gears
◆ Explosion-proof qualification certification, explosion-proof grade: ExiaII.CT4
Product features
1. Monitor the concentration of hydrogen sulfide in the environment or confined space and give an alarm
2. With self-calibration function and zero point calibration function, the gas monitoring is more accurate and reliable
3. One-key factory reset function, which can avoid the trouble of misoperation
4. With temperature and pressure compensation, it can well realize the compensation of gas concentration in different temperature and pressure environments
5. Two-level sound and light alarm, and the alarm point can be set by itself
6. Large-capacity lithium polymer rechargeable battery
7. Pump suction sampling mode, the suction power of the pump is adjustable
8. The shell is made of high-strength special engineering plastics, which is anti-slip, waterproof, dustproof and explosion-proof

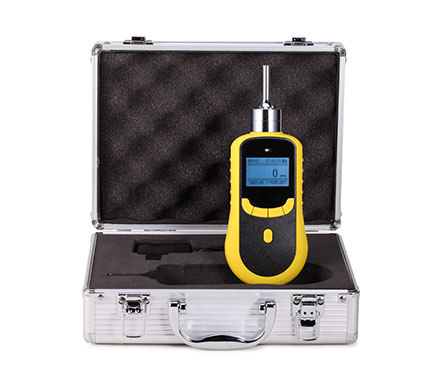

9. Exquisite and high-end aluminum alloy suitcase
Product Applications
● Furniture, flooring, wallpaper, paints, gardening, interior decoration and renovation, dyes, papermaking, food, corrosion
● Disinfection, fertilizers, resins, adhesives and pesticides, raw materials, samples, processes and breeding plants, garbage treatment plants, perm places
● Biology, home environmental protection, animal husbandry, greenhouse cultivation, warehousing and logistics, brewing and fermentation, and agricultural production in the production workshop
Display diagram



Unitec SKY2000-H2S(0-100ppm) Pump suction hydrogen sulfide DetectorSpecifications
| LIST | VALUE |
|---|---|
| Detect gas | H2S |
| Sensors principle | electrochemistry |
| Sampling method | Pump suction |
| H2S-range | 0~100ppm |
| H2S- resolution | 0.01ppm |
| H2S- detection Accuracy | ±2% F.S. |
| Interface | USB |
| Response time | ≤10s |
| Repeatability | ≤±1% |
| Linearity | ≤±1% |
| Zero drift | ≤ +/- 1% (F. S/year) |
| Display | LCD dot matrix display technology |
| Operating language | Support Chinese and English |
| Display unit | Multiple Gas Unit switch display |
| Operating temperature | -40~70℃ |
| Environmental humidity | 0~95%RH |
| Explosion-proof sign | Exia ⅡCT4 |
| Protection level | IP66 |
| Alarm mode | Sound, light, vibration |
| Operating Time | 100H (turn off the pump) |
| Dimension | 205*75*32mm |
| Weight | 300g |
Unitec SKY2000-H2S(0-100ppm) Pump suction hydrogen sulfide Detector Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
