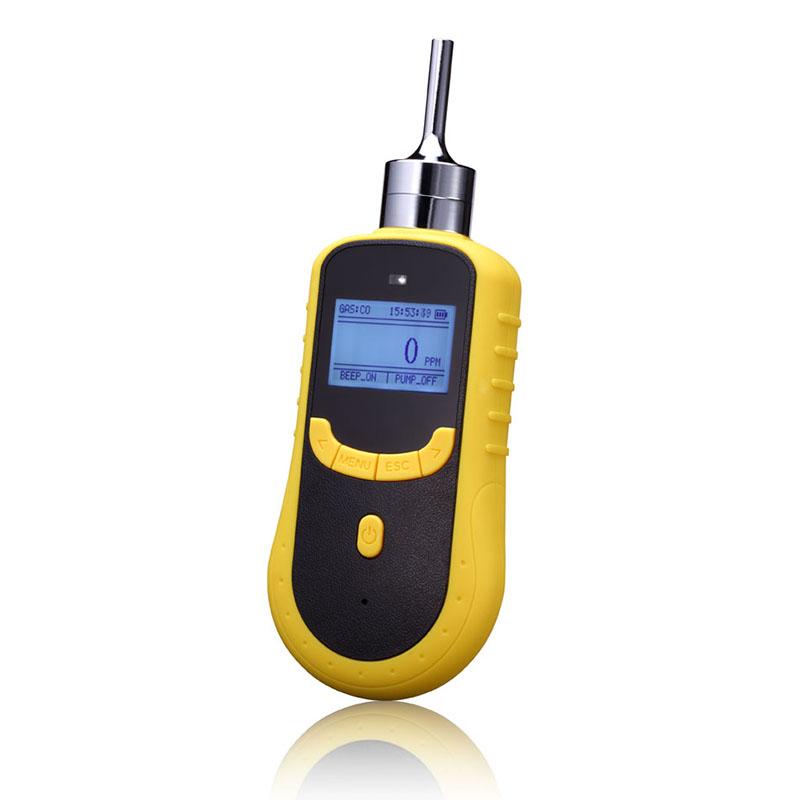

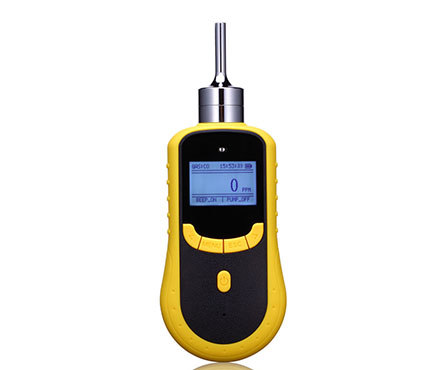

UNITEC SKY2000-CH2O (0-20ppm) Pumped Formaldehyde Detector
UNITEC SKY2000-CH2O (0-20ppm) pump-suction Formaldehyde Detector is a formaldehyde content Tester with a detection range of 0~20ppm. SKY2000-CH2O pump-suction Formaldehyde Detector has a self-calibration function and a zero-point calibration function.
Unitec-
HUIRUIPU HRP-K6000-32 touch screen 32-way gas alarm controller
$ 386.00 -
BH-60-HCN (with display + alarm) Fixed HCN Gas Detector 0~10ppm
$ 257.00 -
BOSEAN K-G60 (O2) Industrial Oxygen Gas Alarm Detector
$ 207.00 -
Baoshi'an BH-60-H2 Fixed Hydrogen Detector 0~1000ppm
$ 241.00 -
GUOYUGRA GY/VGD-200-C8H10-G Xylene Detector 0-10ppm
$ 319.00
Features
◆ SKY2000-CH2O adopts the principle of high-precision electrochemistry imported from the original sourcesensor
◆ USB interface for high-speed data transfer, downloadable and printable data (optional)
◆ Liquid crystal dot matrix display technology, which can display gas types, gas units,Gas concentration values, measured maximums, local time, etc
◆ Support Chinese and English operation interface, simple and convenient switching
◆ The gas concentration unit PPM, mg/m3 can be quickly switched to display
◆ Built-in miniature sampling pump, the suction power of the pump can be adjusted in ten gears
◆ Explosion-proof qualification certification, explosion-proof grade: ExiaII.CT4
Product features
1. Monitor the concentration of formaldehyde in the environment or confined space and give an alarm
2. With self-calibration function and zero point calibration function, the gas monitoring is more accurate and reliable
3. One-key factory reset function, which can avoid the trouble of misoperation
4. With temperature and pressure compensation, it can well realize the compensation of gas concentration in different temperature and pressure environments
5. Two-level sound and light alarm, and the alarm point can be set by itself
6. Large-capacity lithium polymer rechargeable battery
7. Pump suction sampling mode, the suction power of the pump is adjustable
8. The shell is made of high-strength special engineering plastics, which is anti-slip, waterproof, dustproof and explosion-proof
9. Exquisite and high-end aluminum alloy suitcase
Product Applications
● Furniture, flooring, wallpaper, paints, gardening, interior decoration and renovation, dyes, papermaking, food, corrosion
● Disinfection, fertilizers, resins, adhesives and pesticides, raw materials, samples, processes and breeding plants, garbage treatment plants, perm places
● Biology, home environmental protection, animal husbandry, greenhouse cultivation, warehousing and logistics, brewing and fermentation, and agricultural production in the production workshop

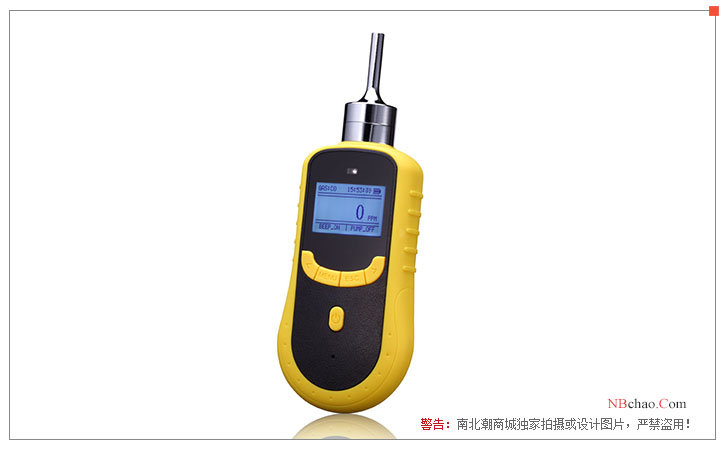

Display diagram



Unitec SKY2000-CH2O(0-20ppm) Formaldehyde DetectorSpecifications
| LIST | VALUE |
|---|---|
| Detect gas | Formaldehyde CH2O |
| Sensors principle | electrochemistry |
| Sampling method | Pump suction |
| CH2O-range | 0~20ppm |
| CH2O-resolution | 0.01ppm |
| CH2O-detection Accuracy | 2%~3% F.S. |
| Interface | USB |
| Response time | ≤10s |
| Repeatability | ≤±1% |
| Linearity | ≤±1% |
| Zero drift | ≤ +/- 1% (F. S/year) |
| Display | LCD dot matrix display technology |
| Operating language | Support Chinese and English |
| Display unit | Multiple Gas Unit switch display |
| Operating temperature | -20~50℃ |
| Environmental humidity | 0~95%RH |
| Explosion-proof sign | Exib ⅡCT4 |
| Protection level | IP66 |
| Alarm mode | Sound, light, vibration |
| Operating Time | 100H (turn off the pump) |
| Dimension | 205*75*32mm |
| Weight | 300g |

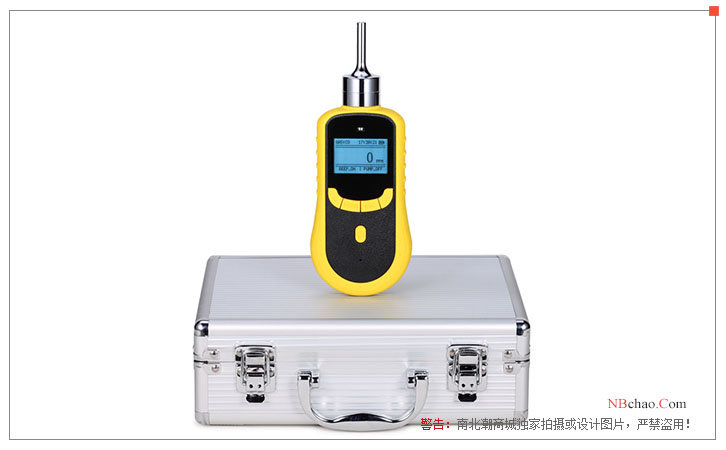

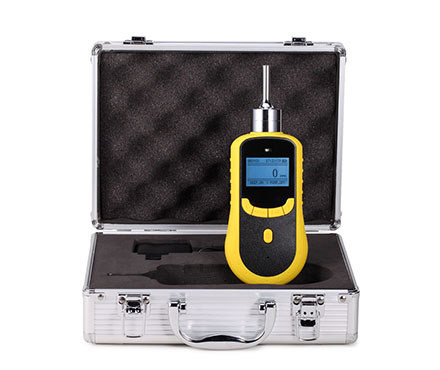

Unitec SKY2000-CH2O(0-20ppm) Formaldehyde Detector Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
