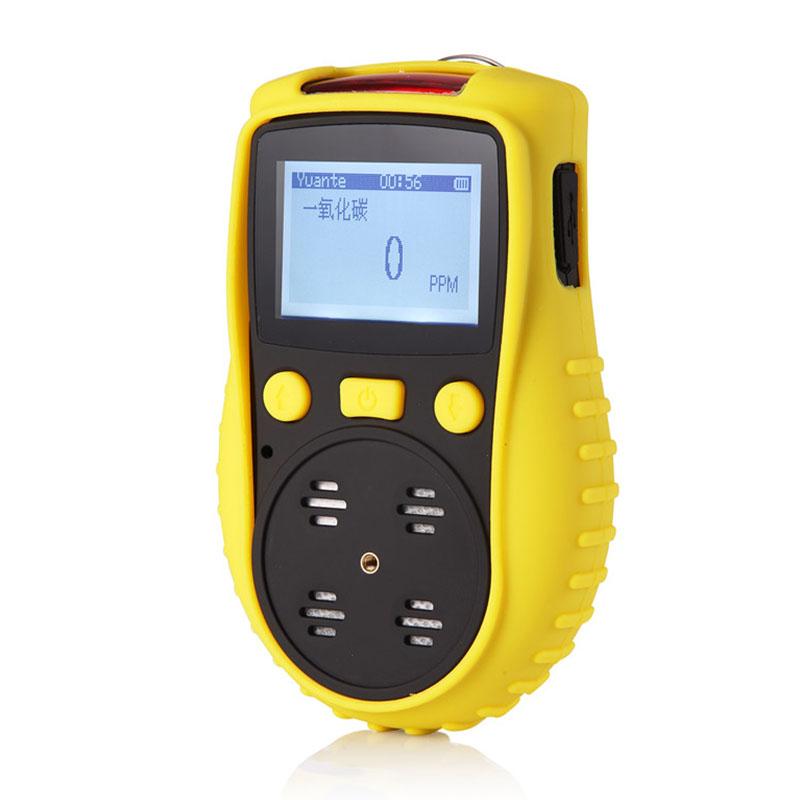

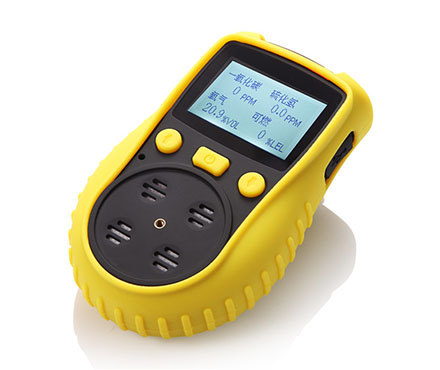

UNITEC YT-1200H-S-O2 (0-30%. VoL) Oxygen Detector

UNITEC YT-1200H-S-O2 oxygen Detector is a portable oxygen Detector with a concentration range of 0-30%. VoL, YT-1200H-S-O2 oxygen Detector with 100 alarm recording functions.

Brand

SKU: NB009169

Unitec

Model

YT-1200H-S-O2(0-30%.VoL)

Get Quote

Unitec

Information

Datasheet Catalog Manual

What else did others buy

GUOYUGRA GY/VGD-200-R507-G Refrigerant, refrigerant Detector 0-1000ppm

$ 1190.00
GUOYUGRA GY/VGD-200-Ar-G (0-10% Vol) Argon Detector

$ 817.00
HONEYEAGLE HNAG1000-H2 Fixed Hydrogen Detector 0-1000PPM

$ 425.00
GUOYUGRA GY/VGD-200-PID-G Fixed PID Gas Detector 0-50ppm

$ 1128.00
GUOYUGRA GY/VGD-200-Ex-G (0-100% LEL) Explosion-proof, combustible Gas Detector

$ 245.00

Genuinegoods

Unitec YT-1200H-S-O2(0-30%.VoL) Oxygen DetectorOverview
Specifications
Comments
FAQs

YT-1200H-S-O2(0-30%.VoL)

Oxygen Detector

Introduction

YT-1200H-S-O2(0-30%. VoL) oxygen Detector is a portable gas detection alarm instrument equipped with a single gas sensor; detectoxygengas concentration; It has a high-definition LCD dot matrix display screen, Chinese and English operation interface, sound, light, vibration three-level sound and light alarm prompts, and the instrument has its own alarm recording function, which can store 10,000 alarm records. Whether it is the sensor or circuit chip used in the instrument, each one is from the original imported good brand, from the selection, to the test, to the finished product, have gone through a strict audit process, the instrument has the advantages of fast response, high measurement accuracy, good stability and repeatability, etc., and the performance of the whole machine is at the domestic (CN) professional level. The enclosure is made of high-strength engineered materials, and its ingenious shape design and dazzling color palette are sure to redefine the way gas concentrations are detected.

Features

◆ Adopt the world's best imported high-precision sensors

◆ Any four gases can be detected at the same time

◆ LCD dot matrix display technology, support Chinese and English display interface

◆ The gas concentration unit PPM, mg/m3 can be switched between displays at the touch of a button

◆ You can check the battery Voltage and battery level percentage with one click

◆ One-click factory reset function, which can avoid the trouble of misoperation

◆ Ultra-high buzzer alarm sound, sound, light, vibration triple alarm

◆ With 10,000 alarm records, you can view the alarm history on the instrument

◆ The large-capacity lithium polymer rechargeable battery can ensure the continuous operation of the instrument for a long time

◆ The main machine is made of high-strength special engineering plastic and soft outer rubber, which is durable, comfortable to feel, and anti-static

Product structure diagram

Structure diagram of Yuante YT-1200H-S-O2 oxygen Detector

Meets standards

GB3836.1-2010 Explosive atmospheres Part 1: General requirements for equipment

GB3836.1-2010 Explosive atmospheres Part 4: Equipment protected by intrinsically safe type "i".

JJG693-2011 Verification regulations for combustible gas detection alarms

GB15322.3-2003 Part 3: Portable combustible Gas Detectors measuring in the range of (0-100)%REL

JJG365-2008 Verification Regulations for Oxygen Gas Detection and Alarm Instrument

JJG695-2003 Verification regulations for hydrogen sulfide gas detection and alarm instrument

JJG915-2008 Verification of carbon monoxide gas detection and alarm instrument

Display diagram

Yuante YT-1200H-S-O2 oxygen Detector display map

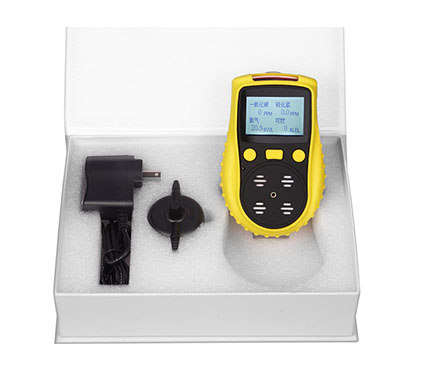

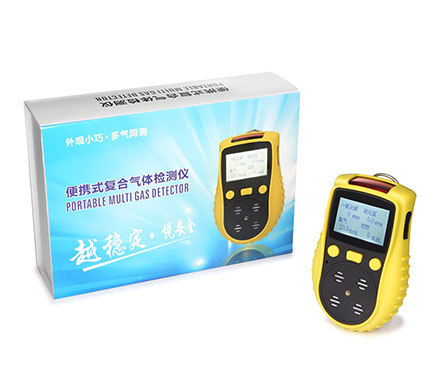

Yuante YT-1200H-S-O2 oxygen Detector accessories drawing

Unitec YT-1200H-S-O2(0-30%.VoL) Oxygen DetectorSpecifications

LIST	VALUE
Sampling method	diffusion
Detect gas	Oxygen O2
O2-range	0~30%VoL
O2- resolution	0.01%.VoL
O2- detection Accuracy	±3%F.S.
Display unit	PPM, mg/m3 can be switched with one click, and the concentration value is automatically converted by the system
Display	Monochrome dot matrix 128 * 128 LCD graphic display
Backlight	The backlight time can be manually set, and the backlight can be automatically turned on when the alarm is called.
Data storage	10,000 group storage data, storage interval 10-3600 seconds adjustable (optional function)
alarm record	Store 100 alarm records, which can be viewed directly on the instrument (optional function)
Power Supply	3.7V rechargeable lithium battery, Battery Capacity 2300mA
Operating Time	200H continuously
Explosion-proof sign	Exia ⅡCT3
Protection level	IP65
Operating temperature	-20~50℃
Environmental humidity	0~90% RH non-condensing
Shell material	ABS + leather case
Dimension	1318335mm
Machine Weight	200g (host + leather case)

Unitec YT-1200H-S-O2(0-30%.VoL) Oxygen Detector Packing list

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
