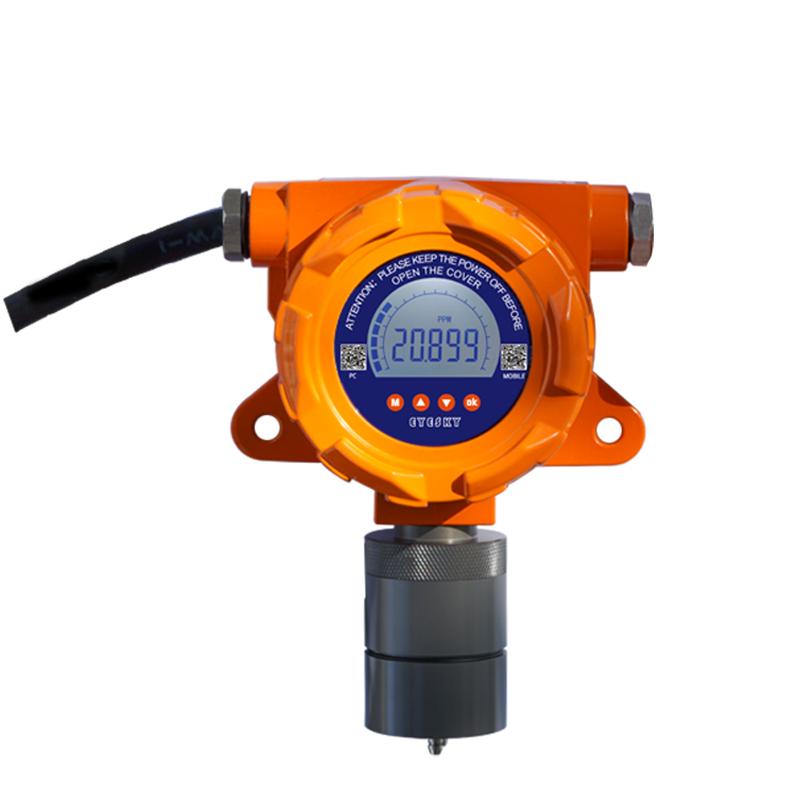

EYESKY ES10B10-VOC (0~20ppm) fixed VOC concentration Detector

Introduction

Visionless ES10B10-VOC (0~20ppm) fixed VOC concentration Detector is a new Gas Detector created by Visionless Technology on the basis of ES10A, using original imported sensors and new 32-bit low-power processors; The dashboard display interface, the value and the progress bar are displayed at the same time, which is beautiful and generous; The circuit adopts 4 layers of wiring, which is stronger against weak signals and anti-interference; Independent high-precision imported 16-bit AD chip and signal processing algorithm, higher accuracy and more stable measurement data; 4~20mA, RS485, 200~1000HZ a variety of output signals can be selected, easy to access various alarm controllers, PLC, DCS and other control systems; The explosion-proof structure design can be applied to various dangerous industrial sites; The products are widely used in metallurgy, petroleum and petrochemical, municipal, chemical and other industries.

Features

◆ Original imported high-performance sensor, good stability and repeatability, long service life;

◆ Independent 16-bit AD chip, 4-layer circuit board design, stronger ability to weak signal and anti-interference;

◆ The dashboard display interface is designed, the reading is beautiful and generous, and the humanized detail design is reflected;

◆ White, orange and red backlight design, normal and alarm status indication, clear at a glance;

◆ mg/m3, ppm, VOL, LEL can be selected;

◆ Embedded 32-bit ultra-low power processor, with independent signal processing algorithm, fast response speed and high measurement accuracy;

◆ Automatic protection function against high-concentration gas impact, with factory reset to prevent misoperation;

◆ The instrument is equipped with infrared remote control, which can be operated by remote control, without opening the cover, which is simple and convenient;

◆ Three-wire 4~20mA, RS485, 200~1000HZ signal output optional, relay output, data recovery, data storage and other functions;

◆ Two cable inlets, convenient for on-site installation;

◆ Independent air chamber structure, easy sensor replacement, no need for on-site calibration;

◆ Very good mechanical design, the air chamber is made of high-strength aluminum profile of military quality, wear-resistant and corrosion-resistant, suitable for complex and harsh industrial environments, reasonable and scientific air chamber design, to ensure the accuracy of real-time monitoring of the sensor;

◆ The explosion-proof grade is Exd II CT6, which is certified by the National Explosion-proof Electrical Inspection Center.

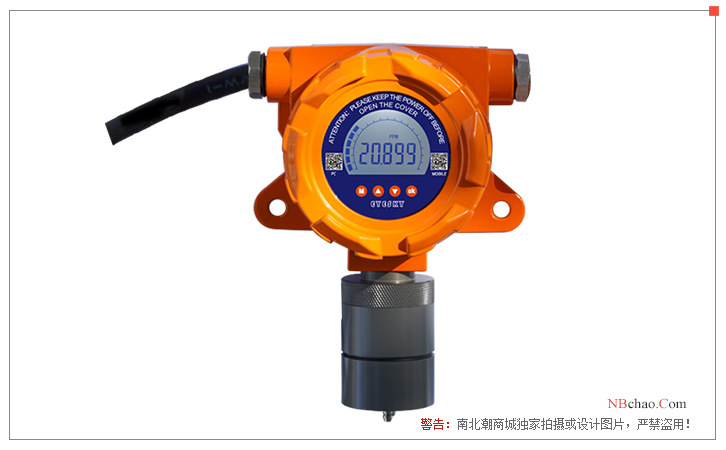

Display diagram

Host x1, manual x1, certificate x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
