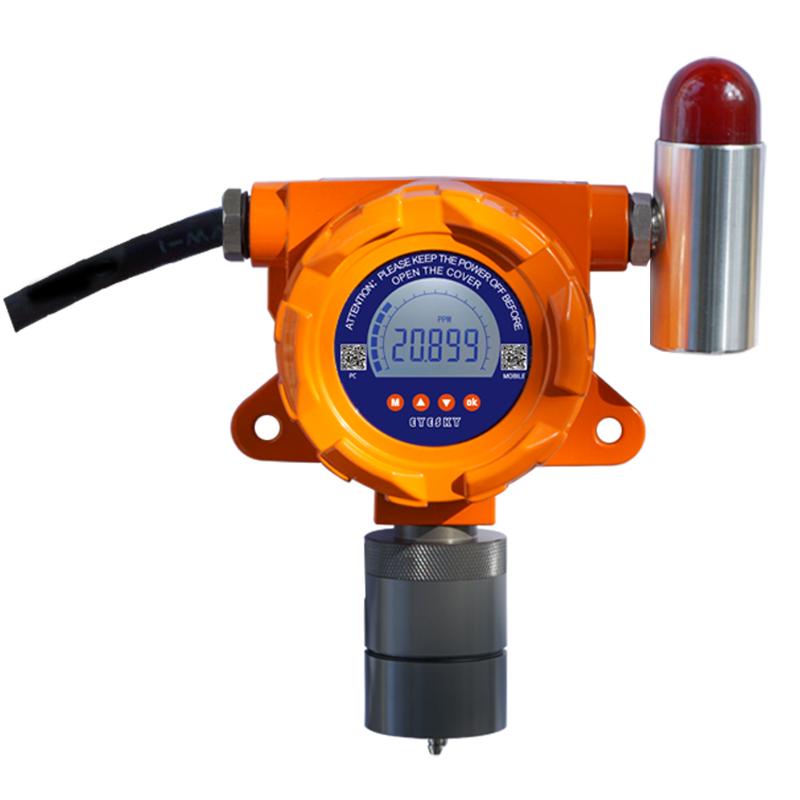

EYESKY ES10B11-VOC (0~1000ppm) fixed VOC Detector

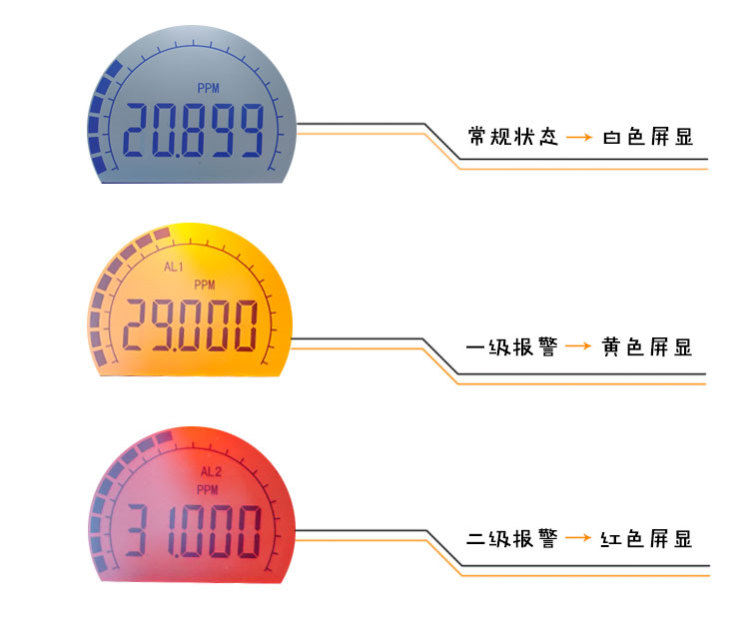

EYESKY fixed VOC Detector ES10B11-VOC (0~1000ppm) is designed with sound and light alarm and display, ES10B11-VOC fixed VOC Detector adopts diffusion detection method.
EYESKY
ES10B11-VOC(0~1000ppm)
-
KORNO MOT500-VOC-Y Fixed organic solvent volatile gas, alcohol Detector
$ 562.00 -
KORNO GT1000-VOC-Y Organic solvent volatile gas, alcohol Detector
$ 727.00 -
KORNO GT-903-TVOC-Y TVOC Detector, measuring range 0-10PPM
$ 507.00 -
KORNO GT903-TVOC-Y TVOC Detector, range 0-2ppm
$ 2463.00 -
KORNO MOT500-TVOC-Y air mass /TVOC Detector 0-10PPM
$ 525.00
Introduction

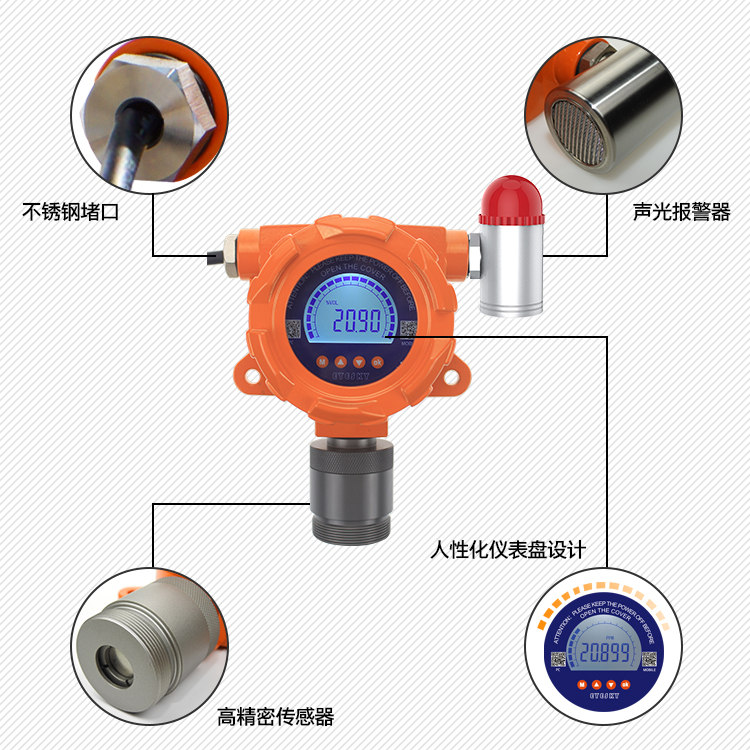

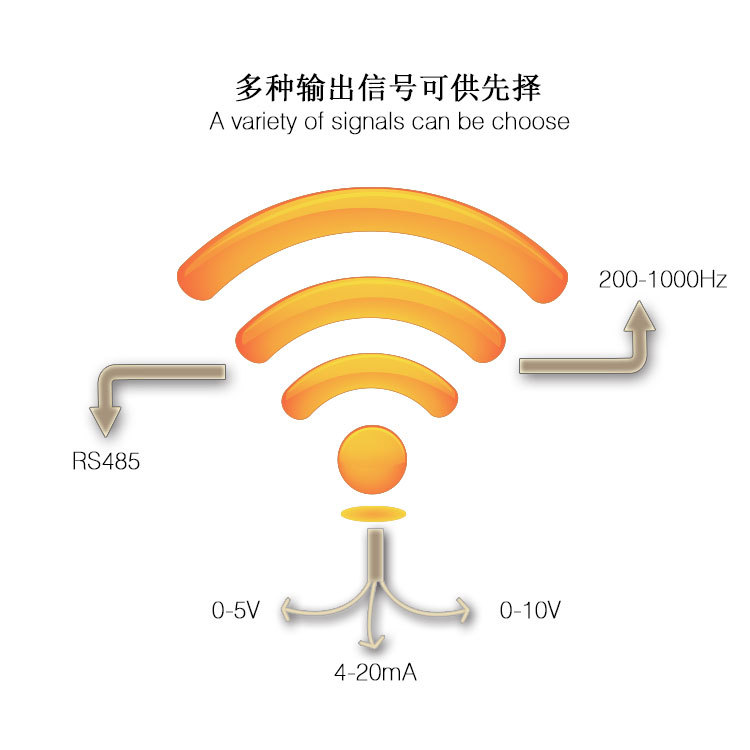

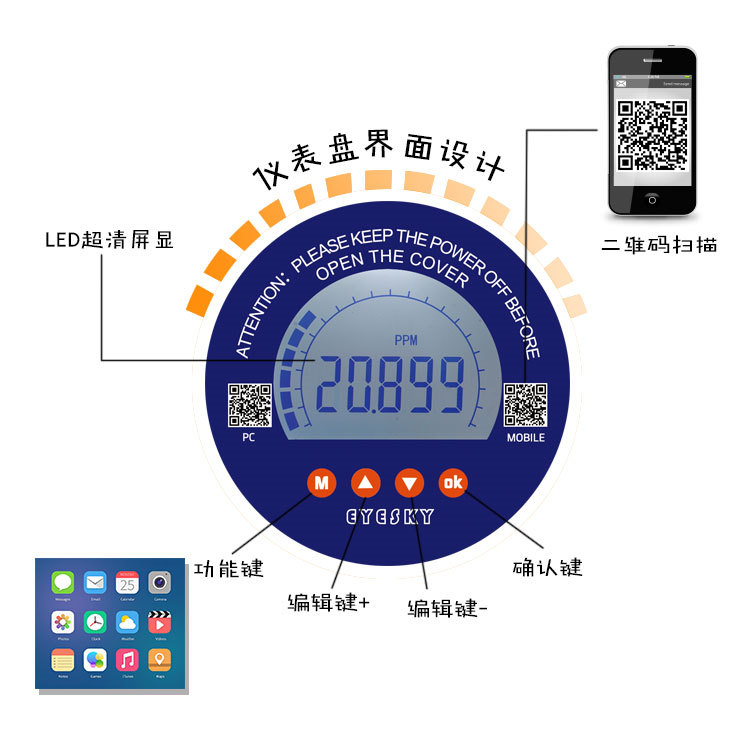

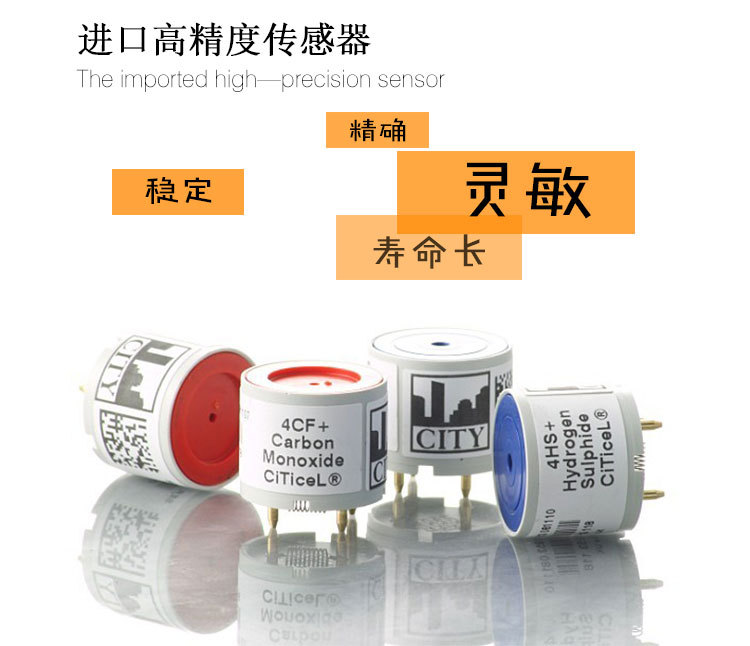

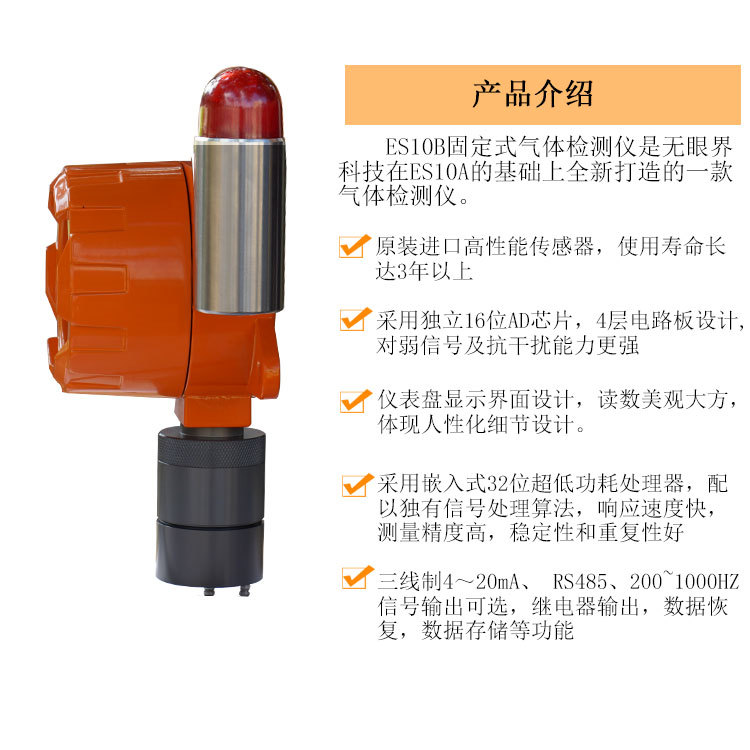

The Visionless Fixed VOC Detector ES10B11-VOC (0~1000ppm) is a new one created by Visionless Technology on the basis of ES10AGas Detector, using original imported sensors and new ones32-bit low-power processor; Dashboard display boundarysurface, the value and the progress bar are displayed at the same time, which is beautiful and generous; Circuit adoption4 layers of wiring, against weak signals and anti-dryingDisturbance is stronger; Independent high-precision imports16-bit AD chip and signal processing algorithm to measure data accuracyHigher and more stable;4~20mA, RS485, 200~1000HZ a variety of output signals can be selected, easy to accessAlarm controllers,PLC, DCS and other control systems; Explosion-proof structures are designed to be used in a variety of hazardous industriesLocation; The products are widely used in metallurgy, petroleum and petrochemical, municipal, chemical and other industries.
EYESKY ES10B11-VOC(0~1000ppm) Stationary VOC Detector Specifications
| LIST | VALUE |
|---|---|
| Detect gas | VOC、TVOC |
| Detection principle | PID photoion |

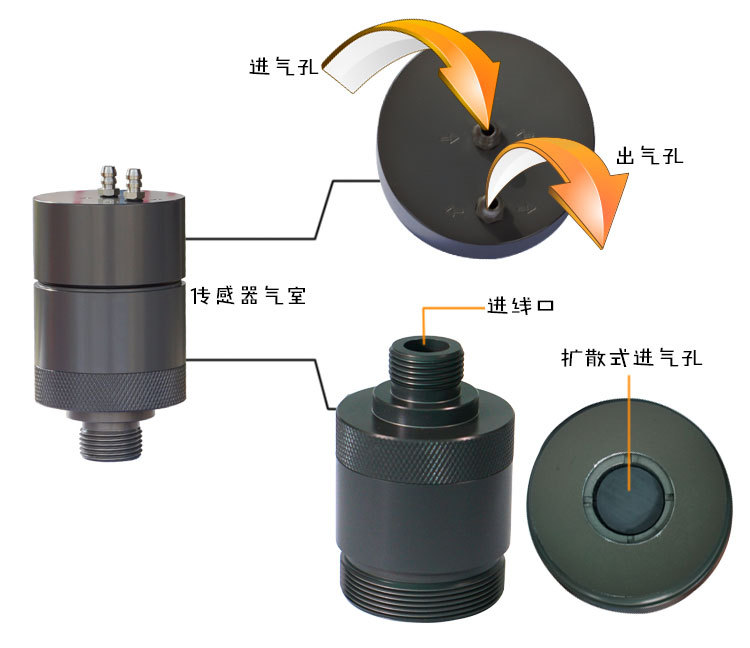

| Detection method | Fixed online long-term continuous detection, diffusion detection method; fixed online continuous detection, through the external air pump, to achieve pump suction flow detection method (air pump optional); |
| range | 0~1000ppm |
| resolution | 0.01ppm |
| Accuracy | ≤ +/- 2% (Actual concentration, higher Accuracy required according to Sensors performance) |
| Operation mode | Infrared remote control for remote and close operation, easy to set up |
| Repeatability | ≤±0.5% |
| Zero drift | ≤ +/- 1% (F. S/year) |
| Response time | ≤15s(T90) |
| recovery time | ≤ 20 seconds |
| Explosion-proof sign | Exd II CT6 |
| Protection level | IP66 |
| Output signal | Users can according to the actual site environment requirements, up to 2000 meters (single core 1mm2 Shielding cable) current signal 4-20mA output, can be connected to alarm Controller, PLC, DCS and other Control systems (standard configuration) |
| main material | Shell: ADC12 aluminum alloy, strong, wear-resistant and corrosion-resistant (optional 316 stainless steel shell) Air chamber: high-strength wear-resistant and corrosion-resistant Aluminum profile, durable (optional 316 stainless steel air chamber) |
| Installation method | Wall-mounted pipe integrated type (pipe type external thread specification: M45X1.5mm, optional pipe transfer screw joint, can be welded) |
| Operating temperature | -30~60℃ |
| Relative Humidity | ≤ 95% RH, no condensation (Humidity > 90% RH, condensation can be equipped with Filter) |
| Relative Humidity | 10%~95%RH |
| Power Supply | 24VDC (Normal Operating Voltage range 12~ 30VDC) |
| power consumption | 1.5W |
| Working pressure | ≤200Kpa |
| Dimension | 180*140*92mm |
| Weight | About 1.6Kg |
| execution standard | GB15322.1-2003，GB3836.1-2010，GB3836.2-2010，GB3836.4-2010 |
EYESKY ES10B11-VOC(0~1000ppm) Stationary VOC Detector Packing list
Host x1, manual x1, certificate x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
