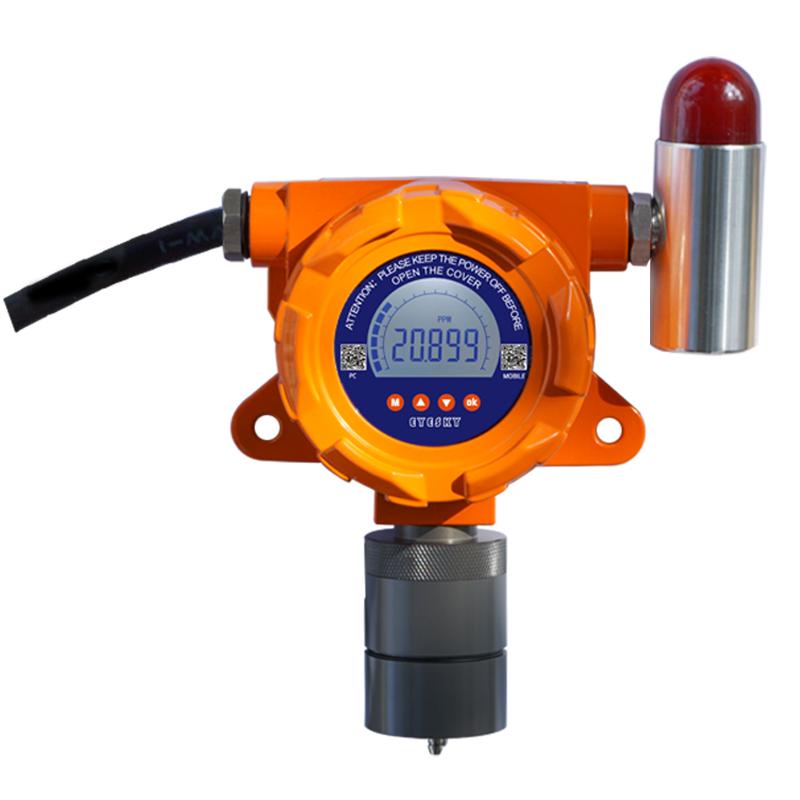

EYESKY ES10B11-VOC(0~2000ppm) Stationary VOC Detector

EYESKY ES10B11-VOC (0~2000ppm) Fixed VOC Gas Detector

EYESKY ES10B11-VOC (0~2000ppm) Fixed VOC Gas Detector has a detection concentration range of 0~2000ppm and a resolution of 0.01ppm. ES10B11-VOC has an acousto-optic alarm and an instrument display.

Brand

SKU: NB009212

EYESKY

Model

ES10B11-VOC(0~2000ppm)

Get Quote

EYESKY

Information

Datasheet Catalog Manual

What else did others buy

KORNO GT-903-TVOC-Y TVOC Detector, measuring range 0-10PPM

$ 507.00
KORNO GT1000-VOC-Y Organic solvent volatile gas, alcohol Detector

$ 727.00
KORNO MOT500-TVOC-Y Online TVOC Detector 0-500ppm

$ 1751.00
KORNO GT903-TVOC-Y TVOC Detector, range 0-2ppm

$ 2463.00
KORNO MOT500-VOC-Y Fixed organic solvent volatile gas, alcohol Detector

$ 562.00

Genuinegoods

EYESKY ES10B11-VOC(0~2000ppm) Stationary VOC Detector Overview
Specifications
Comments
FAQs

ES10B11-VOC(0~2000ppm)

Stationary VOC Detector

Introduction

Visionless ES10B11-VOC(0~2000ppm) fixed VOC Gas Detector is a new one created by Visionless Technology on the basis of ES10AGas Detector, using original imported sensors and new ones32-bit low-power processor; Dashboard display boundarysurface, the value and the progress bar are displayed at the same time, which is beautiful and generous; Circuit adoption4 layers of wiring, against weak signals and anti-dryingDisturbance is stronger; Independent high-precision imports16-bit AD chip and signal processing algorithm to measure data accuracyHigher and more stable;4~20mA, RS485, 200~1000HZ a variety of output signals can be selected, easy to accessAlarm controllers,PLC, DCS and other control systems; Explosion-proof structures are designed to be used in a variety of hazardous industriesLocation; The products are widely used in metallurgy, petroleum and petrochemical, municipal, chemical and other industries.

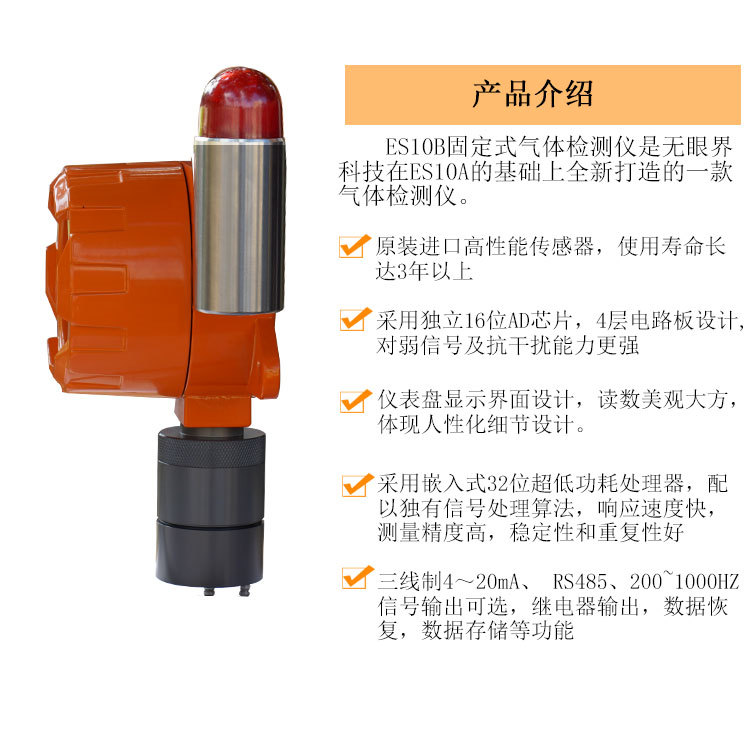

Introduction of Visionless ES10B11-VOC (0~2000ppm) Fixed VOC Gas Detector

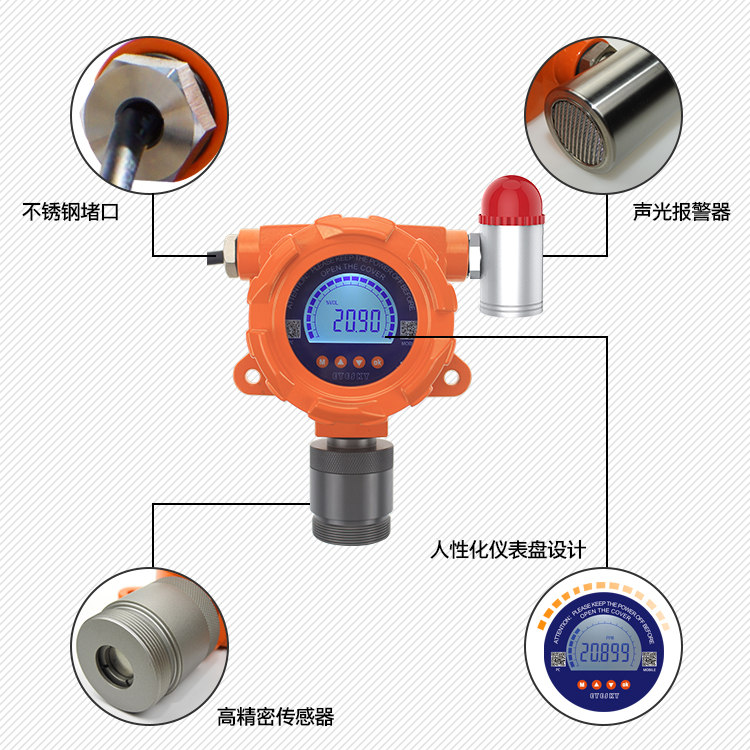

Structural diagram of visionless ES10B11-VOC (0~2000ppm) fixed VOC Gas Detector

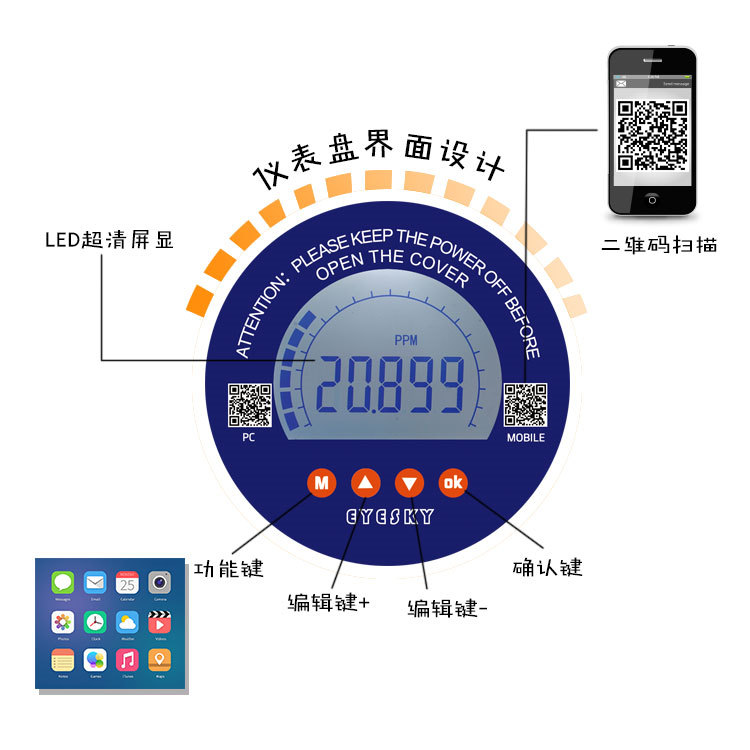

Visionless ES10B11-VOC (0~2000ppm) fixed VOC gas detection instrument panel structure diagram

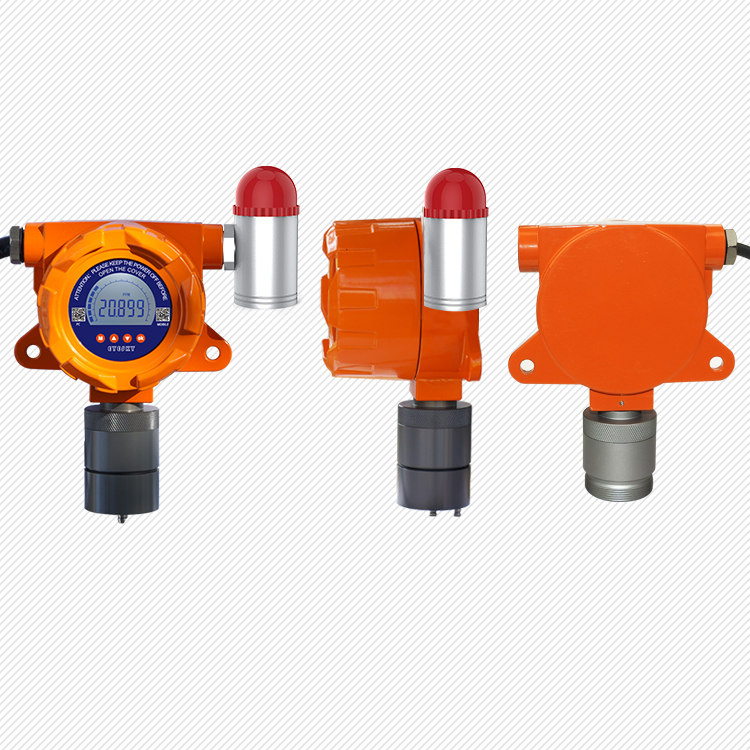

Detail diagram of Visionless ES10B11-VOC (0~2000ppm) fixed VOC Gas Detector

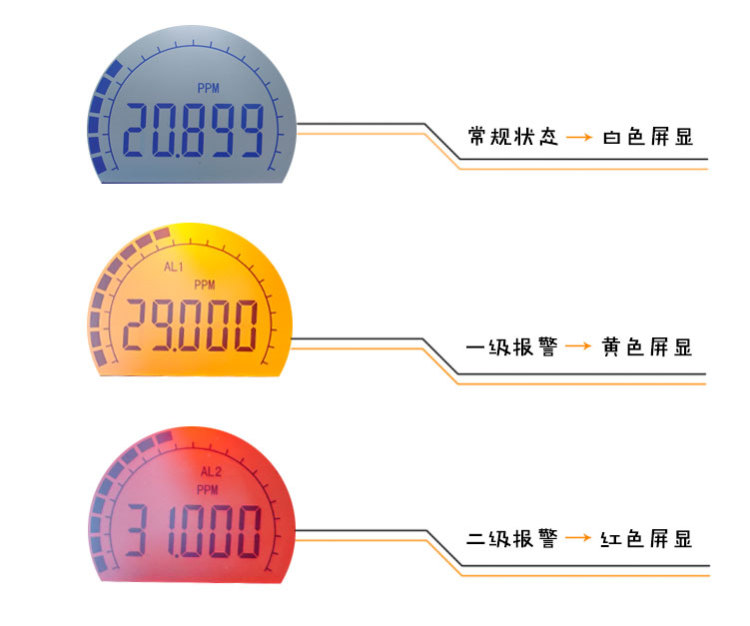

Visionless ES10B11-VOC (0~2000ppm) Fixed VOC Gas Detector Siren Instructions

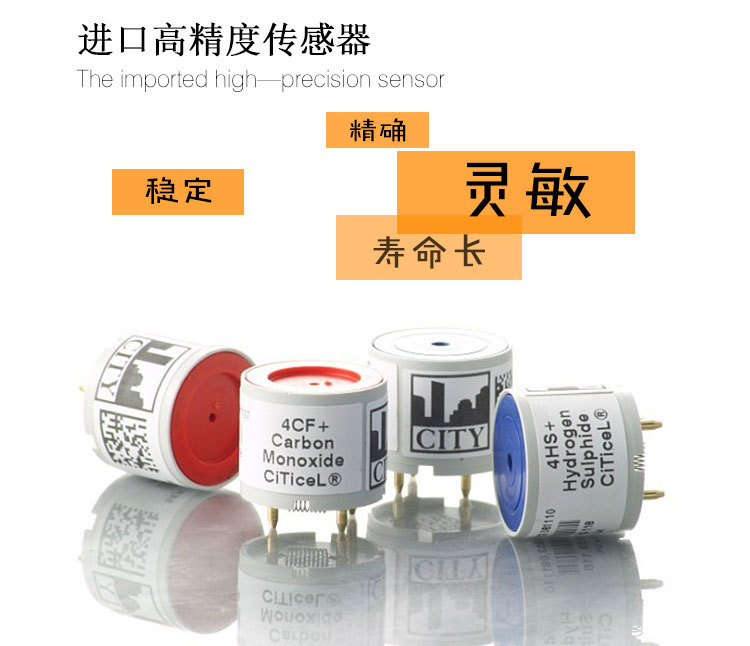

Visionless ES10B11-VOC (0~2000ppm) fixed VOC Gas Detector sensor features

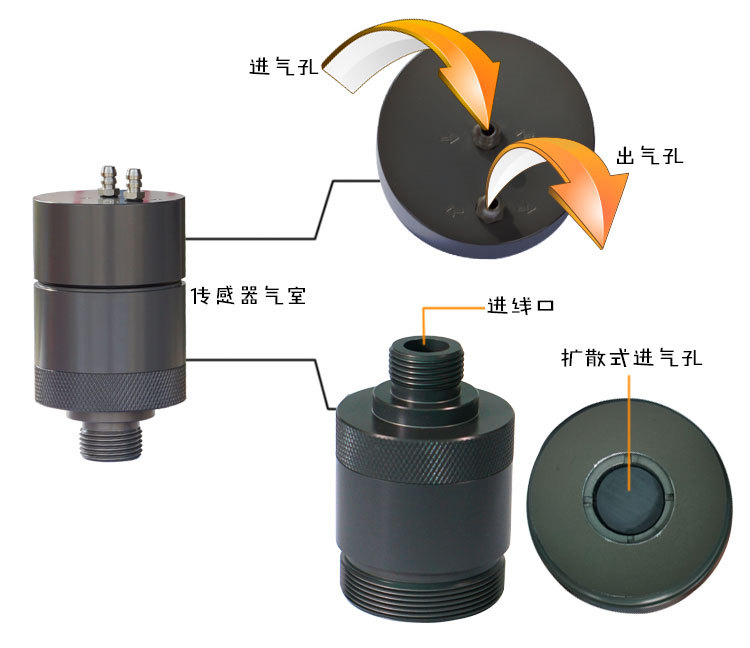

Detail diagram of the air inlet hole of the ES10B11-VOC (0~2000ppm) fixed VOC Gas Detector without vision

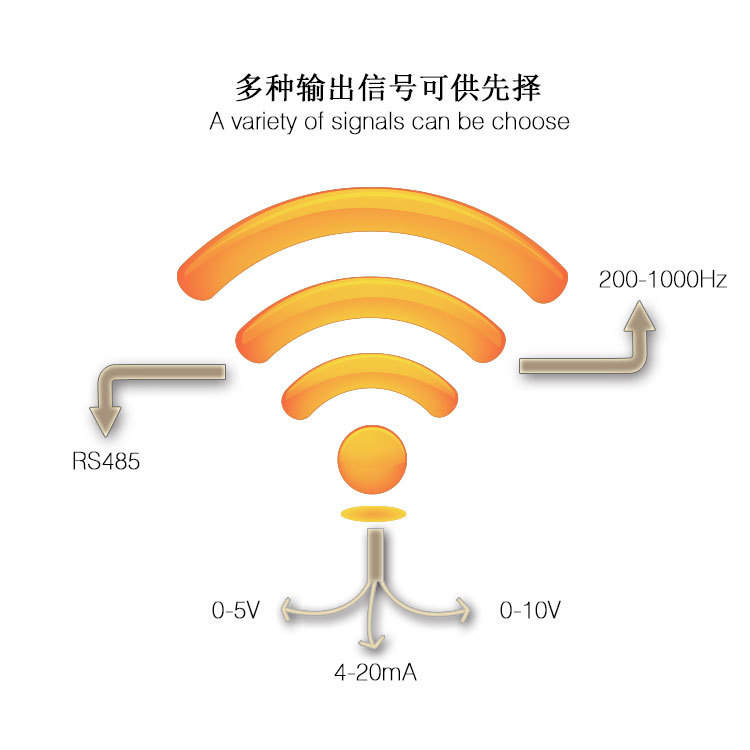

Visionless ES10B11-VOC (0~2000ppm) fixed VOC Gas Detector signal output selection

Visionless ES10B11-VOC (0~2000ppm) fixed VOC Gas Detector application environment

EYESKY ES10B11-VOC(0~2000ppm) Stationary VOC Detector Specifications

LIST	VALUE
Detect gas	VOC、TVOC
Detection principle	PID photoion
Detection method	Fixed online long-term continuous detection, diffusion detection method; fixed online continuous detection, through the external air pump, to achieve pump suction flow detection method (air pump optional);
range	0~2000ppm
resolution	0.01ppm
Accuracy	≤ +/- 2% (Actual concentration, higher Accuracy required according to Sensors performance)
Operation mode	Infrared remote control for remote and close operation, easy to set up
Repeatability	≤±0.5%
Zero drift	≤ +/- 1% (F. S/year)
Response time	≤15s(T90)
recovery time	≤ 20 seconds
Explosion-proof sign	Exd II CT6
Protection level	IP66
main material	Shell: ADC12 aluminum alloy, strong, wear-resistant and corrosion-resistant (optional 316 stainless steel shell); Air chamber: high-strength wear-resistant and corrosion-resistant Aluminum profile, durable (optional 316 stainless steel air chamber)
Installation method	Wall-mounted pipe integrated type (pipe type external thread specification: M45X1.5mm, optional pipe transfer screw joint, can be welded)
Operating temperature	-30~60℃
Relative Humidity	≤ 95% RH, no condensation (Humidity > 90% RH, condensation can be equipped with Filter)
Relative Humidity	10%~95%RH
Power Supply	24VDC (Normal Operating Voltage range 12~ 30VDC)
power consumption	1.5W
Working pressure	≤200Kpa
Dimension	18014092mm
Weight	About 1.6Kg
execution standard	GB15322.1-2003，GB3836.1-2010，GB3836.2-2010，GB3836.4-2010

EYESKY ES10B11-VOC(0~2000ppm) Stationary VOC Detector Packing list

Host x1, manual x1, certificate x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

I want to do a test on the GB/T23984 standard, is this VOC detector okay?

[A]

Sure

[Q]

What is the testing principle of the fixed VOC detector? What is the range of this model?

[A]

Hello, the fixed VOC detector without vision adopts the principle of PID, and the test range of this model is 0~ 2000ppm.

[Q]

Can ES10B11-VOC Fixed VOC Gas detection be used in flammable and explosive environments?

[A]

Hello, yes, the fixed VOC Gas detectors without vision have been designed with explosion-proof structure and can be applied to various dangerous workplaces.
