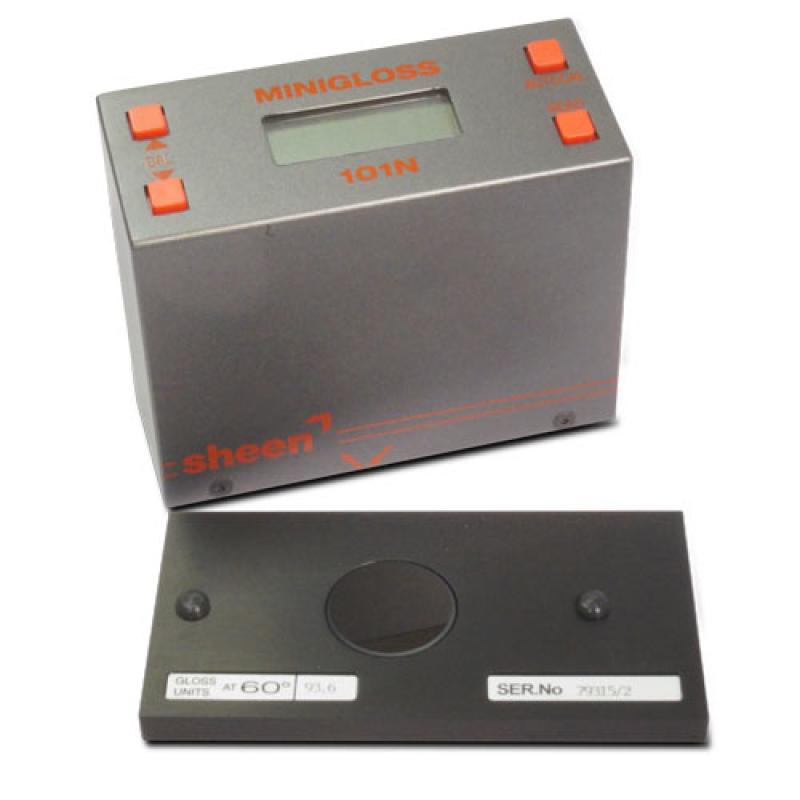

SHEEN Ref.101N Small Gloss Tester with a projection angle of 60 degrees

The SHEEN Ref. 101N small Gloss Tester is a 60 ° single-angle Glossmeter, with a measurement range of 0.1~ 100GU. The Ref. 101N small Gloss Tester uses an LCD screen with a backlit display.

Brand

SKU: NB009253

SHEEN

Model

Ref.101N

Get Quote

SHEEN shop

Information

Datasheet

What else did others buy

CHINA LS193 Small aperture Glossmeter 60 degree Gloss Meter Measurable surface or small object

$ 381.00
Junengda WGG60-E4 Glossiness Meter

$ 243.00
CHNSPEC CS-300S Microporous Glossmeter 60 °

$ 541.00
DONGRU DR268 color screen three angle Glossmeter 0-2000Gs

$ 538.00
AMITTARI AG-126B 20 ° & 60 ° dual angle portable Glossmeter

$ 314.00

Genuinegoods

SHEEN Ref.101N Small Gloss MeterOverview
Specifications
Comments
FAQs

Ref.101N

Small Gloss Meter

Introduction

The SHEEN Ref.101N small gloss Tester uses a 60-degree angle measurement with a simple structure and is suitable for various occasions.In addition to the possibility of automatic calibration，It can also be calibrated according to other operating standards and reference samples. The gloss meter can be used as a monitoring device for production lines,It is also possible forQCLaboratory tests.The instrument is sturdy and comes with a protective metal case.The gloss meter has a backlit display and can be used in dim situations.

Features

•Simple to use, one-click operation

• Automatic digital button calibration

• Range: 0~100GU, repeatability: ±0.5GUAccuracy: ±1GU

• Large backlit LCD display, even inLow-light areas can also be measured

• Auto power off and low batterywarn

• Powered by mains/rechargeable batteries

standard

Meets ISO7668

Parameters

Model	Ref.101N
Measure the angle	60 degrees
Measuring range	0.1~100GU
precision	±1.0GU
resolution	0.1GU
repeatability	Better than ±0.5GU
power supply	100~240V（50~60Hz）
size	( L x W x H ) 110 x 45 x 85mm
weight	800g (including rechargeable battery)
Temperature range	0~40℃（32~104℉）

SHEEN Ref.101N Small Gloss MeterSpecifications

LIST	VALUE
Measurement angle	60°
Measurement range	0~100GU
Repeatability	±0.5GU
Error of indication	±1.0GU
Graduation	0.1GU
Standards	ISO 7668
Operating language	English
Dimensions	1104585mm
Weight	800g
Power Supply	100 – 240V ( 50 – 60Hz )
Operating temperature	0~40℃

SHEEN Ref.101N Small Gloss Meter Packing list

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
