RDS 45.7μm L1580φ 15.875mm custom wire rod Eletroplating

Introduction

RDS 45.7μm L1580 Φ15.875mm customized wire rod is mainly used for quantitative control of fluid in the production process. For uneven pre-coating, this production-type metering rod can solve this defect. The production-type metering rod is uniquely formed with a fixed groove to wipe off excess fluid, thereby achieving the effect of a smooth coating.

RDS 45.7μm L1580 Φ15.875mm customized wire rod has a coating film thickness of 45.7 μm, a total rod length of 1580mm, and a diameter of 15.875mm. It is made of high-grade stainless steel.

Advantages

1. The RDS company has been focusing on the research and development of coating metering rods for 80 years, and has a high degree of market familiarity. It is used in most domestic (CN) industries and has a good market reputation;

2. By default, stainless steel 303 is preferred for measuring rods used in production. The wear resistance is much higher than that of low-priced rods, and it is cheaper in cost accounting;

3. The coating metering rod produced by RDS in the United States is very good in product process control, and the precision of the wet film marked by it is high (like the 800w pixel of the 1300w pixel VSIphone of a domestic (CN) brand-name mobile phone)

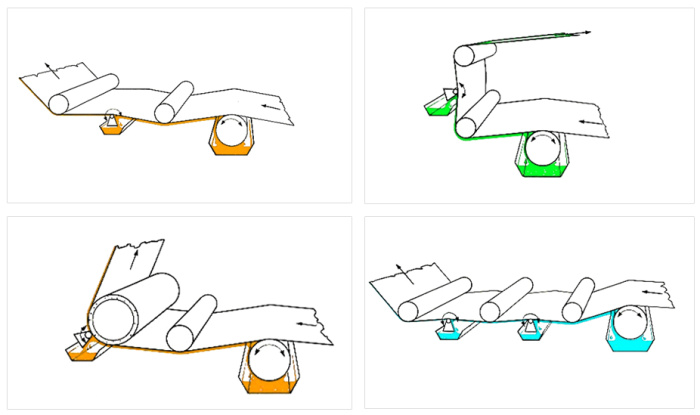

Applicable industry

Principle of use

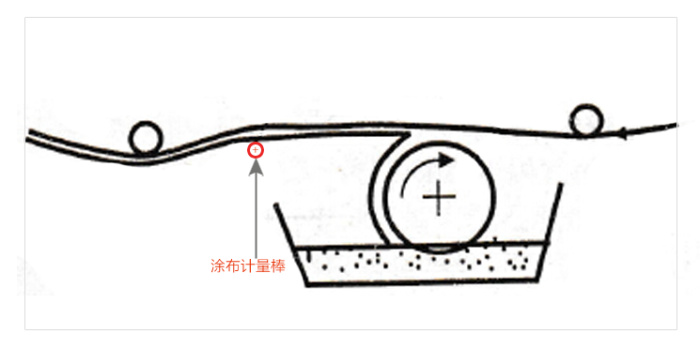

The quantitative control of the fluid during the production process makes the pre-coating smoother. The schematic reference is as follows:

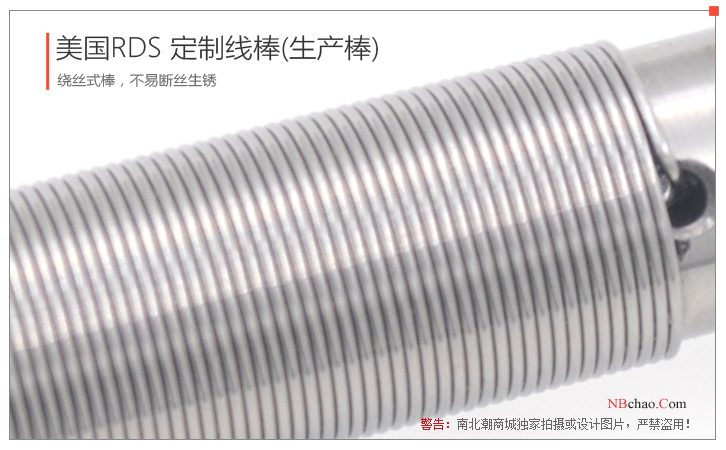

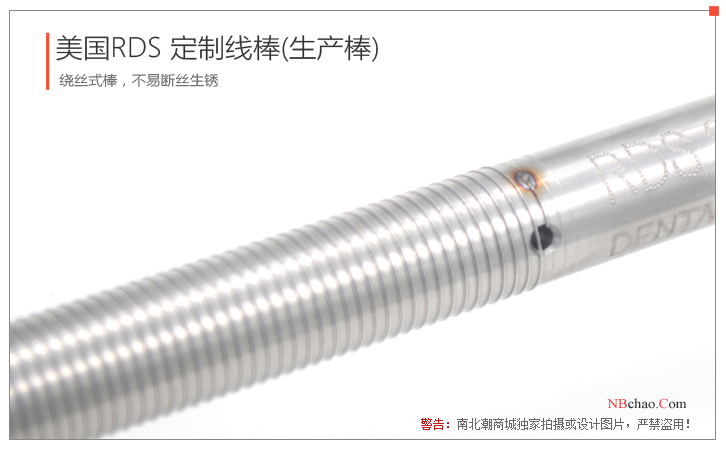

real shot

Remarks: If you need to customize, please click [ wire rod custom quoter ]

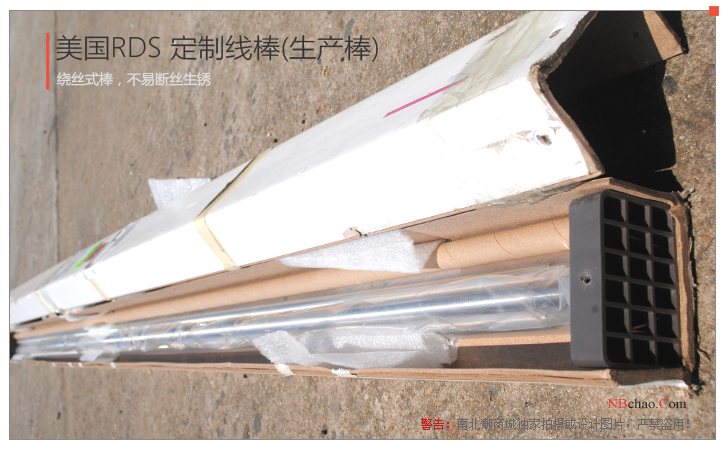

Stainless Steel Rod X1 Transparent Encasement Hose X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
