Introduction to PH-240A Drying Oven/Incubator
Yiheng PH-240A dual-purpose Drying Oven/Incubator adopts mirror stainless steel liner, introduces and digests foreign technology, has the characteristics of high quality, reliability, and safety, and is a new type of forced convection drying/incubating dual-purpose box. RT+5~80℃, as a Drying Oven, the temperature control range is 80~220℃.
Applications
The PH-240A Drying Oven/Incubator is directly helpful to colleges and universities, scientific research and production, and provides a reliable guarantee.
Features
1. Microcomputer liquid crystal display controller, accurate and reliable temperature control.
2. The mirror stainless steel liner is adopted, the four corners are semi-circular and easy to clean, and the distance between the shelves in the box is adjustable.
3. Forced warm air circulation design ensures uniform temperature in the studio.
4. PH-240A Drying Oven/Incubator adopts silicone rubber sealing strip and double-layer glass door observation window, which is convenient and clear for observation.
5. When the door is opened, the microcirculation and heating will stop automatically, without the disadvantage of temperature overshoot.
Optional
1. Multi-segment programmable temperature controller
2. Independent temperature limit controller
3. RS485 interface and communication software
4. Embedded printer
5. Diameter Ф25mm test hole
6. U disk data storage
7. Wireless alarm system (SMS alarm system)

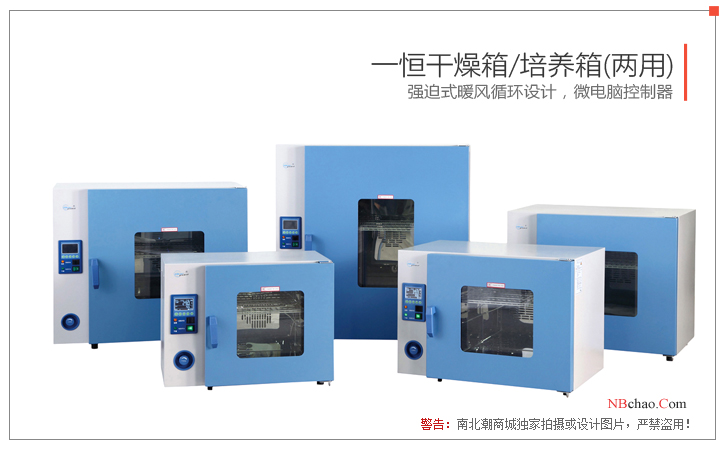

Pictures

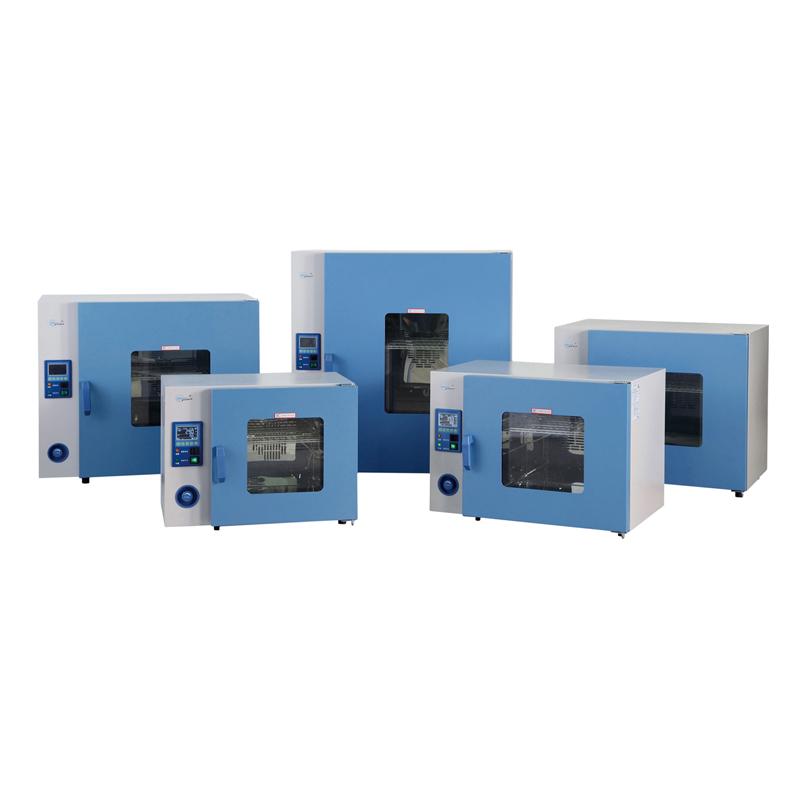

YiHeng PH-240(A) Drying oven (dual-use)Specifications
| LIST | VALUE |
|---|---|
| Power | AC 220V 50Hz |
| Temperature range | Foster: RT + 5~ 80 ℃; drying: 80~220 ℃ |
| Temperature Resolution | 0.1℃ |
| Temperature fluctuation | For incubator: +/- 0.5 ℃/for drying oven: +/- 1 ℃ |
| Temperature Uniformity | ±3% |
| Environment temperature | +5~35℃ |
| Input power | 2450W |
| Interior size | 600*550*600mm |
| Dimensions | 800*750*800mm |
| Shelf (std.) | 2pcs |
| Timer | 1~5999min |
| Net Weight | 75kg |
| Gross Weight | 119Kg |
| Packing size | 980*820*1120mm |
YiHeng PH-240(A) Drying oven (dual-use) Packing list
host x1, instruction manual x1, packing list x1, warranty x1, warranty card x1, fuse x2, shelf x2, power cord x1.
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
