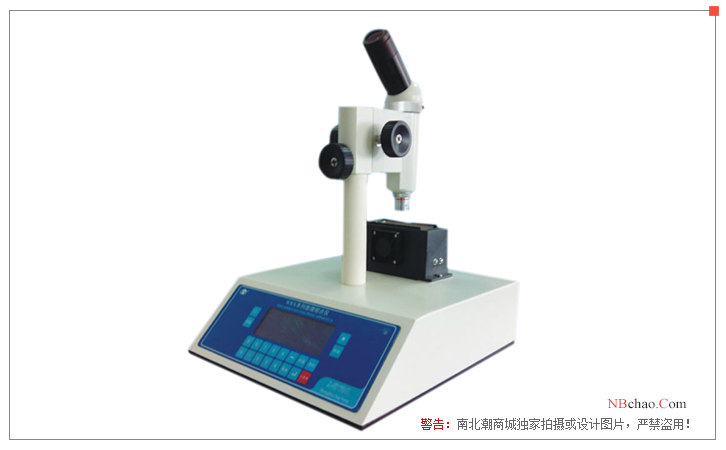

SUOGUANG X-4A Melting point meter Measuring temperature 320 ℃ Monocular Microscope

Introduction

Suoguang X-4A Micro Melting Point Apparatus is a new high-tech product designed with micro-control technology. It has stable and reliable performance and is easy to operate. X-4A Micro Melting Point Apparatus is suitable for studying and measuring the characteristics of the measured substance under a microscope, which is called TOA analysis ( THERMO - OPTICAL ANALYSIS ). It can be used not only for the determination of the melting point of trace samples, but also for the determination of the melting point of sliced samples, as well as for bioengineering thermodynamics research.　

Features

1) X-4 series micro melting point instrument is a multi-functional and dual-purpose instrument, which can measure the melting point of substances by capillary method and cover glass method. The guide groove design on the edge of the hot stage can effectively guide the cover The slides are loaded into the hot stage to prevent slipping, and it is extremely convenient to use;

2) Use a high-power microscopic magnifying glass to clearly observe every detail of the measured sample when it melts. In addition to measuring the melting point of conventional transparent crystals, it can also be used to measure dark-colored samples, low-purity samples, amorphous samples, thermal decomposition 1. Samples with serious carbonization, samples that need to be sliced (polyester), filamentous samples, and samples that are too small to fill glass capillaries can be measured on this instrument, which makes up for the shortcomings of automatic melting point instruments and has a wider range of applications;

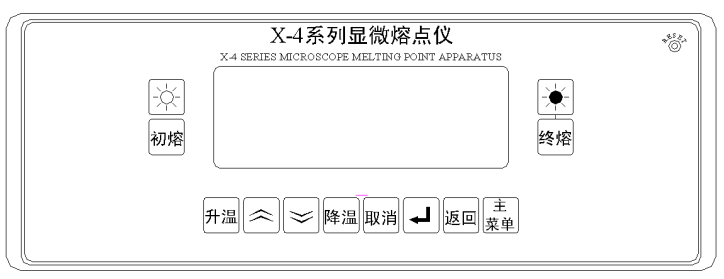

3) Utilizing the principle of microcomputer control, introducing professional technologies such as membrane keys and liquid crystal (192x64) display, the operation of the whole machine is comfortable and easy, and the result display is more intuitive and convenient;

4) The software and hardware collaborative design is used to realize the precise control of the furnace temperature, which greatly improves the measurement accuracy, repeatability and reliability; except for the different observation methods of the melting point, its measurement performance is comparable to that of an automatic microcomputer melting point instrument;

5) With five linear heating rate settings, current furnace temperature display, instrument status display, and automatic recording and display of initial and final melting temperatures, the operation is simple and convenient;

6) The control of the heating rate is quite precise, and the furnace temperature can be controlled completely according to the heating rate set by the user without being affected by the initial temperature, which greatly improves the repeatability and accuracy of the measurement.

Product Structure

Application

It is widely used in medicine, chemical industry, synthetic fiber, biology, mineralogy, criminology and other fields. For example:

◇ Determination of polymers: melting point determination of plastic films, plastic slices (hot-melt linings) and synthetic fibers, identification of microfibers, etc.;

◇  Determination of phase transition of unit components: melting, crystallization, polycrystallization, liquid crystallization;

◇  Determine the phase transition of multiple components: eutectic mixture, polymer crystallization molding, compound process molding, liquid phase system decomposition reaction, etc.;

◇  Isothermal test: activation energy of crystallization, expansion process, emulsification process, crystal growth process, etc.;

◇  Seed crystal formation process: decomposition seed formation, crystal growth process;

◇  Pyrolysis of wood: determination of semi-synthetic fibers and synthetic fibers, decomposition characteristics of wood and non-wood fibers;

◇  Bioengineering thermodynamics research: cell tissue, bacteria, mold, blood, etc.;

◇  Research on temperature-related biological specimens: the lowest, highest, and best formation temperatures of heat-resistant or moisture-resistant tissues, etc.

Pictures

host x1, manual x1, warranty card x1, certificate x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
