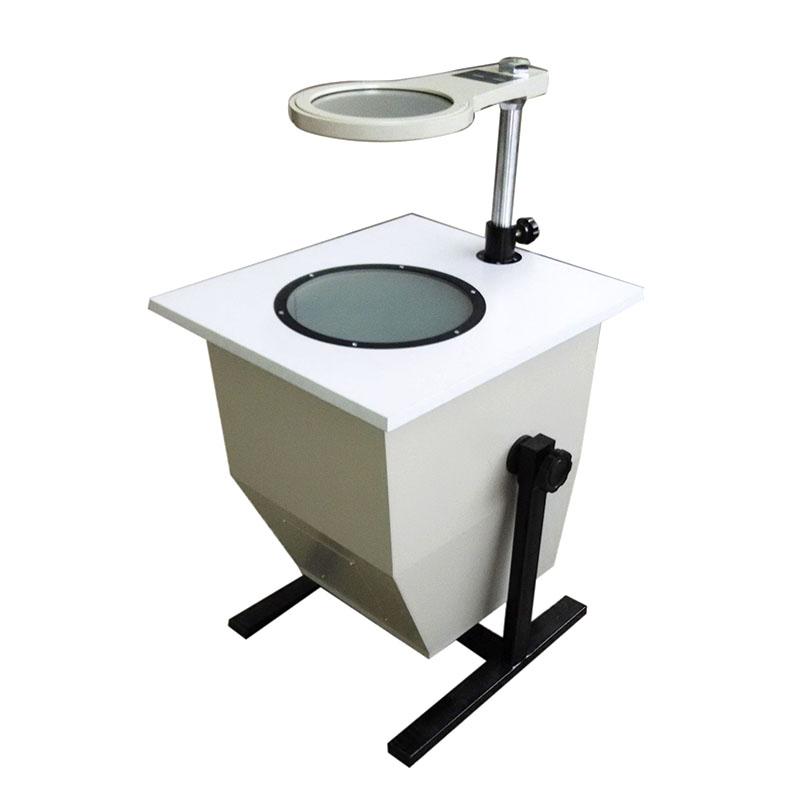

SUOGUANG WYL-2A stress gauge with lambda/8-lambda standard

The SUOGUANG WYL-2A stress meter is based on the WYL-2 model with the addition of λ/8-λ standard sheet. The Measurement range of the WYL-2A stress meter is below 560nm (first-order interference color), and the light diameter of the analyzer is 150mm.

Brand

SKU: NB009356

Suoguang

Model

WYL-2A

Price

$ 969.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

Suoguang shopSE

Information

Datasheet RFQ Contract Catalog Manual

What else did others buy

Genuinegoods

Suoguang WYL-2A stress gaugeOverview
Specifications
Comments
FAQs

WYL-2A

stress gauge

Introduction

Suoguang WYL-2A strain gauge can quickly and continuously analyze the internal stress quality of optical glass, glass products or other transparent materials by observing the birefringence of the sample.

Features

Principle of polarized light interference. Since it is equipped with a full-wave plate, the WYL-2A strain gauge can not only qualitatively or semi-quantitatively measure the internal stress value of glass according to the interference color sequence in the polarization field.

Product Structure

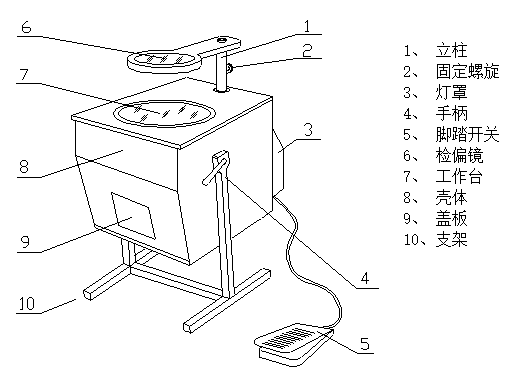

Structural diagram of Suoguang WYL-2A strain gauge

Pictures

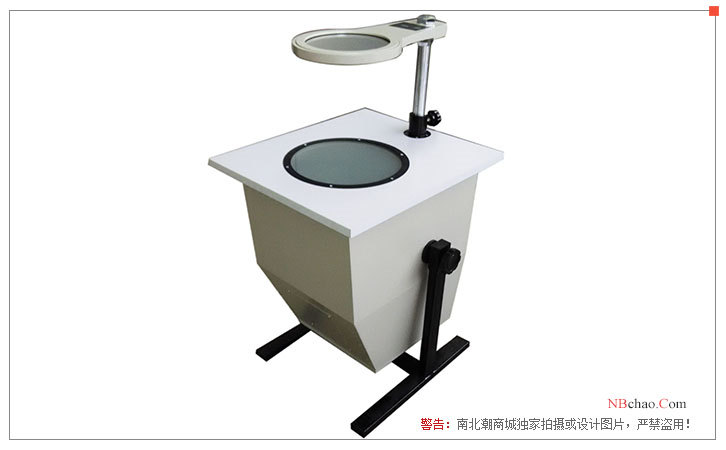

Suoguang WYL-2A strain gauge display

Suoguang WYL-2A stress gaugeSpecifications

LIST	VALUE
Stress Measurement Range	≤560nm
Full wave plate optical path difference	560nm
Polarizer aperture	Φ150mm
Glass surface diameter	Φ220mm
standard film	lambda/8-lambda (divided into 8 × 2)
Net Weight	21kg
Dimensions	62cm×50cm×75cm
Light source	12V／100W
Power Supply	220V

Suoguang WYL-2A stress gauge Packing list

host x1, manual x1, warranty card x1, certificate x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
