TQC DV1310 Rotational Viscometer viscosity range 1.6~ 3200000mPas
The Dutch TQC DV1310 Rotational Viscometer is a Rotational Viscometer with a test viscosity range of 1.6 to 3200000mPas. The DV1310 Rotational Viscometer is equipped with 6 rotors and 21 Rotation speeds.
TQC sheen
DV1310
-
HUINUO SNB-1 Digital Display Rotational Viscometer Viscosity Testing Instrument 600,000 CP Printer
$ 966.00 -
HUINUO HBDV-1 digital display Rotational Viscometer 4 million CP with a small number of sample adapters
$ 1812.00 -
HUINUO NDJ-5S Digital Rotational Viscometer Digital Viscosity Testing Instrument 100,000 CP
$ 347.00 -
Shangtian Jingyi NDJ-1 NDJ Pointer Viscometer Dial Viscosity meter 1X10 mPa · s
$ 425.00 -
Pingxuan HATV-2H Brinell Viscometer High Temperature Viscometer 16 million mpas
$ 2169.00
Introduction
TQC DV1310 Rotational Viscometer is a high-precision low-viscosity Rotational Viscometer imported from the Netherlands, equipped with 6 rotors and 21 speeds, it is the V2 type belonging to the TQC VR3000 series Rotational Viscometer, without memory, its measurement accuracy is ±1%, and the repeatability is ±0.2%.TQC DV1310 Rotational ViscometerIt is an easy-to-use, high-precision Rotational Viscometer designed according to industry standards(Brinell method).
The TQC Rotational Viscometer offers a free combination of VR3000V1 and V2, and can provide a variety of suitable modes to meet the needs of both casual and advanced users. Both versions of the viscometer are suitable for three ranges from low viscosity to high viscosity. Measurement data can be printed by connecting to an optional thermal printer to meet their quality control requirements.
V1 and V2 are Rotational Viscometers for rapid viscosity determination under standards such as ISO 2555 and ASTM. In the quality control laboratory, the instrument provides a viscosity test that is 100% compatible with the Brinell method and can be compared with data in accordance with accredited standards.
Outline and structure drawing

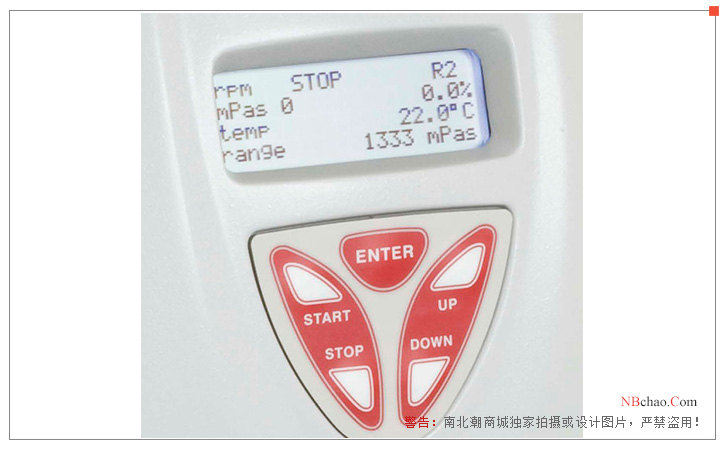

The front structure of the main engine
1) Level indicator
2) LCD display
3) "START" to start the measurement
4) "STOP" to stop the measurement
5) "ENTER" to confirm the parameter selection
6) "UP" up parameter selection
7) "DOWN" parameter selection
The back of the console
8) Main switch
9) Power outlets
10) PT-100 interface
11) RS-232 interface
Application
TQC DV1310 Rotational ViscometerIt is suitable for chemical industry, food industry, industry, cosmetics industry, printing industry, etc.
Meets standards
符合标准ASTM D115、ASTM D1417、ASTM D1824、ASTM D2196、ASTM D2556、ASTM D2669、ASTM D2983、ASTM D2994、ASTM D3236、ASTM D3716、ASTM D4016、ASTM D789、ASTM E2336、BS 5350-B8、ISO 1652、ISO 2555、ASTM D1084.

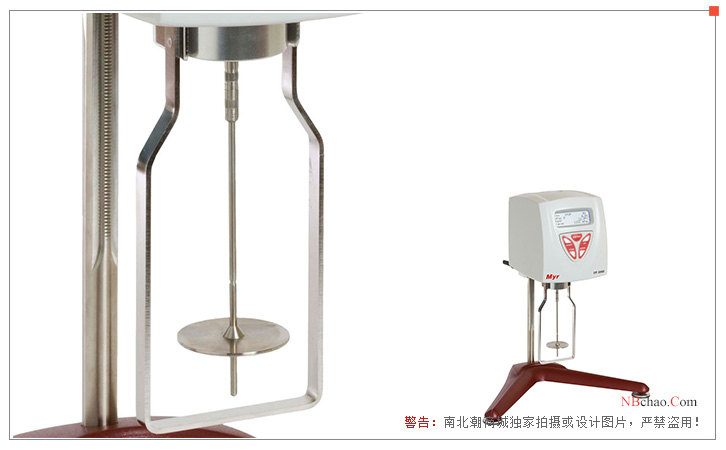

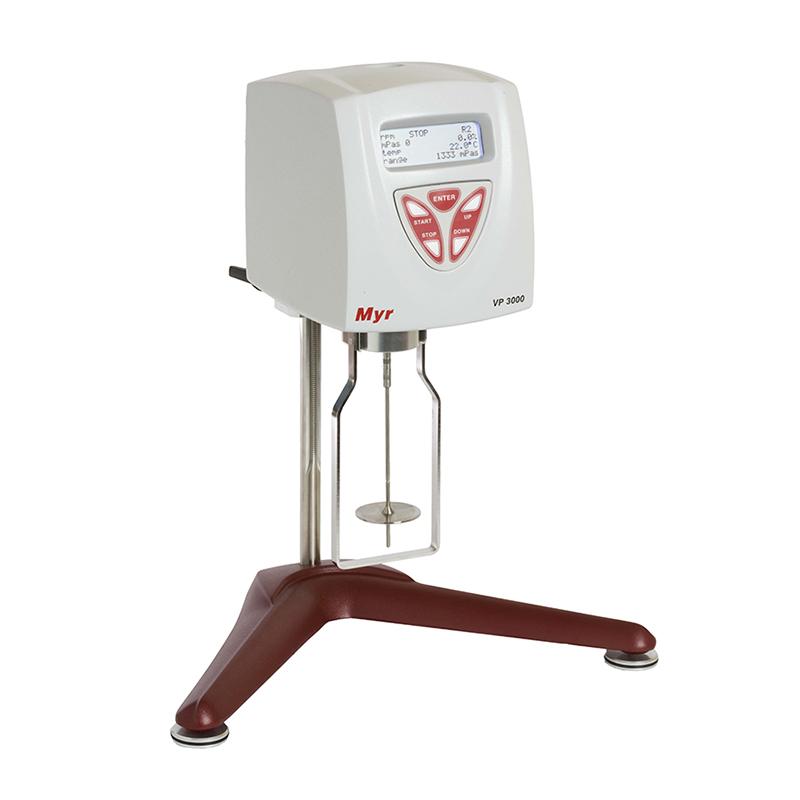

Actual picture of the product
Optional
Adapter for smaller samples
Adapters for low-viscosity materials
Computer basic software
Adapter for rotational motion
* The above adapters are equipped with different viscosity ranges
Rotor R1 (only for R- and H-type rotors, and viscosity limit can be expanded)
* For use with V1 or V2, both with different viscosity ranges
Computer basic software
Safety precautions:
Avoid using in excessively high or low environments;
Avoid humid environments;
Overview of Rotational Viscometer models
| Model V1 | 0.3, 0.5, 0.6, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 10, 12, 20, 30, 50, 60, 100, 200 rpm |
| Model V2 | 0.1, 0.2, 0.3, 0.5, 0.6, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 10, 12, 20, 30, 50, 60, 100,200 rpm |
| rotor | |
| L-type (low viscosity) | 4 rotors (L1 - L2 - L3 - L4) |
| Type R (Medium Viscosity) | 6 rotors (R2 - R3 - R4 - R5 - R6 - R7) |
| H-type (high viscosity) | 6 rotors (H2 - H3 - H4 - H5 - H6 - H7) |
| Viscosity range | |
| V1L | 3 - 2,000,000 mPas/cP - 76 ranges (19 RPM - 4 rotors) |
| V1R | 20 - 13,000,000 mPas/cP - 114 ranges (19 RPM - 6 rotors) |
| V1H | 1.6 - 1,066,660 dPas/P - 114 ranges (19 RPM - 6 rotor) |
| V2L | 3 - 6,000,000 mPas/cP - 84 ranges (21 RPM - 4 rotors) |
| V2R | 20 - 40,000,000 mPas/cP - 126 ranges (21 RPM - 6 rotors) |
| V2H | 1.6 - 3,200,000 dPas/P - 126 ranges (21 RPM - 6 rotors) |
| precision | ±1% |
| repeatability | ±0.2% |
 |  |
Take you to the Dutch TQC
TQC sheen DV1310 ViscometerSpecifications
| LIST | VALUE |
|---|---|
| Display | LCD display |
| Measurement range | 1.6~3200000 dPas /P |
| Rotor specification | H2、H3、H4、H5、H6、H7 |
| Rotor speed | 0.1/0.2/0.3/0.5/0.6/1/1.5/2/2.5/3/4/5/6/10/12/20/30/50/60/100/200rpm |
| Reproducibility | ±0.2%F.S |
| Measurement Accuracy | ±1%F.S |
| Power supply Voltage | 100~240V 50~60Hz |
| Interface | PT-100 interface, RS-232 interface |

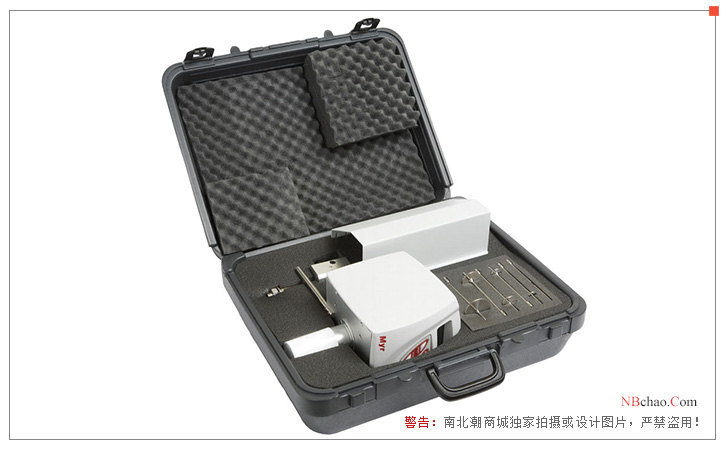

TQC sheen DV1310 Viscometer Packing list
Host x1, storage rack standard rotor (6 H-shaped rotors) x1, rotor protection x1, temperature sensor PT100x1, calibrated certificate x1, user manual x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
