Introduction
Shenyang Kejing PTL-MM01 pulls the film coating machine to grow the film by vertically lifting the sample in the liquid phase. This machine is controlled by single-board computer, which runs smoothly and accurately, and is the satisfactory equipment for the laboratories of colleges and universities and research institutes.
Features
1. It can be equipped with a constant temperature chamber of up to 200°C to provide a stable constant temperature environment for lifting the coating film.
2. It has passed CE certification.

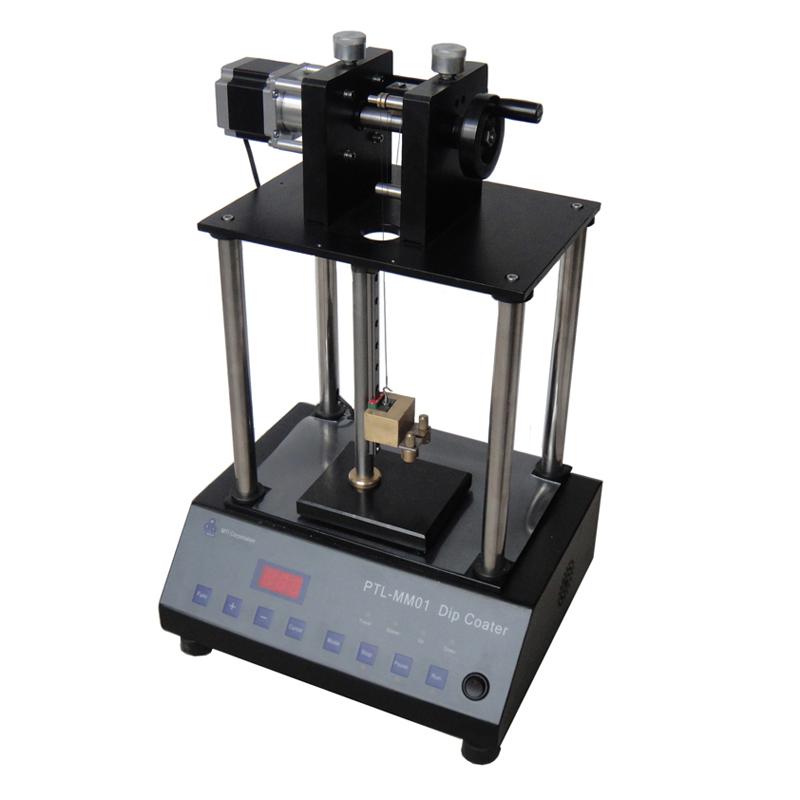

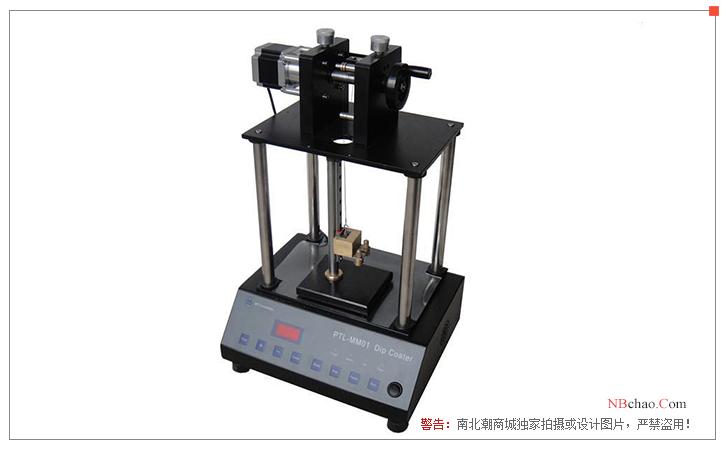

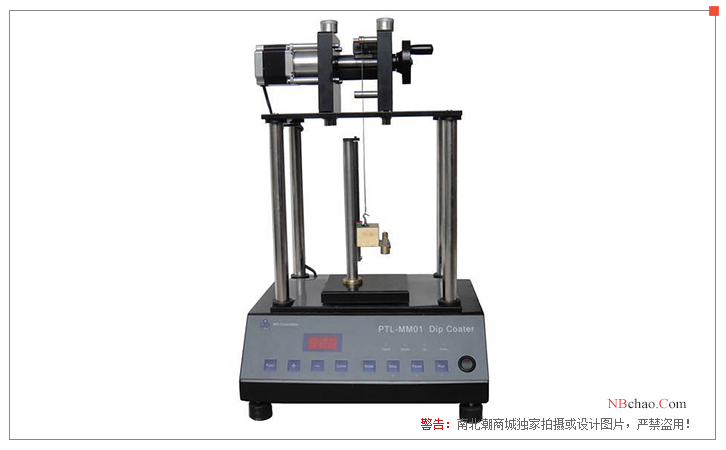

Product display diagram


Optional
1. Rapid sample fixture
2. Drawing wire
ShenYang KeJing PTL-MM01 Film Applicator Specifications
| LIST | VALUE |
|---|---|
| Power | 50W |
| Pull speed | 1~200mm/min |
| Rotation speed stability | ±0.05% |
| Sample size | 75*25*2.5mm |
| Power supply Voltage | 220V |
| Dimensions | 320*260*560mm |
| Weight | 18kg |
ShenYang KeJing PTL-MM01 Film Applicator Packing list
host x1, manual x1, warranty card x1, certificate x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
