KOSON KS-35 split bar scanner, protective layer thickness 6~ 220mm

KOSON split steel bar scanner KS-35 is a steel bar scanner that detects the thickness of the protective layer, the diameter and position of the steel bar. KS-35 is suitable for the inspection of steel bars in bridges, tunnels and other structures.

Brand

SKU: NB009570

KOSON

Model

KS-35

Get Quote

KOSON shop

Information

Datasheet Catalog

What else did others buy

KOSON KS-10T (iron) Bolt TensIon Meter measurement range 0~100KN domestic (CN) pump

$ 480.00
KOSON KS-100T bolt drawing instrument, pulling force range 0~1000KN

$ 1327.00
KOSON KS-50T anchor pull-out instrument, anchor pull-out force instrument, pull-out force range 0~500KN

$ 809.00
Runjie RJ-10 (Φ6~ Φ20) anchor, specially equipped with RJ-10 anchor puller

$ 203.00
Runjie RJ-1 Anchor TensIon Meter, pressure measuring range 0~10kN

$ 450.00

Genuinegoods

KOSON KS-35 Split bar scannerOverview
Specifications
Comments
FAQs

KS-35

Split bar scanner

Detection principle

KOSON KS-35 split steel bar scanner adopts the electromagnetic pulse method with super anti-interference ability for non-damage detection.

Features

Detection of the position, distribution and direction of the reinforcement, the thickness of the protective layer and the diameter of the reinforcement in concrete structure engineering;
Construction quality acceptance inspection of concrete structures of buildings;
Detection and detection of steel bars in bridges, tunnels and other structures;
Detection data storage, viewing function, data transmission function.

According to the standard

Code for Acceptance of Construction Quality of Concrete Structure Engineering GB 50204-2015

Technical Standard for On-site Inspection of Concrete Structures GBT50784-2013

Technical specification for the detection of reinforcement in concrete, JGJ/T152-2008

Technical Standard for Detection of Building Structures GB/T50344-2004

"Technical specification for detecting the thickness of the protective layer and the diameter of the reinforcement by electromagnetic induction" DB11/T365-2006

"Specification for Measurement and Calibration of Reinforcement Protective Layer Thickness Measuring Instrument and Floor Thickness Measuring Instrument" JJF1224-2009

Product display diagram

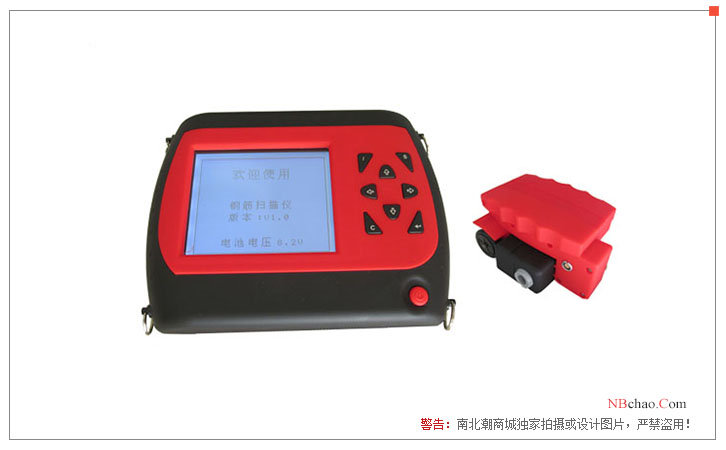

KOSON split rebar scanner KS-35 display diagram

KOSON KS-35 Split bar scannerSpecifications

LIST	VALUE
Protective layer thickness measurement (nominal) range	The first Measurement Range: 6mm~ 90mm; the second Measurement Range: 7mm~ 220mm;
Measurement range of steel bar diameter	Ф6~Ф50mm
Steel protective layer thickness Measured value MPE	Protective layer thickness first range (nominal) range 6~ 59mm ：≤ +/- 1mm; 60~6 9mm ：≤ +/- 2mm; 70~90mm ：≤ +/- 4mm; protective layer thickness second range (nominal) range 7~ 7 9mm ：≤ +/- 1mm; 80~119 mm ：≤ +/- 2mm; 120~200mm ：≤ +/- 4mm
Measured value MPE range	+/- 1st gear
Display	160×128mm
Normal operation Environmental requirements	Operating temperature: -10 ℃~ + 40 ℃; Relative Humidity: < 90% RH (no corrosion gas in the air; no strong electromagnetic interference;)
Power Supply	Rechargeable battery with a Power Supply time of up to 50 hours
Host size	220×165×90mm
Probe Volume	105×55×30mm

KOSON KS-35 Split bar scanner Packing list

Host x1, probe X1, cable X1, charger X1, measurement car X1, software CD X1, instrument case X1, manual x1, warranty card x1, certificate x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
