AMITTARI AC-110MC Integrated Coating Thickness Gauge Dual function Film Thickness Gauge 0~500μm

Introduction

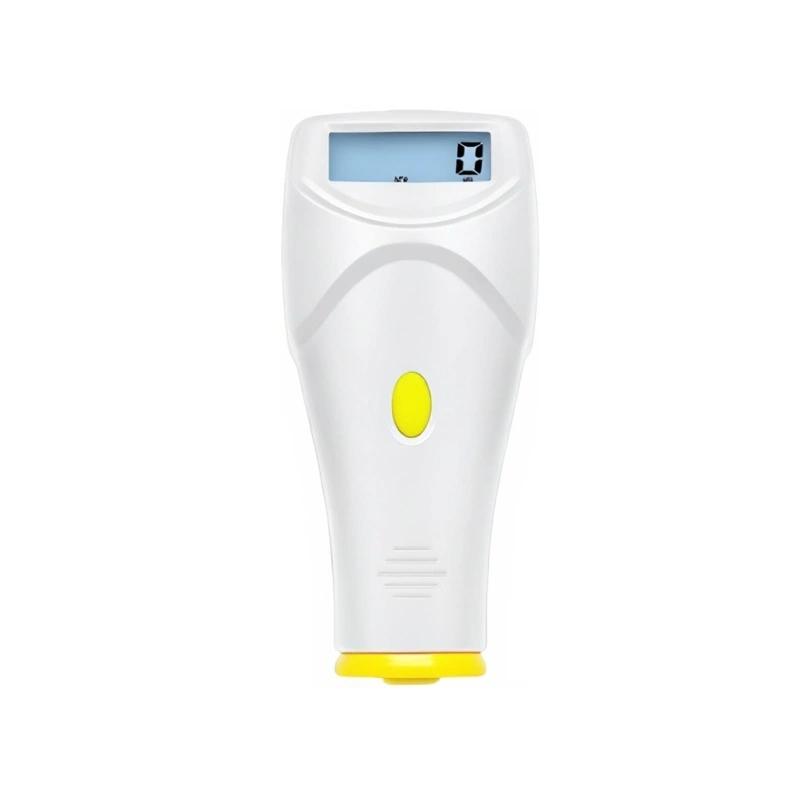

An Miao AC-110MC Coating Thickness Gauge is a battery-powered portable measuring instrument , which adopts the principle of magnetic induction and eddy current. The measurement method complies with international standards ISO2178, ISO2360 and national standards Gb4956, Gb4957. It adopts computer technology non-destructive testing technology and other professional technologies to accurately measure the thickness of the measured object without damaging it.

Applications

* The F-type probe can directly measure the thickness of the non-magnetic coating layer (such as: paint magnetic-conductive materials (such as iron and nickel). It can be applied to the thickness measurement of electroplating layer, paint layer, enamel layer, aluminum tile, copper tile , babbitt tile, phosphating layer, paper, and also can be used for thickness measurement of hull paint and attachments of underwater structural parts.

* The Nf type probe can measure the thickness of the insulating , such as paint, plastic, rubber coating on the surface of aluminum, copper, zinc, non-magnetic stainless steel and other materials , and can also measure aluminum or aluminum The thickness of the anodic oxide layer of the alloy material .

Features

* The spring guide sleeve probe with wear-resistant hard metal probe can not only measure on hard or rough surfaces, but also ensure that the probe has constant pressing force and stable sampling value.

* Wide measuring range and high resolution.

* Automatic memory calibration value, easy to use.

* Integrated structure, small size and light weight.

* Digital backlight display, no parallax.

* With optional software and USB cable, it can communicate with PC computer to realize data collection, processing, analysis and printing functions.

* Amy AC-110MC Coating Thickness Gauge is equipped with automatic shutdown to realize power saving function.

Product Structure

1. Display; 2. USB cable interface; 3. Power/zero key; 4. Battery cover; 5. Wrist strap buckle; 6. Measuring sensor

Pictures

Host x1, iron base x1, aluminum base x1, calibrated diaphragm x1, wrist rope x1, leather case x1, operation manual x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
