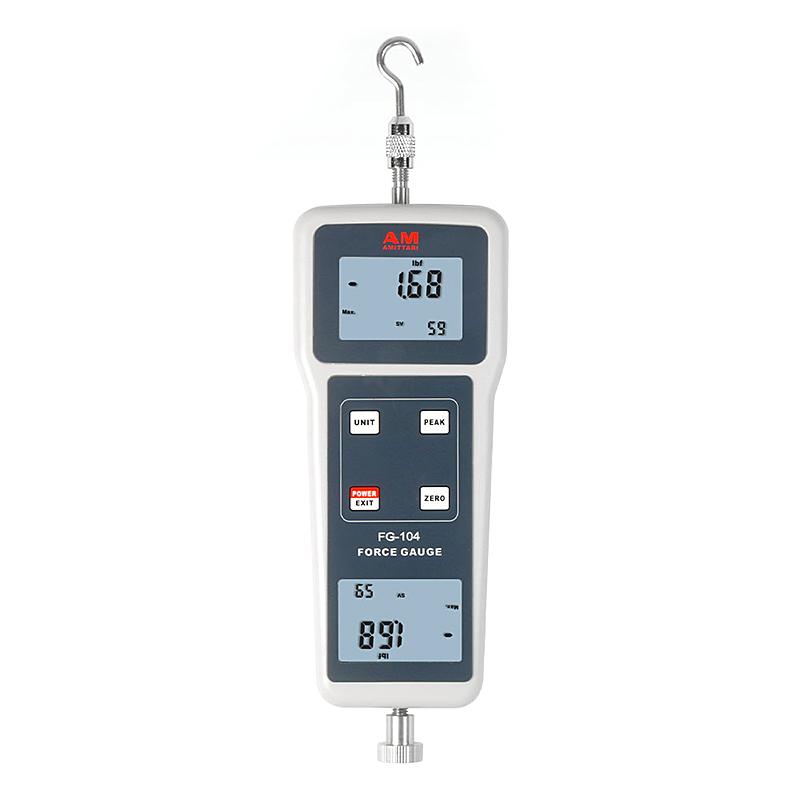

AMITTARI FG-104-50K Digital Display Force Gauge high-precision miniature tensile Tester
High-precision Measurement range +/- 50kgf/+/- 490N/+/- 110Lbf, resolution 0.01kgf/0.1N/0.1Lbf, with peak hold and four unit conversion functions, automatic shutdown in 10 minutes.
AMITTARI
FG-104-50K
Digital push-pull gauge is a small, simple, multi-functional and high-precision thrust and pull testing instrument, widely used in electronic appliances, construction hardware, light industry textiles, auto parts, ignition devices such as lighters, fire-fighting equipment, pen-making, manufacturing Push-pull load, insertion force test, destructive test, etc. in locks, fishing gear, chemical industry, power machinery, scientific research institutions and other industries.
product features
High precision and high resolution. Digital display, no parallax.
N (Newton), kg (kilogram), lb (pound), g (gram) are available for selection and mutual conversion.
Peak hold function. Keep peak display until manually cleared.
Green and environmentally friendly, it can be set to automatically shut down without any operation for 10 minutes; it can also be shut down manually.
Alkaline batteries can be used for power supply; it can also be powered by 6V DC power supply.
Models
| model | FG-104-1K | FG-104-2K | FG-104-5K | FG-104-10K | FG-104-20K | FG-104-50K | FG-104-100K |
| Measuring range | ±1kgf | ±2kgf | ±5kgf | ±10kgf | ±20kgf | ±50kgf | ±100kgf |
| ±1000gf | ±2000gf | ±5000gf | |||||
| ±9.8N | ±19.6N | ±49N | ±98N | ±196N | ±490N | ±980N | |
| ±2.2Lbf | ±4.4Lbf | ±11Lbf | ±22Lbf | ±44Lbf | ±110Lbf | ±220Lbf | |
| resolution | 0.001kgf | 0.001kgf | 0.001kgf | 0.001kgf | 0.01kgf | 0.01kgf | 0.01kgf |
| 1gf | 1gf | 1gf | |||||
| 0.01N | 0.01N | 0.01N | 0.01N | 0.1N | 0.1N | 0.1N | |
| 0.001Lbf | 0.001Lbf | 0.01Lbf | 0.01Lbf | 0.01Lbf | 0.1Lbf | 0.1Lbf |
AMITTARI FG-104-50K Digital Force GaugeSpecifications
| LIST | VALUE |
|---|---|
| Measuring range | ±50kgf//±490N/±110Lbf |
| resolution | 0.01kgf//0.1N/0.1Lbf |
| Error of indication | ± 0.5% FS (range) ± 1 digital peak |
| unit | KgfNLbfgf |
| A measurable value | Peak, instantaneous value |
| display | Four-digit large LCD, positive dual display |
| shutdown mode | 10 minutes automatic shutdown or manual shutdown |
| Allowable load | 150% F.s (buzzer alarm when over 110% F.s) |
| Power | 2 AA batteries, or 6V DC Power |
| Allowable Operating Temperature | 0 ~ 40℃ |
| Allowable Relative Humidity | <80% |
| Operating Environment | No source and corrosive medium around |
| Net Weight | 390g |
| Dimensions | 211x80x36mm |
AMITTARI FG-104-50K Digital Force Gauge Packing list
Electronic tension meter x1, tension hook x1, flat probe x1, conical probe x1, V-shaped groove probe x1, V-shaped wedge probe x1, extended connecting rod (double-headed screw, double-headed nut) x1, instruction manual x1, portable case x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
