TQC AB3057 Applicator rod 20μm WFT application width 320mm

The Dutch TQC Applicator rod AB3057 is a stainless steel wire-wound Applicator rod with a preparatory film thickness of 20μm. The AB3057 Applicator rod is suitable for supporting Automatic Film Applicators.

Brand

SKU: NB009826

TQC sheen

Model

AB3057

Get Quote

TQC sheen shop

Information

Datasheet

What else did others buy

Pushen XB-I 120μm wire rod, length 240mm

$ 98.00
RDS 24 1/4 "wet-film Applicator rod film thickness 54.9μm rod diameter 6.35mm

$ 156.00
RDS 6 #1/4 "wire-wound Applicator rod film thickness 13.7μm Wire diameter 0.15mm

$ 156.00
RK K101.10.9 coater special rod No. 9 WFT 120μm

$ 178.00
Japan OSP-52/400 painting coating bar WFT 52μm length 400mm

$ 173.00

Genuinegoods

TQC sheen AB3057 Mayer RodOverview
Specifications
Comments
FAQs

AB3057

Mayer Rod

Introduction

The coating width of the Dutch TQC filament wound coating rod is 320mm, and the thickness of the wet film that can be prepared is 4~200μm.

Wire bar applicators, also known as threaded wire bars, are ideal for preparing films on paper or plastic. In addition, it is also suitable for film making on soft substrates. TQC coating rods are made of stainless steel, which has good acid and alkali resistance. The coating rod can be used in conjunction with the automatic coating machine.

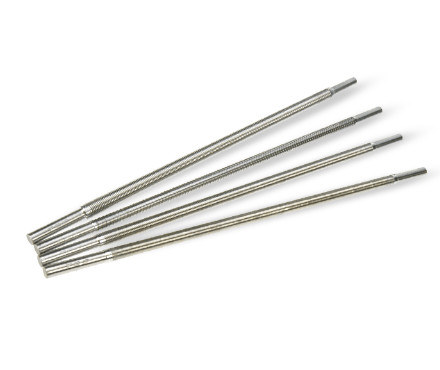

Dutch TQC coating rod AB3057

Product parameters

Model	Wet film thickness	Coating width	Overall length	Straightness	Material	craft
AB3050	4μm	320 mm	440mm	< 50 μm	stainless steel	Winding
AB3051	6μm
AB3052	8μm
AB3053	10μm
AB3054	12μm
AB3055	14μm
AB3056	15μm
AB3057	20μm
AB3058	24μm
AB3059	30μm
AB3060	34μm
AB3061	42µm
AB3062	40μm
AB3063	50μm
AB3064	56μm
AB3065	60μm
AB3066	76μm
AB3067	100μm
AB3068	120μm
AB3069	200μm

Optional

TQC sheen AB3057 Mayer RodSpecifications

LIST	VALUE
Production process	Wire-wound
WFT	20μm
Total length	440mm
Application width	320mm
grip width	60+60mm
material	stainless steel

TQC sheen AB3057 Mayer Rod Packing list

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

The solid content of the product is 20%, and the dry-film thickness after scraping should be 4 microns. Can this film applicator?

[A]

Sure
