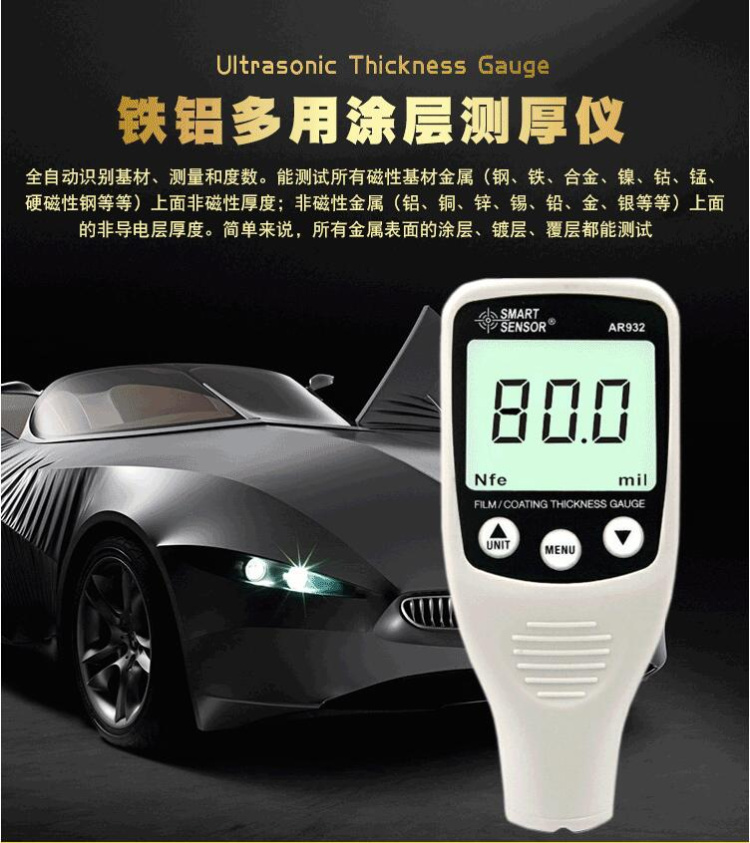

SMART SENSOR AR932 Coating Thickness Gauge 0~1500a Film Thickness Gauge

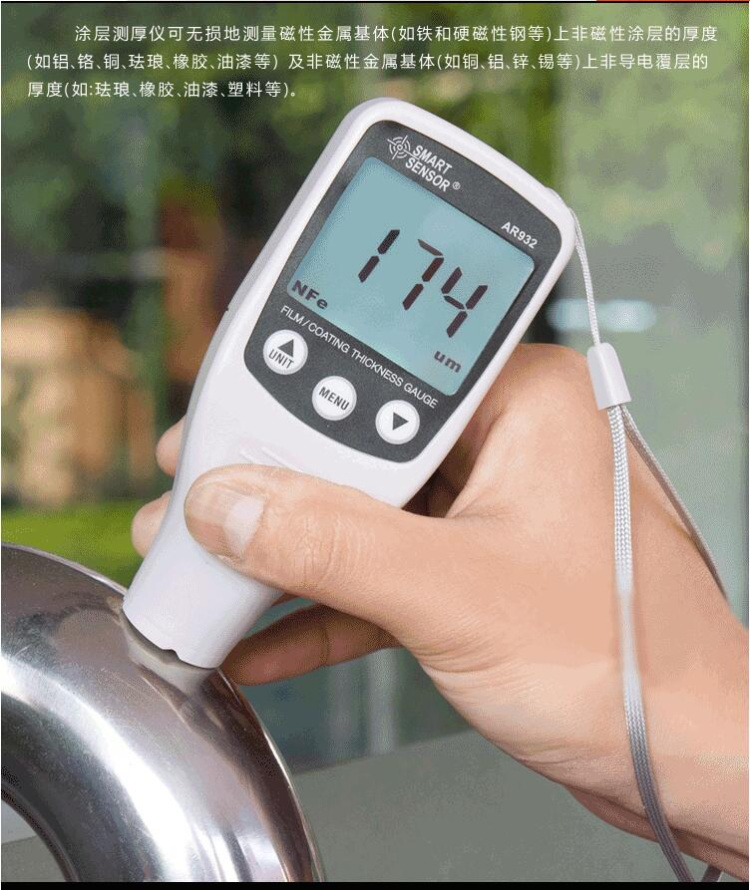

 This coating Thickness Gauge adopts the principle of dual-function measurement technology, namely magnetic and eddy current thickness measurement, which can automatically identify magnetic and non-magnetic substrates, and then adopt the corresponding test methods, which can non-destructively measure magnetic metal substrates such as steel and iron. Alloys and hard magnetic rigid wires on the thickness of non-magnetic overlays such as aluminum, copper, enamel, rubber, paint, etc., and non-magnetic metal substrates such as copper. Aluminum, zinc, tin, etc., on the thickness of non-conductive overlays such as enamel, rubber, paint, and has a basic statistical function and stores 20 readings, calculating the maximum, minimum and average values.

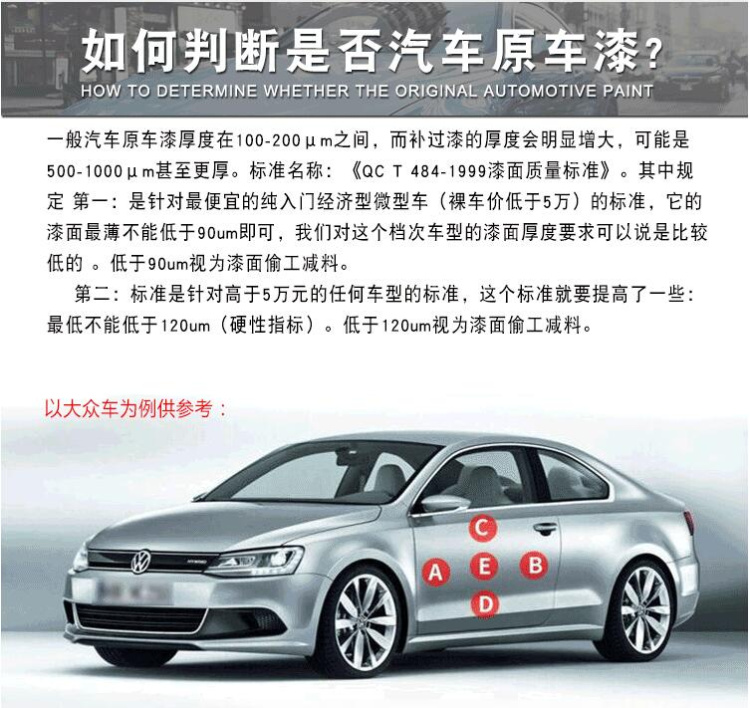

This coating Thickness Gauge has the characteristics of small measurement error, high reliability, good stability, simple operation, etc., and is a testing instrument required to control and ensure the quality of product coating, and is widely used in the testing fields of automobile and aircraft shipbuilding, metal processing industry, chemical industry, commodity inspection and so on.

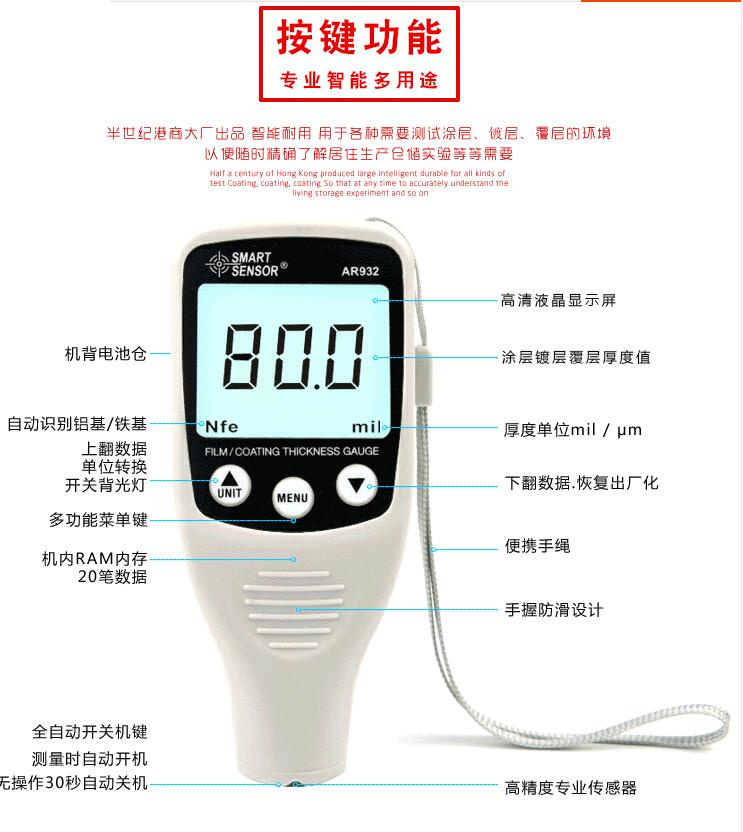

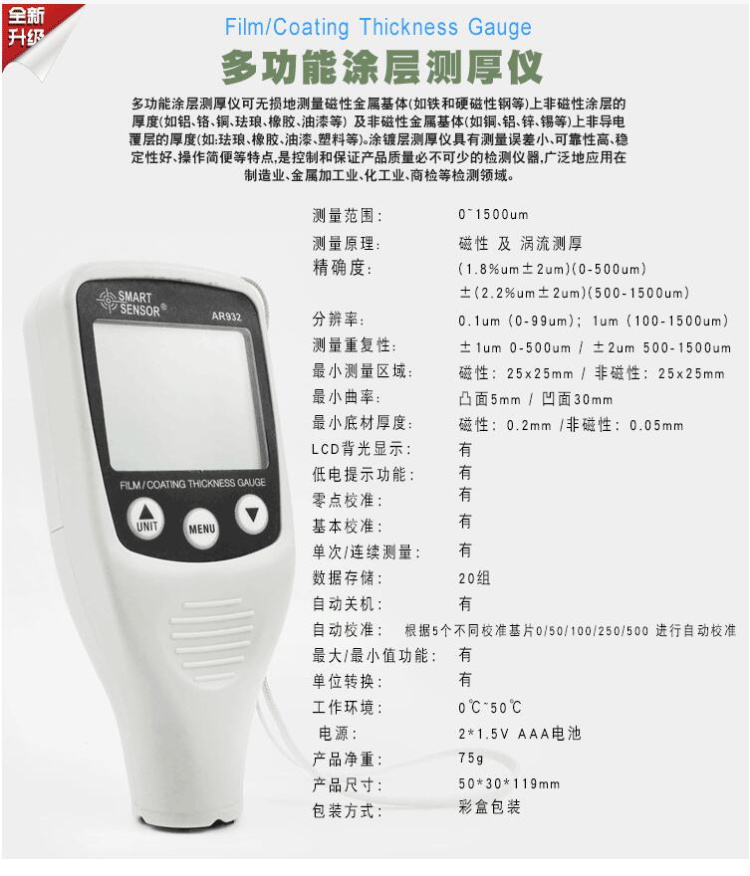

Features or Functions

• Install the battery, touch the substrate, automatically turn on, and automatically shut down after 30S.

• Automatically recognizes the base material and displays the corresponding base material

• Extra-large LCD display

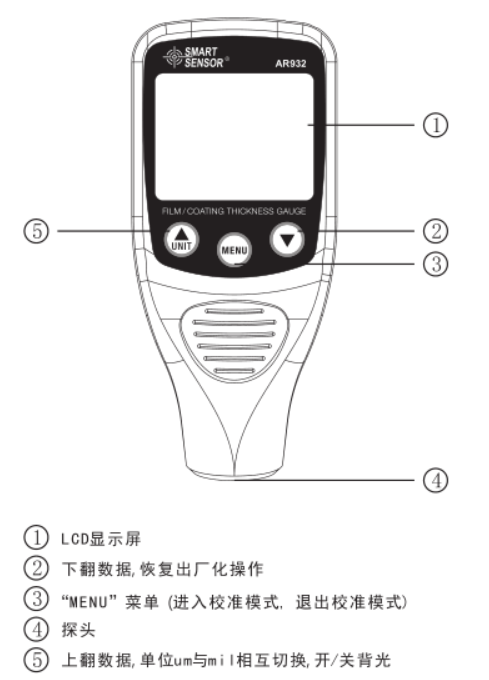

• Three simple buttons for easy operation

• It can be operated with one hand and has a hand-held anti-slip treatment

• Convenient auto-calibration functionAutomatic calibration is performed according to 5 different calibration substrates 0/5/100/250/500

• The automatic calibration function of the value can be customized according to the requirements from 0 to 1500 Um

• Automatic correction function to prevent calibration misoperation

• Dynamically adapt to the environment

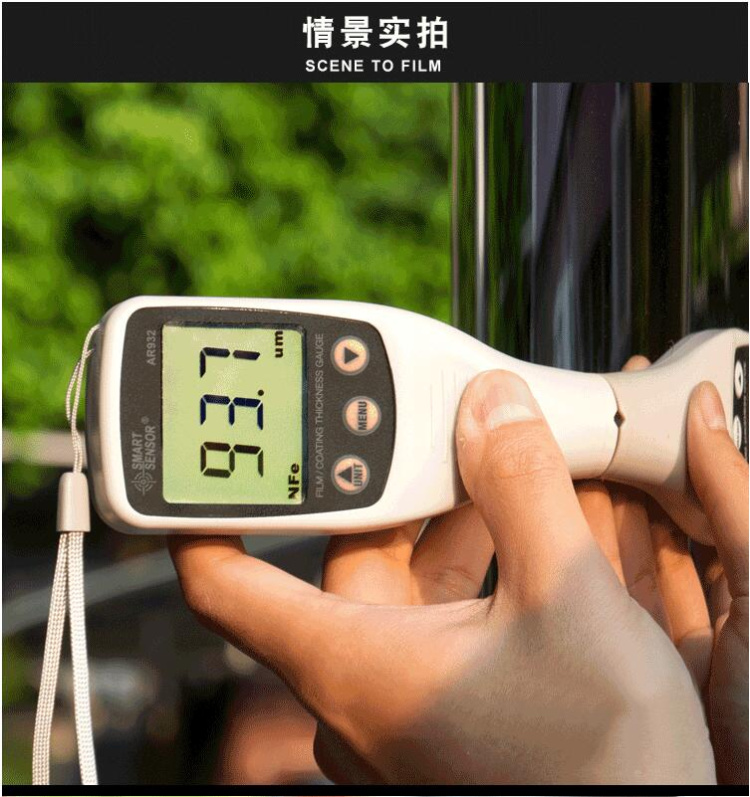

• The V-groove is suitable for measuring on cylindrical parts

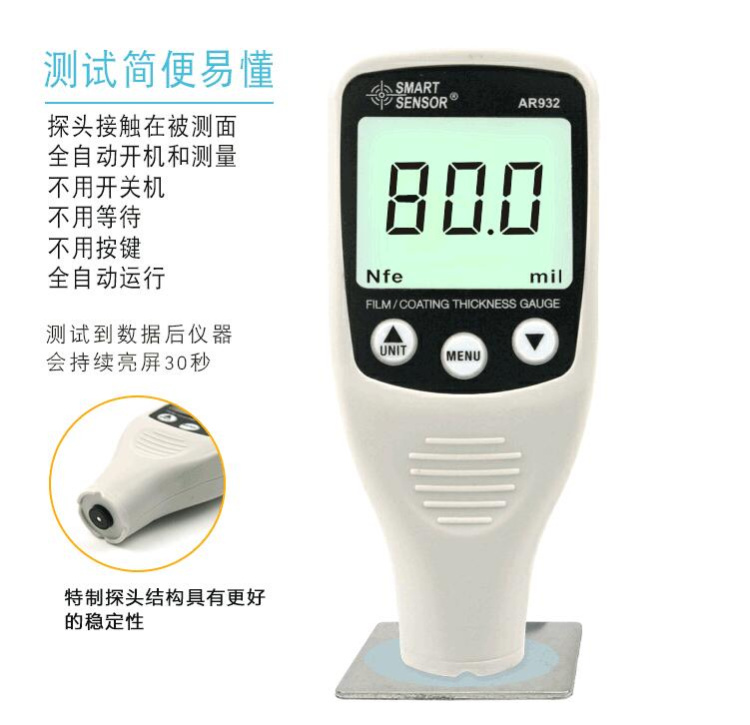

• The special probe structure provides better stability

• An audible indication that the measurement or calibration is complete

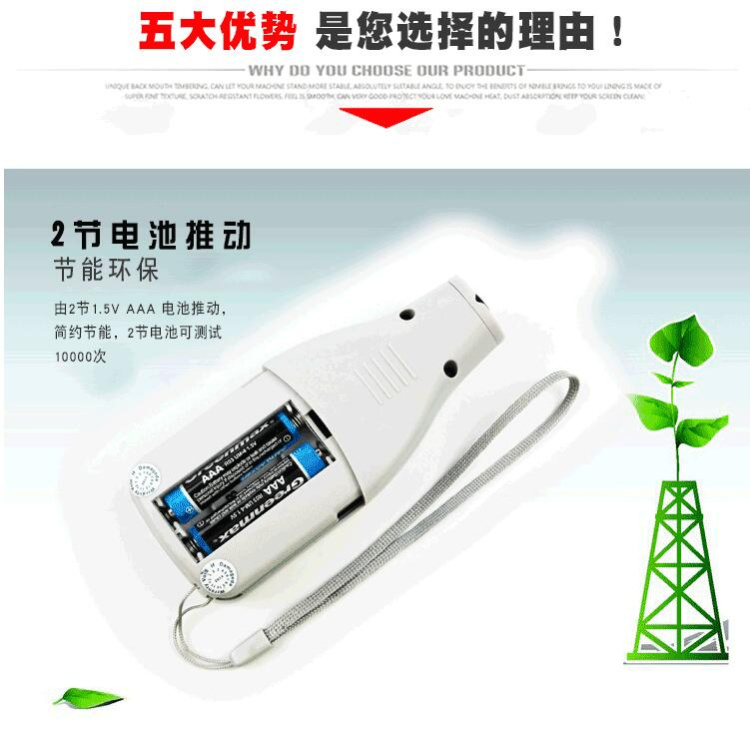

• Battery level indication

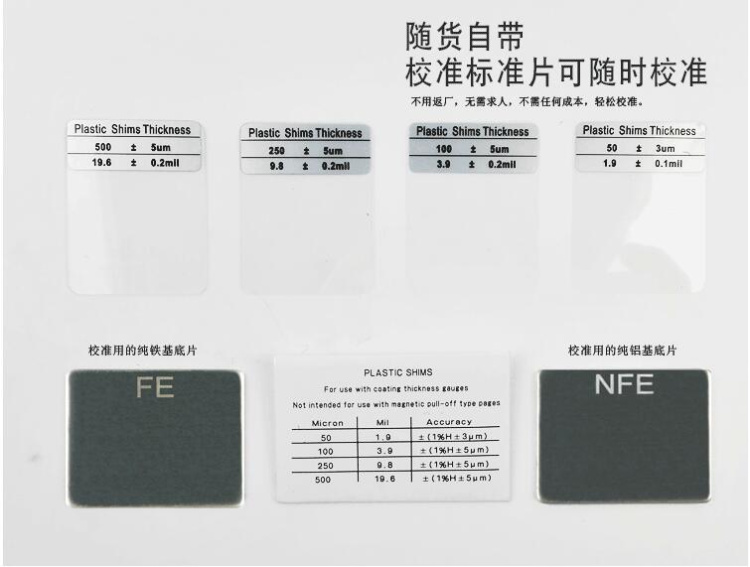

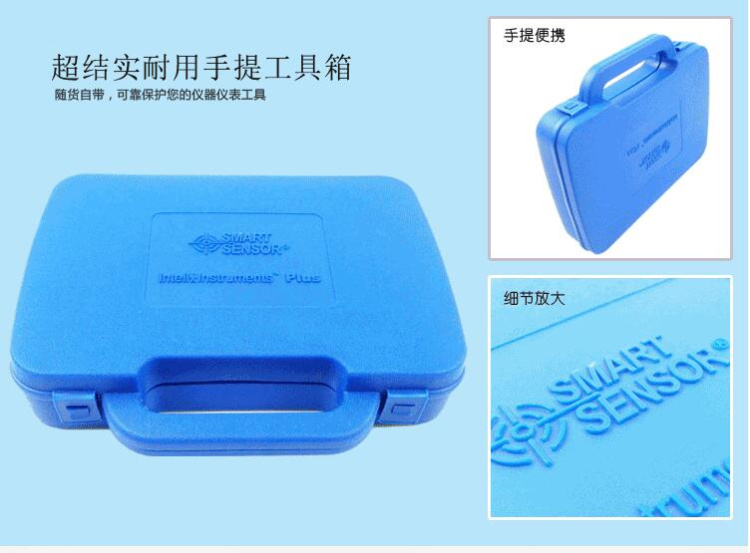

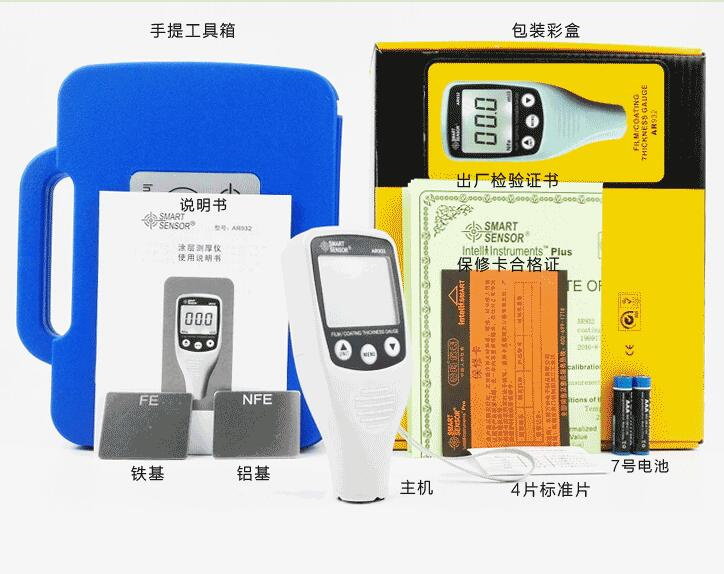

Thickness gauge x1, original battery x1, factory inspection certificate x1, calibration shim X4, warranty card certificate x1, iron base x1, aluminum base x1, manual x1, portable toolbox x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
