Reader's Guide
This manual is compiled based on manufacturer's data. Due to equipment batch changes, the content may not fully match every physical unit. Please refer to the actual operation and on-device labels.
Copyright belongs to the manufacturer. For internal reference of purchasers only. If safety parameters in the manual differ from the physical unit, please suspend operation and consult our engineer for confirmation.
Disclaimer: This manual is for reference only. In case of any discrepancy, the physical unit shall prevail. Our company assumes no liability for any consequences arising from operations based on this manual.
YIHENG BPC-F with printed biochemistry cultivating box instruction manual
Safety tips
Danger (may result in serious property loss or personal injury)
This product must be reliably grounded and kept away from sources of electromagnetic interference (neutral or centerline must not be used as ground).
Before use, please confirm that the voltage and frequency of the power supply match the product requirements.
Products should use independent power outlets, and ensure that plugs and sockets are properly grounded.
It is not allowed to unplug or plug in the power cord arbitrarily without turning off the power switch during operation.
It is not allowed to arbitrarily extend or cut the product's power cord.
Repairs must not be performed without authorization; repairs commissioned by our company must be performed by professionals.
Warning (may result in property damage or personal injury)
You must fully read and understand the product manual before proceeding.
The 304 stainless steel inner tank is not acid-resistant. Please take anti-corrosion measures, and never use acidic media inside the box!
When unplugging the power cord, do not drag the power cord directly.
If any of the following situations occur, you must unplug the power cord of this product:
When replacing the fuse;
When a product malfunction is awaiting inspection and repair;
When the product is discontinued for a long time;
When moving products.
Note (may affect service life and cause the product to malfunction)
During product handling, the tilt angle must not exceed 45 degrees to avoid damage to the refrigeration system.
After the product is transported and placed in place, it should be left to stand for (1~2) days before starting the machine, to ensure the refrigeration system operates normally and extends its lifespan.
Products should be placed on a hard and solid surface to keep them level.
A certain amount of space should be left around the product.
Products must be used under certain operating conditions.
Do not forcefully open or close the product box door, as this may cause the door to fall off, damage the product, and lead to injury accidents.
When the product is out of use for a long time, regular moisture removal should be performed to avoid damaging related components.
Product Introduction
1. Appearance drawing
BPC series biochemical incubators

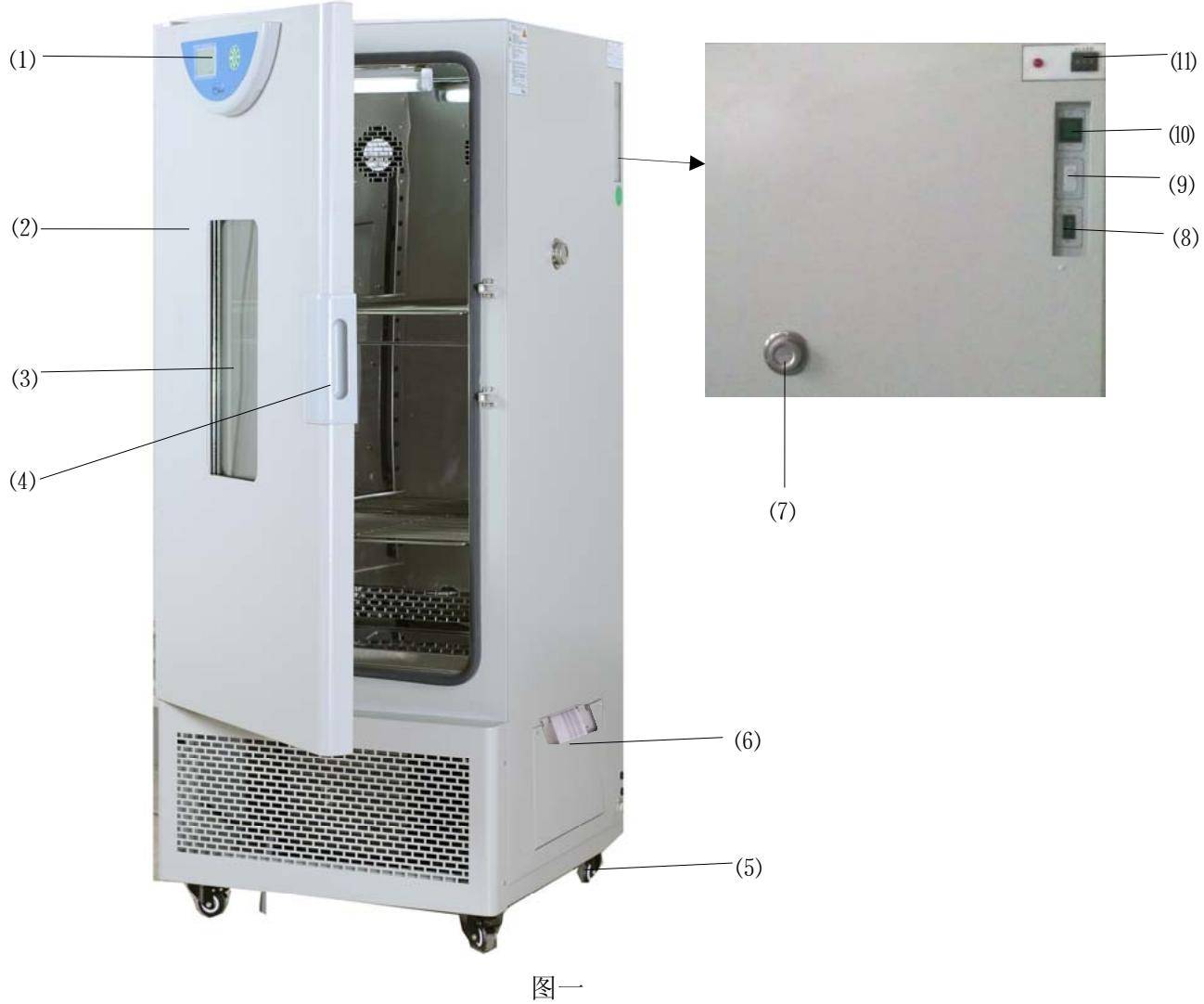

(1) Controller (2) Box door (3) Observation window (4) Door handle (5) Wheel feet (6) Microprinter (optional) (7) Test port (8) UV lamp switch (9) Refrigeration transfer switch (10) Power switch (11) Independent temperature limiting controller (optional)
2. Overview of structural functions
Cabinet: The casing is stamped from steel plates with a surface spray coating; The inner liner is made of mirror-finish stainless steel, with semi-circular curved corners that are very easy to clean, and the spacing between shelves inside the box is adjustable.
Cycle: Inside the enclosure, there are cold and hot air flow ducts, and the fan operation enhances smooth gas circulation to improve the uniformity of the studio temperature.
Control: A digital circuit controller composed of a CPU-programmable processor, featuring PID adjustment characteristics, timing control, error correction, and deviation alarm functions. Together with a Pt100 platinum resistor and heating (cooling) component, it forms a closed-loop automatic control system.
Display: It uses an LCD black screen with a user-friendly display of text and images.
Protection: Equipped with delayed compressor start and overheat protection functions; Equipped with a multi-level independent over-temperature alarm protection system:
Level 1 Over-Temperature Protection: The temperature controller is equipped with an upper deviation alarm function, allowing users to adjust the AL1 deviation parameter as needed.
Level 2 Over-Temperature Protection: When the actual temperature of the equipment exceeds the high-temperature limit set protection value, the heating section is automatically cut off and an audible and visual alarm is triggered. Since the circulation fan is still operating normally during the alarm, the alarm will automatically be canceled when the temperature falls below the set value. (User optional part)
Level 3 Over-Temperature Protection: The electric heating pipe circuit is connected in series with an overheat protector. When the temperature inside the box reaches the maximum temperature control value, the temperature relay automatically disconnects to prevent dangerous situations. When the temperature falls below the control value, it returns to normal.
Convenience: The biochemical box door has a large double-glazed observation window. On the right side of the enclosure, there is a measuring hole with a diameter of φ25mm, which facilitates temperature measurement.
Environmental protection: The refrigeration system uses fluorine-free refrigerants to meet environmental protection requirements.
Functional Scalability: Supports RS232/RS485 interfaces for remote control; (Optional) Optional micro printer for real-time printing and long-term data preservation; (Optional)
Product usage
1. Preparation before use
Products should operate under the following usage conditions:
Ambient temperature: 15°C~35°C, relative humidity not exceeding 85%;
Power supply: (220±22)V (50±1)Hz;
Atmospheric pressure: (86~106) Kpa;
Figure 2
No strong vibration sources or strong electromagnetic fields nearby;
It should be placed in a stable, level indoor area free of heavy dust, direct sunlight, and corrosive gases;

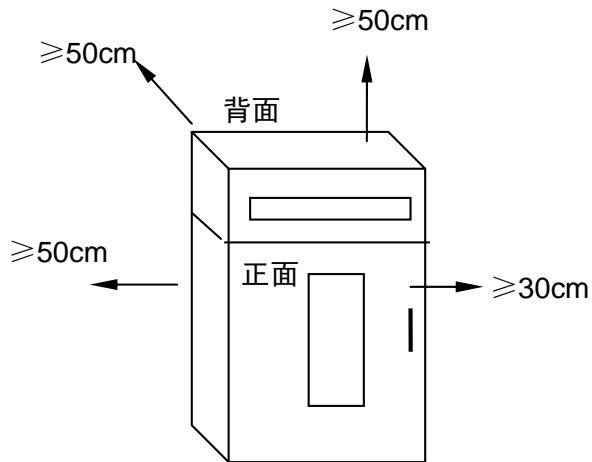

Leave sufficient space around the product, as shown in Figure 2;
Arrange them properly, adjust the position and quantity of shelves, and when placing items in the studio, ensure there are sufficient gaps around the top and bottom, and the weight should be so that the shelves are not bent or deformed by pressure.
2. Description of the thermometer panel

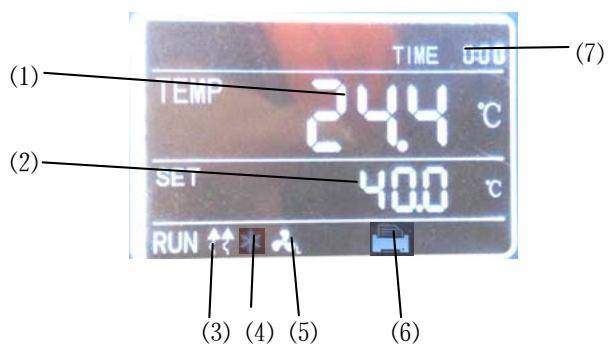

Figure 3: Operation and temperature controller panel diagram
1.1 Indicator Light Description
TEMP Zone (PV): Displays measurement temperature;
SET Zone (SV): Displays the set temperature;
Heating lamp: The light turns on when there is heating output;
Cooling Lights: Delayed flashing, lights up when there is cooling output; Turns off when there is no cooling output;
Fan indicator light: Lights up when the fan is outputting;
Printing Functions: Lights up when printing is present; (Optional)
TIME: Time display window; Displays runtime or parameter values.

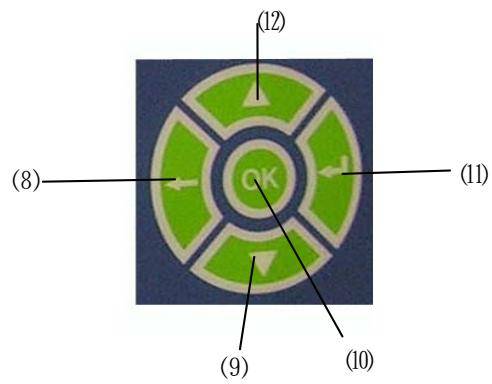

1.2 Key Description
Shift key: Used for shifting set values, internal parameters, and viewing ambient temperature;
Decrease key: Used for modifying set values, various parameters, or start/stop auto-tuning;
OK key: Used to modify set values or enter internal parameter settings; press and hold the setting button for more than 3 seconds while parameter setting mode to exit;
Key: Press for 3 seconds to run or stop the controller;
Add key: Used for setting values, internal parameters, or checking remaining cycles.
2. Operating steps
Timer Function: Press the "OK" button once; when the time is set to 0, the timer function is disabled; When the time setting is not zero, the controller has a timer function. Press the "OK" button, and the TIME value flashes, indicating the time can be set as needed. Use the "Increase", "Decrease", and "Shift" keys to set the desired time value. When the timer is up, the TIME window displays "END" and the buzzer sounds. You can mute it with any key.
Temperature settings: Press the "OK" button again; the SET window value will flash, indicating the temperature can be set as needed. Use the "Increase", "Decrease", and "Shift" keys to set the desired temperature. Press the "OK" button again to return to standard display mode.
Note: (1) For each parameter modification, press the "OK" key to confirm for the modification to be valid.
(2) After setting all parameters, press the " " key and wait about 4 seconds before starting operation.
3. Setting up the upper deviation alarm
The setting of the upper deviation is reasonable, providing protection against system temperature control exceeding or losing control, and must be used during product operation.
Example: If the product is set to AL=50 at the factory, the alarm temperature is: (set temperature value + AL value)°C
4. Check the accuracy of temperature control
To ensure successful cultivation, use it during the first use or at regular intervals.
Place a 0.5°C grading mercury thermometer (or a digital thermometer with 0.1°C resolution) into the product workroom;
The mercury thermometer head should be positioned at the geometric center of the effective workspace in the studio
Within the product's temperature control range, select any point and set the SV temperature control value. When the PV measurement equals the set value, maintain the temperature for about 1~2 hours (the duration varies depending on product specifications). Observe that the actual temperature measured by the mercury thermometer and the PV readings displayed by the thermometer should be less than or equal to the temperature control fluctuation.
After the product has been used for a period of time, the temperature control accuracy should be checked according to the method in 4.2. If it exceeds ±1°C, the following corrections can be made:
4.3.1 Enter the thermostat C menu;
4.3.2 Press the function key several more times to find the L66 symbol,
According to PK = 4000 × (Measured value PV - mercury meter reading) / mercury meter reading
After formula calculation, use keys to modify the original factory PK value (Note: If one correction is inaccurate, it can be revised repeatedly until it matches).
5. How to use the optional "independent temperature limiting controller"
An independent temperature limiting controller is a separate protection system. When the temperature controller malfunctions and causes temperature loss and the temperature inside the workroom reaches the temperature limit set on the over-temperature dial, the independent temperature controller will automatically cut off heating and sound an alarm.

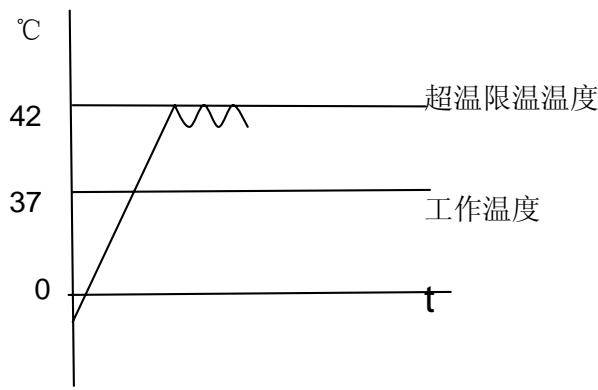

(As shown in the figure on the right) When the temperature inside the workroom falls below the temperature limit set value, the protection system is deactivated and the instrument resumes operation.
This cycle repeats until the fault is resolved.
The specific steps are as follows:
The temperature limit set value should be greater than or equal to (SV + AL) + (2~5)°C

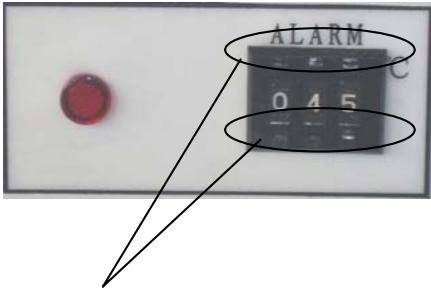

See Figure 4. Use the + and — buttons on the over-temperature setting dial on the panel to set the required temperature limit.
Example: SV=37°C, AL=2, then 42°C should be set (i.e., dial set 042).
Set button
Figure 4
Product maintenance and precautions
1. Product storage conditions
Ambient temperature: (-40~+55°C)
Relative humidity: ≤95% (25°C)
Atmospheric pressure: (50~106) Kpa
2. Methods to remove moisture
If the equipment will not be used for a long time, unplug the power cord to prevent injury;
Regularly (usually in the first quarter), power on and heat up according to usage conditions for 5 hours to remove moisture from electrical components and avoid damaging related components;
Set the temperature to 40°C and open the door every two hours to release moisture;
After processing, unplug the power cord and dry the moisture inside the box for storage.
3. Defrost treatment
When the equipment operates below 5°C or at temperatures below ambient temperature for extended periods;
When cooling performance is not ideal (slow cooling or static error);
According to Clause 3.1, regular "defrosting" should be performed: set to 40°C and let the equipment operate for more than 3 hours;
After defrosting, reset the required parameters and start operation.
After use, turn off the main circuit power and wipe off the moisture inside the chamber.
Before reuse or when process requirements change, temperature control accuracy verification should be conducted. (See relevant sections)
Except for parameters such as TIME and SET, other control parameters require approval from our service center or are adjusted by professionals.
Appendix
1. Technical Specifications
This product is manufactured according to the company standard Q/TIWY 11
Table 1
| Serial number | Model specifications | BPC-70F | BPC-150F | BPC-250F |
| 1 | Power supply | (220±22) V (50±1)Hz | ||
| 2 | Temperature control range | 0°C ~ 60°C | ||
| 3 | Temperature resolution | 0.1°C | ||
| 4 | Temperature fluctuation | ±0.5°C | ||
| 5 | Inner Pot Dimensions (mm) | 400×450×500 | 500×470×800 | 520×560×1050 |
| 6 | Dimensions (mm) | 510×530×970 | 650×620×1350 | 670×740×1590 |
| 7 | Cargo shelves | Two pieces | Three pieces | Three pieces |
| 8 | Refrigerants | R134a | ||
| 9 | Input Power (W) | 500 | 700 | 850 |
2. Functional parameter tables
1) Menu B: Press and hold the OK key. When the LCD shows LK, enter the password and press OK to enter the settings;
Table 2
| Prompt | Name | Set the range | Explanation | Factory value |
| KA | Power-on mode | 0~3 | 1 When KA=0, the controller is in a stopped state after powering on, and must be started and running by long-pressing the start/stop button; 2 When KA=1, the controller automatically starts after powering on; 3 When KA=2, the controller starts operating from the last power cut-off point | |
| SE | Ambient temperature correction | -19.9-80.0 | If the ambient temperature is inaccurate from the actual ambient temperature, correct the value to match it. | / |
| Pb | Zero position adjustment | -100.0~100.0 | When the controller's zero error is large and the fullness error is small, adjust this value; generally, Pt100 rarely adjusts this value. | |
| Pk | Full level adjustment | -1000~1000 seconds | When the controller's zero error is small and the fullness error is large, this value can be adjusted. |
2) Menu C: Press and hold the OK key. When the LCD screen shows LK, enter the password and press OK to enter the settings;
Table 3
| Prompt | Name | Set the range | Explanation | Factory value |
| AL | Alarm settings | 0~100.0°C | When the measured temperature exceeds the "set temperature + AL" value, the over-temperature alarm indicator lights up and cuts off the heating output | |
| CL | Refrigeration control settings | 0.0~100.0 | When the temperature exceeds the "set temperature + CL" and meets the compressor cooling delay time, the refrigeration indicator light turns on, the refrigeration contacts are connected, and the compressor is started | |
| Ct | Cooling control delay | 0~3600 (seconds) | The delay time required for two consecutive compressor starts is Ct=0 to cancel the compressor function | |
| P | Scale band | 1.0~300.0 | Proportional action adjustment: the larger the P, the smaller the proportional effect, the lower the system gain, acting only on the heating side. | |
| I | Scoring time | 10~3600S | The time constant for the effect of integrals, the larger I, the weaker the integral. | |
| d | Differential time | 0~3600S | The time constant of differential action: the larger d, the stronger the differential action, and it can overcome overshoot (D=0 PI control) | / |
| Ar | Overshoot suppression | 0~100% | Used to suppress overshoot (Ar is determined as: 1.5~2 times steady-state output duty cycle) | |
| t | Control cycle | 1~300S | The thyristor output is generally 2~3 seconds. For devices with large remaining power, increasing T can reduce the static difference of PID control. |
※ Products undergo strict testing before leaving the factory. When technical specifications meet requirements and work normally, generally no corrections are required.
3. Printer Instructions (Optional)

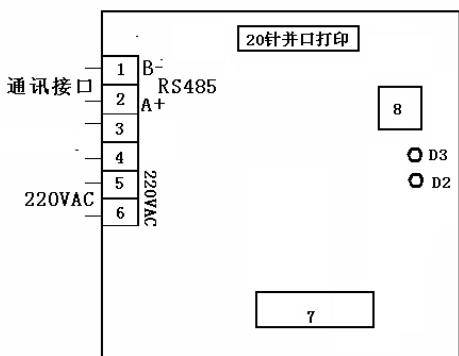

Wiring diagram and indicator light description:
Wiring instructions:
Terminals 1 and 2 are communication interfaces (connected to the instrument's communication port), terminals 5 and 6 connect to a 220V power supply, 7 is the debugging interface, and 8 is the print test button (click to print test information).
Indicator light description:
D3. Printer online indicator: off means the printer is online; flashing means the printer is faulty or offline.
D2. Communication indicator: On means communication failed; off means communication was successful.
Press and hold the OK key for more than 4 seconds to enter and find the LK code, set LK to 88, then press and hold the "OK" key to enter print parameter settings:
Table 4
| Meaning | Parameter name | Explanation |
| Print interval time setting | Pt | YLPrint-110/112: 0~240min. If it is 0, cancel printing. YLPrint-111: 0~9999 seconds. If it is 0, cancel printing. To protect printers from printing frequently, if Pt<10 seconds is used, the default is 10 seconds. To change Beijing time, you need to set Pt>60 to Beijing time. After completing the modification, change to the desired print time. |
| Read the lower limit range of the data | PL | 0~65°C |
| Read data with upper range limits | PH | 0~65°C |
| Year | yr | Set the time year for example: 2011 then yr=11, e.g., 2018 then yr=18 |
| month | MH | Set the time and month |
| Day | dy | Set the time and date |
| hours | Hr | Time hour setting |
| minutes | Mt | Time and minute settings |
| Time is written | on | When the modification is complete, make on = 1; Press OK to exit user parameters. |
4. Troubleshooting
Table 5
| Fault phenomena | Speculation on the cause of the fault | Troubleshooting methods |
| No power on (indicator light not on) | The power outlet has no power or poor contact with the plug | Repair |
| The box's power cord is broken or not properly plugged in | Repair and replug | |
| Power switch is broken (or not turned on) | Replace or turn on the power switch | |
| The fuse blows | If the motor burns out after replacement, check whether the motor or other components are short circuited (if the motor is faulty, there may be odors or blackened wires) or the casing (insulation resistance is zero). Repair it before restarting the machine. | |
| The instrument panel shows no display | Wiring is detached or instrument panel is burned out | Reconnect the wires or replace the instruments |
| The instrument display "☐☐☐☐" | Sensor Faulty or Broken Wiring (Detached) | Repair or replace Pt100 (100Ω at 0°C, 0.3Ω/°C) |
| The temperature value exceeds the control range | Use appropriate temperature values within the specified range | |
| No cooling | The selector switch is in the wrong position | Set the correct position |
| Compressor failure, pipeline blockage, or R134a leak | Replace, remove blockages, and add R134a | |
| Compressor overheat protector activated | Wait for the compressor temperature to drop and then naturally recover | |
| Compressor protector burnt out (with a burnt smell) | Replace the protector | |
| Temperature loss of control | The bidirectional thyristor is broken down and has no heated pattern | Replacement (Model: BTA16) |
| The thermostat was broken | Replace the thermometer | |
| No Heating (PV<SV) | Thermostat broken (no display) | Replace the thermostat |
| There is a heating output graphic | Switch heaters or BTA16 thyristors | |
| No heating output graphic | Replace the thermostat | |
| It uses a timer function, where the temperature rises and then falls | Set TIME≠0 to reset the time time | |
| Large temperature control errors or static errors | Fan broken (not running) | Replace the fan |
| Pt100 has poor contact, increasing resistance | Rewire | |
| The parameter (Pb, Pk) is set incorrectly | Reset | |
| Incorrect settings for parameters such as PID | Readjust parameters | |
| Excessive frost in the condenser results in low cooling power | Heating and defrosting (set to 40°C, operating for more than 3 hours) | |
| Abnormal or loud fan noise | The fan is faulty or the compressor fan is faulty | Replace the fan |

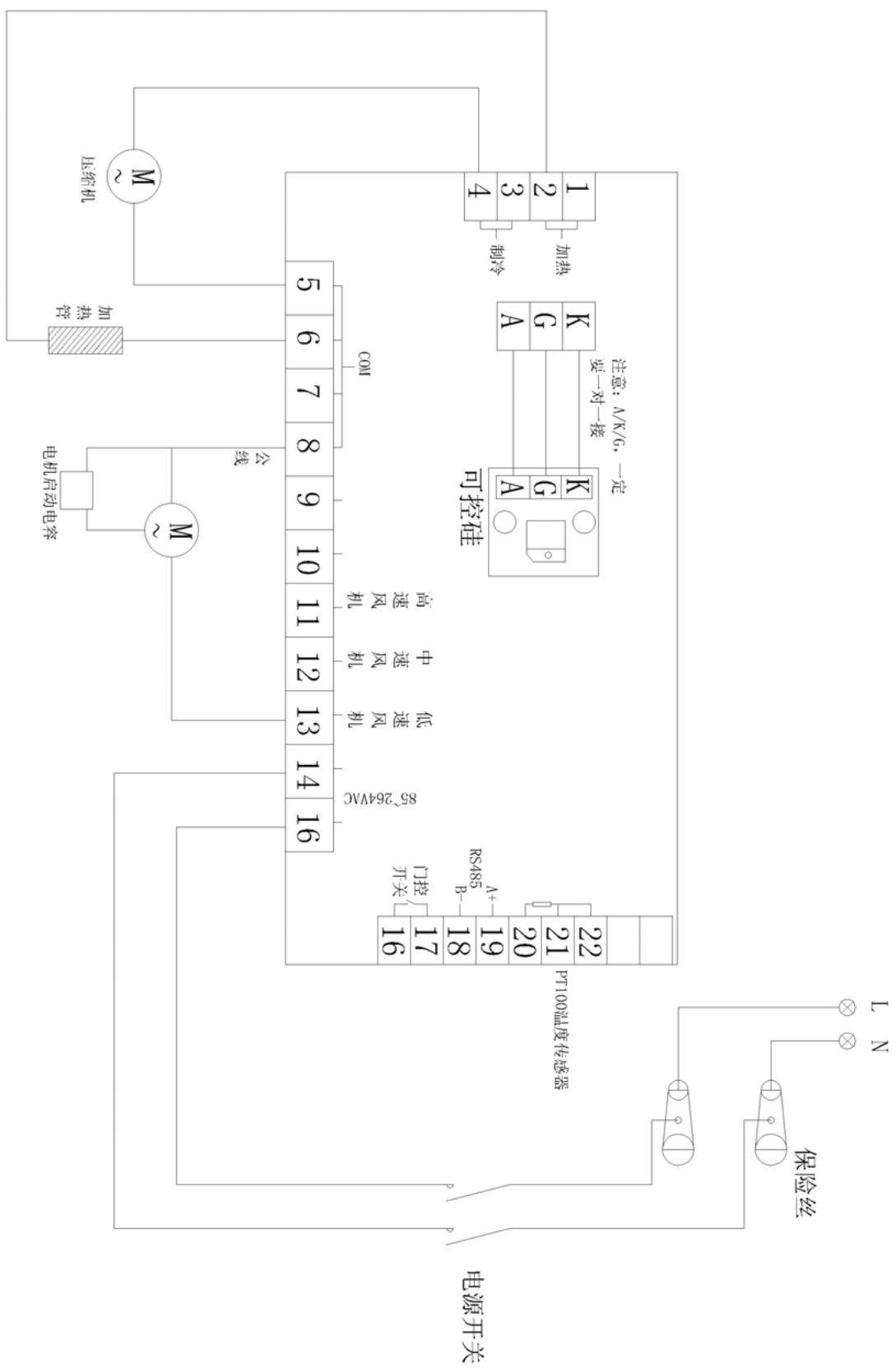

5. Wiring schematic
(No changes will be noticed)
Packing list
Product Name: Biochemical Incubator
| Serial number | Category | Name | Unit | Quantity | Note |
| 1 | Documents | User manual | portion | 1 | |
| 2 | Documents | Packing list | portion | 1 | |
| 3 | Documents | Guarantee letter | portion | 1 | |
| 4 | Documents | Warranty card | portion | 1 | |
| 5 | Spare parts | Fuse | Only | 2 | |
| 6 | Accessories | Shelf | Block | 3 | Only two BPC-70F units |
| 7 | Optional accessories | Printing paper | Volume | 1 |
- 1YIHENG MP MPG-H heating circulation tank instruction manual
- 2YIHENG MP MPG-C Refrigeration and Heating Circulation Tank Instruction Manual
- 3YIHENG DKZ Thermostatic water bath instruction manual
- 4YIHENG HWS Water bath instruction manual
- 5YIHENG THZ series thermostatic foster Shaker instruction manual
- 6YIHENG DKZ-C Thermostatic water bath instruction manual
- 7YIHENG THZ-300/C thermostatic foster Shaker instruction manual
- 8YIHENG THZ series thermostatic Shaker instruction manual
- 9YIHENG BPZ-Series Vacuum oven instruction manual
- 10YIHENG DZF series Vacuum oven instruction manual
